Engine - Briggs

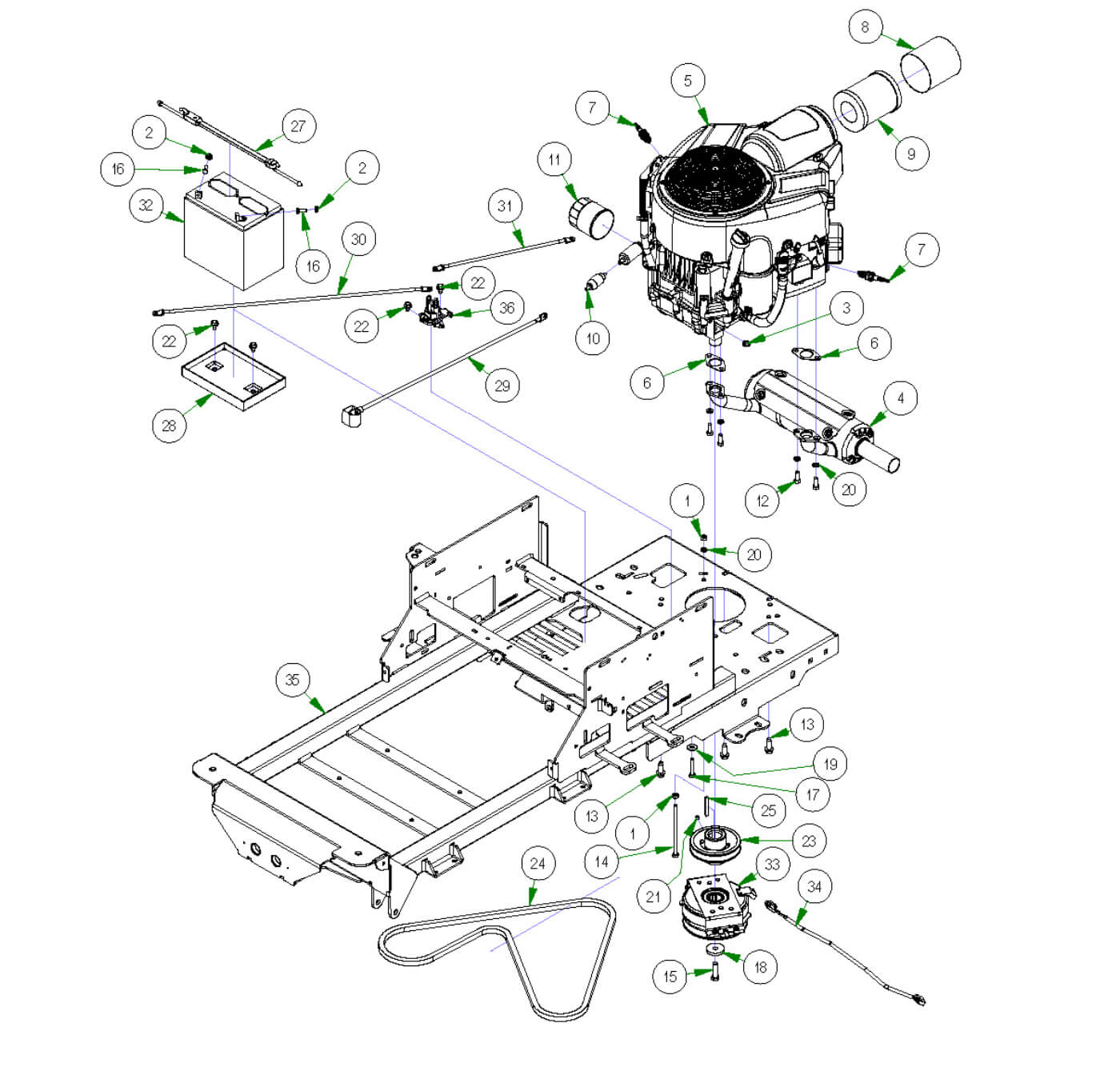

Parts Index
- 1 5/16-18 Hex Nuts Zinc (Qty 2)
- 2 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 3 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 4 810cc Vanguard Exhaust (Qty 1)
- 5 Vangaurd 27hp CXI with Out Oil Filter (Qty 1)
- 6 Exhaust Gasket for 015-0077-00 (Qty 2)
- 7 Spark Plug-Kohler/Briggs (Qty 2)
- 8 Pre-Cleaner for Vanguard CXI Engine (Qty 1)
- 9 OBSOLETE USE 063-3003-00 (Qty 1)
- 10 Universal Inline Fuel Filter (Qty 1)
- 11 Briggs Oil Filter (Qty 1)
- 12 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 13 3/8 x 1 1/8 Engine Mounting Bolt (Qty 3)
- 14 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 15 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch (Qty 1)
- 16 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 17 5/16-18x1-3/4 GR 5 Hex Bolts (Qty 1)
- 18 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 19 5/16 USS Flat Washer Zinc (Qty 1)
- 20 5/16 Lock washer Zinc (Qty 5)
- 21 5/16-24 x 1/4 Set Screw (Qty 1)
- 22 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 4)
- 23 4 3/4 Motor Pulley (Qty 1)
- 24 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 25 1/4 X 2 Square Key Stock (Qty 1)
- 26 2023 Battery Hold Down Assembly (Qty 1)
- 27 2023 Rubber Battery Hold Down Strap (Qty 1)
- 28 2023 Battery Tray Only (Qty 1)
- 29 24 inch Black Cable - MZ/ZT (Qty 1)
- 30 24 Red Battery Cable (Qty 1)
- 31 14" Red Battery Cable (Qty 1)
- 32 Battery - All models except Renegade and Revolt (Qty 1)
- 33 Clutch For 1-1/8" Shaft (Qty 1)
- 34 Clutch Pigtail (Qty 1)
- 35 2024 ZT Elite Frame--Orange (Qty 1)
- 36 Solenoid (752-1251-210HP) (Qty 1)
-
1#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
2#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
4#015-0057-00
2017 Compact Outlaw Exhaust 810 Vanguard
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
5#015-0511-00
Vangaurd 27hp CXI with Out Oil Filter
Qty Used: 1Regular price $2,699.99 USDRegular priceUnit price per
-
6#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
7#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
8#063-1000-00
Pre-Cleaner for Vanguard CXI Engine
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
9#063-1005-00
OBSOLETE USE 063-3003-00
Qty Used: 1Regular price $30.45 USDRegular priceUnit price per
-
10#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
11#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
12#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
13#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
14#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
15#018-5450-21
7/16-20 x 1.5\" Hex bolt GR 8 w/ Patch
Qty Used: 1Regular price $1.25 USDRegular priceUnit price per
-
16#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
17#018-8059-00
5/16-18x1-3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
18#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
19#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
20#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
21#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
22#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
23#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
24#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
25#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
26#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
27#043-8930-00
2023 Rubber Battery Hold Down Strap
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
28#043-8931-00
2023 Battery Tray Only
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
29#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
30#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
31#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
32#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
34#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
35#070-2402-00
2024 ZT Elite Frame--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
36#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
