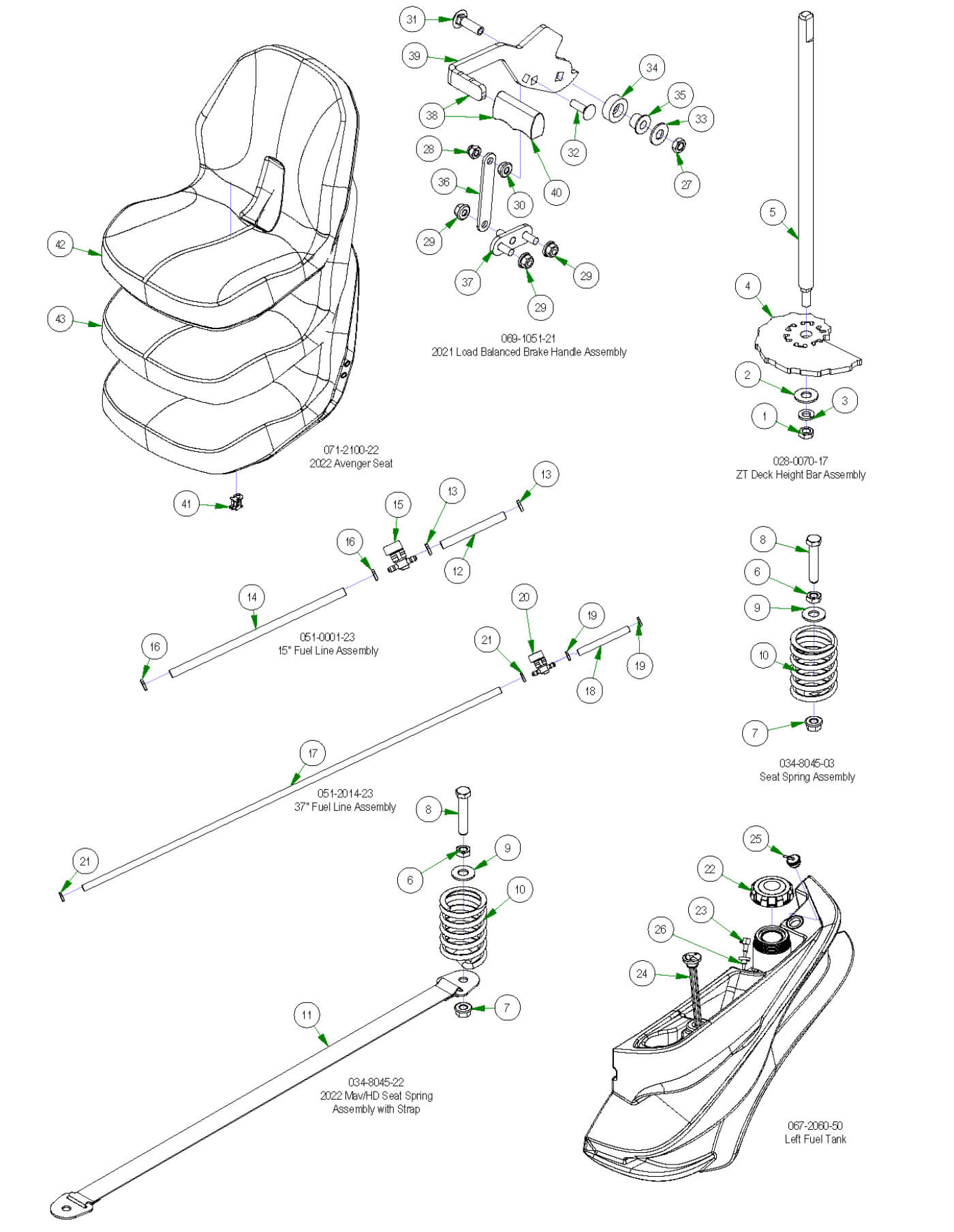

Frame Subassemblies
Parts Index
- 1 3/8-24 Hex Nut Zinc (Qty 1)
- 2 3/8 USS Flat Washer Zinc (Qty 1)
- 3 3/8 Lockwasher Zinc (Qty 1)
- 4 Deck Height Cam Plate (Qty 1)
- 5 2017 Deck Height Dial Rod ZT (Qty 1)
- 6 3/8-16 Half Jam Nut (Qty 1)
- 7 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 8 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 9 3/8 USS Flat Washer Zinc (Qty 1)
- 10 Seat Spring (Qty 1)
- 11 Seat Strap with Buckles (Qty 1)
- 12 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 13 1/4 Fuel Line Clamp (Qty 2)
- 14 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 15 2 Way Fuel Shut-Off Valve (Qty 1)
- 16 1/4 Fuel Line Clamp (Qty 2)
- 17 33" 1/4 Fuel Line No Clamp (Qty 1)
- 18 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 19 1/4 Fuel Line Clamp (Qty 2)
- 20 2 Way Fuel Shut-Off Valve (Qty 1)
- 21 1/4 Fuel Line Clamp (Qty 2)
- 22 3.5" Tethered Fuel Cap (Qty 1)
- 23 Fuel Line Pickup Tube for ZT (Qty 1)
- 24 Fuel Gauge w/ Grommet (Qty 1)
- 25 Rollover Valve and Grommet New (Qty 1)
- 26 Grommet for ZT Elite Fuel Line (Qty 1)
- 27 3/8-16 Centerlock Half Nut (Qty 1)
- 28 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 29 5/16-18 Nylon Flange Nut (Qty 3)
- 30 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 31 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 32 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 33 3/8 USS Flat Washer Zinc (Qty 1)
- 34 Brake Lever Spacer (Qty 1)
- 35 Bronze Bushing SF-1220-8 (Qty 1)
- 36 Brake Cable Extension Plate (Qty 1)
- 37 Brake Load Balancer Weldment (Qty 1)
- 38 Load Balanced Brake Handle With Grip (Qty 1)
- 40 Brake Handle Rubber (Qty 1)
- 41 OBSOLETE USE 071-5065-07 (Qty 1)
- 42 Bad Boy SK130 Avenger Cover for 071-2100-22 (Qty 1)
- 43 2021 Avenger Seat (Qty 1)
-
1#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
2933#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
3#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
4#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
5#028-0014-00
2017 Deck Height Dial Rod ZT
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
6#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
7#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
8#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
10#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
11#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
121418#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
13161921#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
1520#067-6057-00
2 Way Fuel Shut-Off Valve
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
17#051-2014-01
33" 1/4 Fuel Line No Clamp
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
22#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
23#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
24#067-4090-00
Fuel Gauge w/ Grommet
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
25#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
26#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
27#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
28#013-8042-00
5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
29#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
30#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
31#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
32#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
34#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
35#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
36#039-0170-00
Brake Cable Extension Plate
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
37#039-0171-00
Brake Load Balancer Weldment
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
38#069-1051-00
Load Balanced Brake Handle With Grip
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
40#069-3010-00
Brake Handle Rubber
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
41#071-1004-00
OBSOLETE USE 071-5065-07
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
42#071-2108-00
Bad Boy SK130 Avenger Cover for 071-2100-22
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
43#071-2100-00
2021 Avenger Seat
Qty Used: 1Regular price $529.99 USDRegular priceUnit price per
