Engine - Kohler

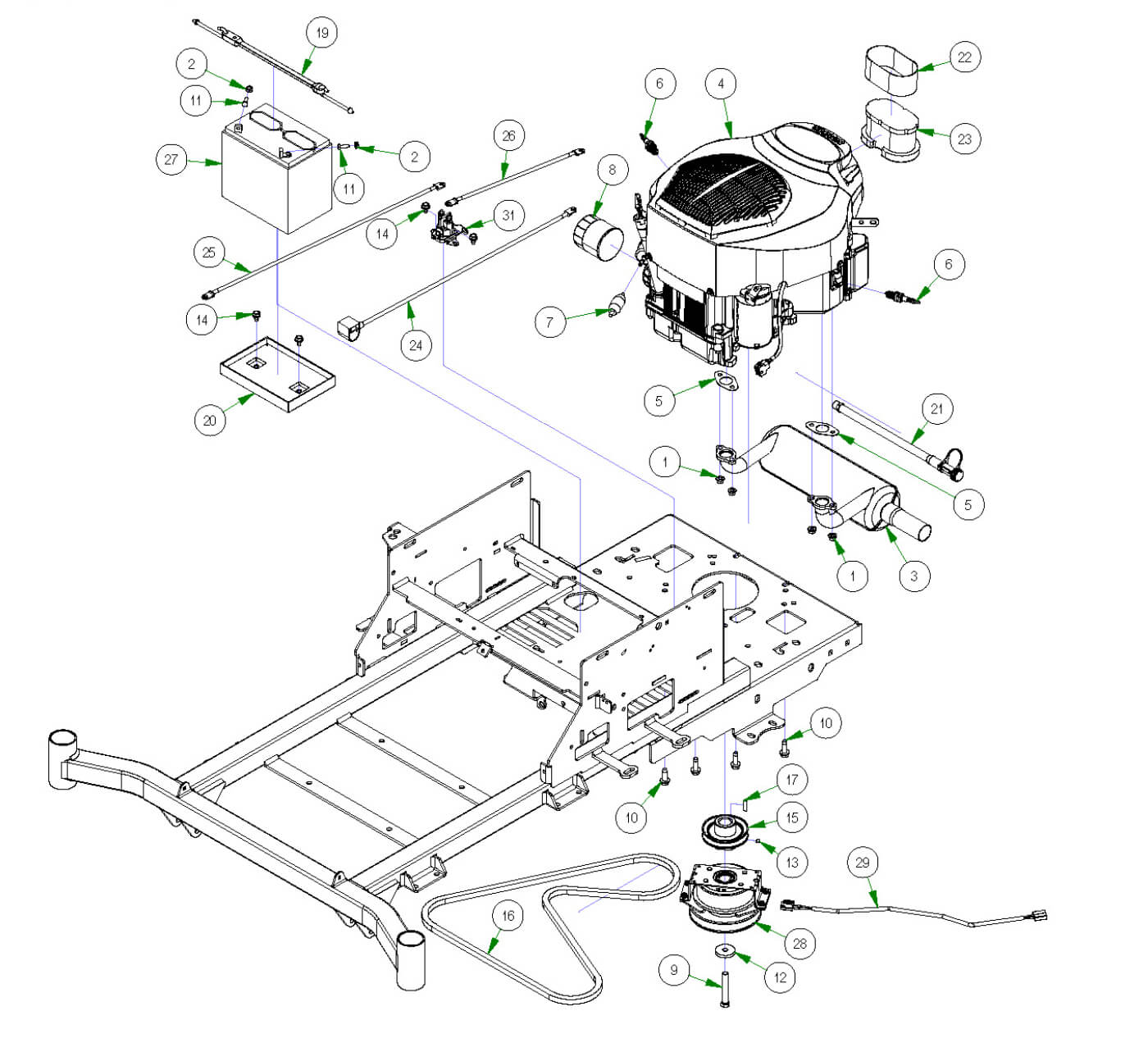

Parts Index
- 1 M8 Nut fits the 015-9990-00/015-9991-00 (Qty 4)
- 2 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 3 2017 Kohler Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 4 KT745 Kohler Engine (Qty 1)
- 5 Exhaust Gaskets for 27,30 hp (Qty 2)
- 6 Spark Plug-Kohler/Briggs (Qty 2)
- 7 25/26 HP Koh Fuel Filter ZT/MZ (Qty 1)
- 8 25 HP Kohler Oil Filter ZT/MZ (Qty 1)
- 9 7/16-20x3” Hex Bolt GR 8 W/ Patch (Qty 1)
- 10 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 11 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 12 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 13 5/16-24 x 1/4 Set Screw (Qty 1)
- 14 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 4)
- 15 3 3/4 Motor Pulley-2009 MZ (Qty 1)
- 16 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 17 1/4 x 1 Square Key (Qty 1)
- 18 2023 Battery Hold Down Assembly (Qty 1)
- 19 2023 Rubber Battery Hold Down Strap (Qty 1)
- 20 2023 Battery Tray Only (Qty 1)
- 21 Kohler Oil Drain Hose (Qty 1)
- 22 25/26 HP Koh Precleaner ZT/MZ (Qty 1)
- 23 25/26 HP Koh Air Filter ZT/MZ (Qty 1)
- 24 24 inch Black Cable - MZ/ZT (Qty 1)
- 25 24 Red Battery Cable (Qty 1)
- 26 14" Red Battery Cable (Qty 1)
- 27 Battery - All models except Renegade and Revolt (Qty 1)
- 28 Clutch For 1" Shaft (Qty 1)
- 29 Clutch Pigtail (Qty 1)
- 31 Solenoid (752-1251-210HP) (Qty 1)
-
1#013-8240-00
M8 Nut fits the 015-9990-00/015-9991-00
Qty Used: 4Regular price $6.69 USDRegular priceUnit price per
-
2#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#015-0051-00
2017 Kohler Exhaust MZ/ZT/Mav/Compact Outlaw
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
4#015-2017-00
KT745 Kohler Engine
Qty Used: 1Regular price $2,399.99 USDRegular priceUnit price per
-
5#015-2751-00
Exhaust Gaskets for 27,30 hp
Qty Used: 2Regular price $5.96 USDRegular priceUnit price per
-
6#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-

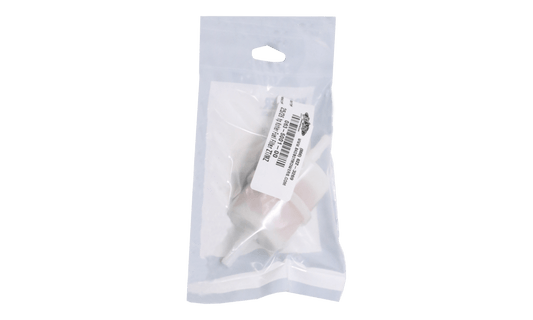

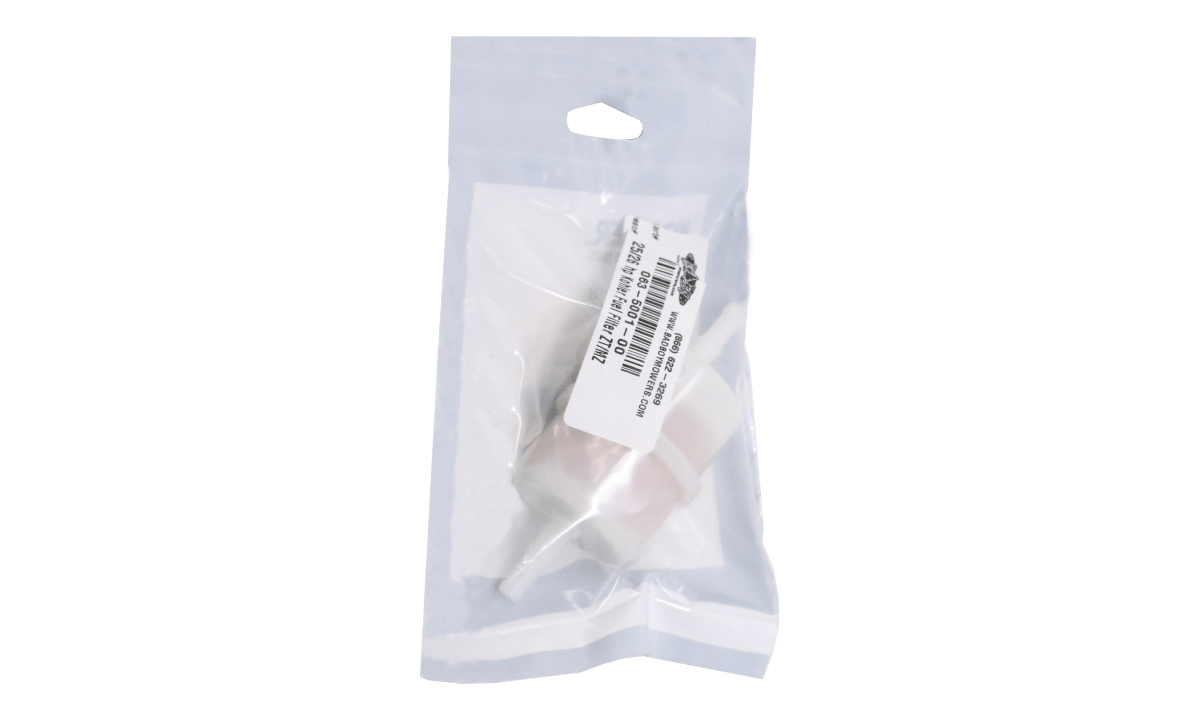

7#063-5001-00
25/26 HP Koh Fuel Filter ZT/MZ
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
8#063-5004-00
25 HP Kohler Oil Filter ZT/MZ
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
9#018-0007-21
7/16-20x3” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
10#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
11#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
12#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
13#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
14#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
15#033-2010-00
3 3/4 Motor Pulley-2009 MZ
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
16#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
17#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
18#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
19#043-8930-00
2023 Rubber Battery Hold Down Strap
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
20#043-8931-00
2023 Battery Tray Only
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
21#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
22#063-5002-00
25/26 HP Koh Precleaner ZT/MZ
Qty Used: 1Regular price $7.95 USDRegular priceUnit price per
-
23#063-5003-00
25/26 HP Koh Air Filter ZT/MZ
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
24#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
25#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
26#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
27#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
28#070-0055-00
Clutch For 1\" Shaft
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
29#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
31#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
