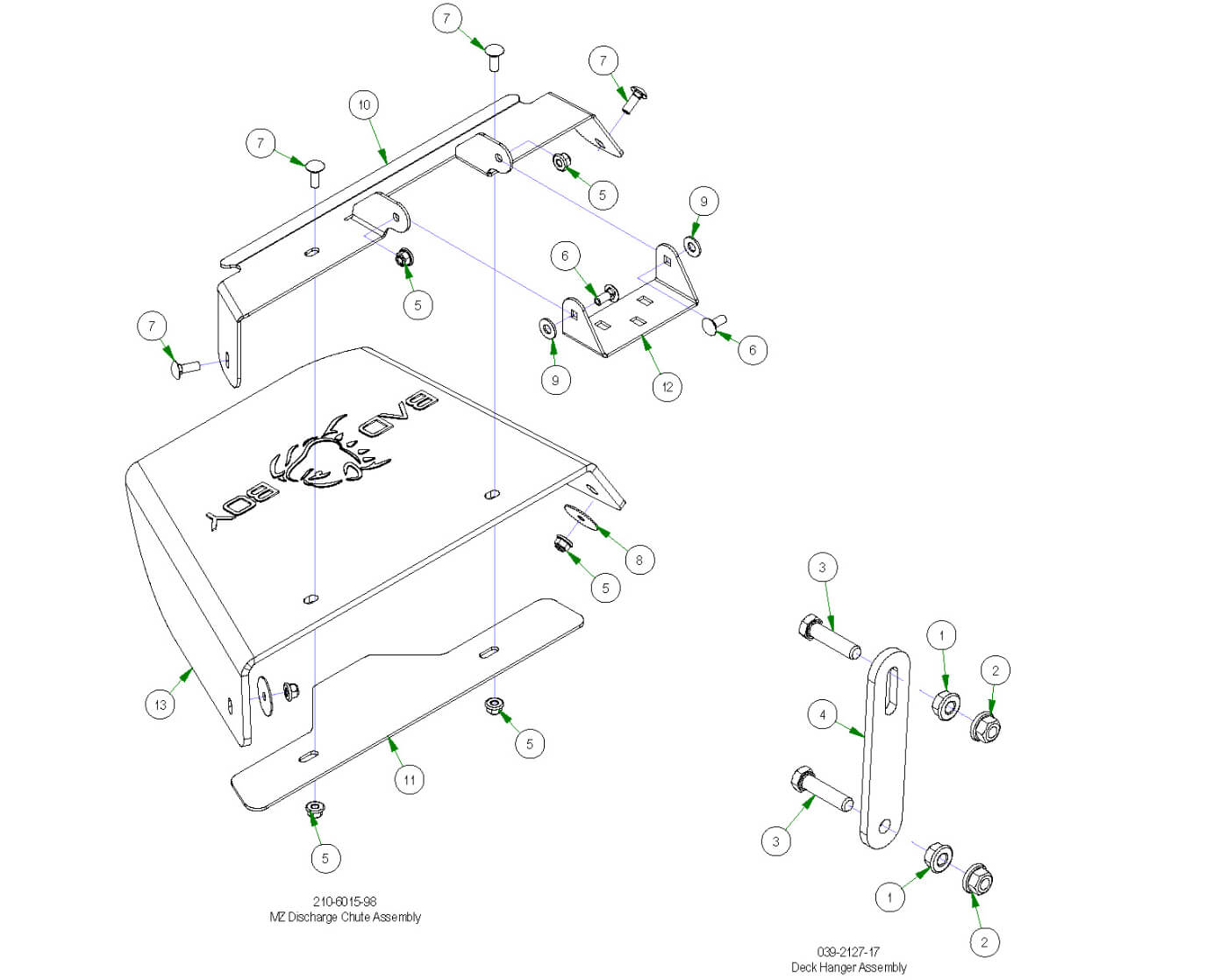

Discharge Chute & Deck Hanger Assembly
Parts Index
- 1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 2 3/8 Nylock Flange Nut (Qty 2)
- 3 3/8 x 1 1/2 Bolt (Qty 2)
- 4 Deck hanger for 039-2127-17 (Qty 1)
- 5 5/16-18 Nylon Flange Nut (Qty 6)
- 6 5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5) (Qty 2)
- 7 5/16 x 7/8 Carriage Bolt (Qty 4)
- 8 5/16" Fender Washer (Qty 2)
- 9 .360 ID Plastic Washer (Qty 2)
- 10 Discharge Chute Bracket 48 MZ (Qty 1)
- 11 OBSOLETE USE 039-4890-00 (Qty 1)
- 12 Chute Hanger 48 MZ (Qty 1)
- 13 2017 MZ Discharge Chute Rubber (Qty 1)
-
1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
3#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
4#039-2127-00
OBSOLETE USE 039-2127-17
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
5#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
6#018-8062-00
5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5)
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
7#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
8#019-0002-00
5/16" Fender Washer
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
9#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
10#039-4891-00
Discharge Chute Bracket 48 MZ
Qty Used: 1Regular price $33.11 USDRegular priceUnit price per
-
11#039-4892-00
OBSOLETE USE 039-4890-00
Qty Used: 1Regular price $33.11 USDRegular priceUnit price per
-
12#206-6020-00
Chute Hanger 48 MZ
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
13#210-6014-00
2017 MZ Discharge Chute Rubber
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
