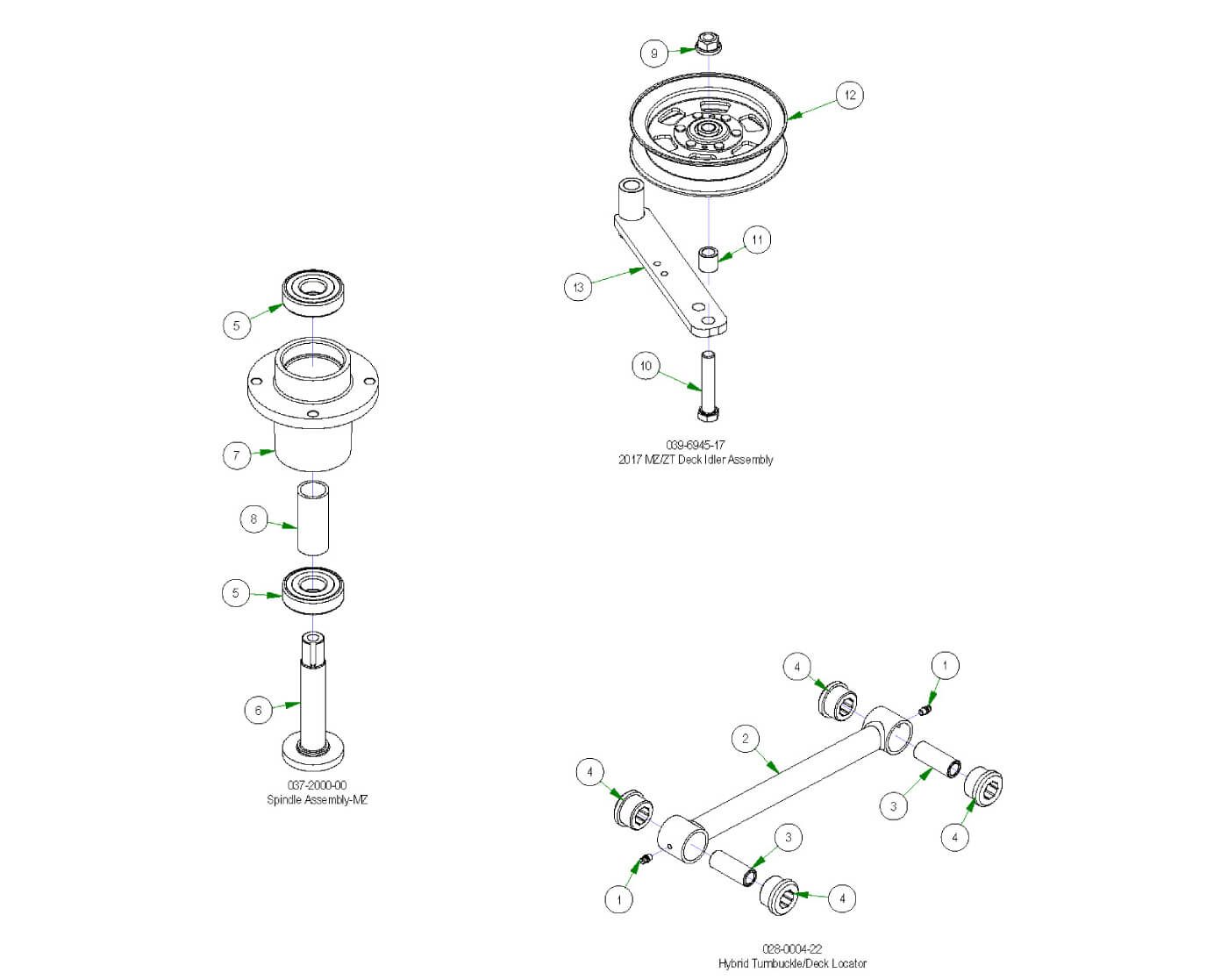

Deck Subassemblies
Parts Index
- 1 1/4-28 Threaded Grease Fitting (Qty 2)
- 3 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 4 2018 Maverick Topllink Bushing (Qty 4)
- 5 MZ Spindle Bearing (Qty 2)
- 6 mz spindle shaft (Qty 1)
- 7 MZ Spindle Housing (Qty 1)
- 8 MZ Spindle Spacer-Component (Qty 1)
- 9 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 10 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 11 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 12 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 13 Idler Bracket (Qty 1)
-
1#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 2Regular price $0.50 USDRegular priceUnit price per
-
3#048-6004-00
2018 Maverick Topllink Bushing Sleeve
Qty Used: 2Regular price $10.55 USDRegular priceUnit price per
-
4#048-6005-00
2018 Maverick Topllink Bushing
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
-
5#037-6024-00
MZ Spindle Bearing
Qty Used: 2Regular price $32.10 USDRegular priceUnit price per
-
6#037-6025-00
mz spindle shaft
Qty Used: 1Regular price $56.99 USDRegular priceUnit price per
-
7#037-6027-00
MZ Spindle Housing
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
8#037-6028-00
MZ Spindle Spacer-Component
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
9#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
10#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
11#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
12#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
13#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
