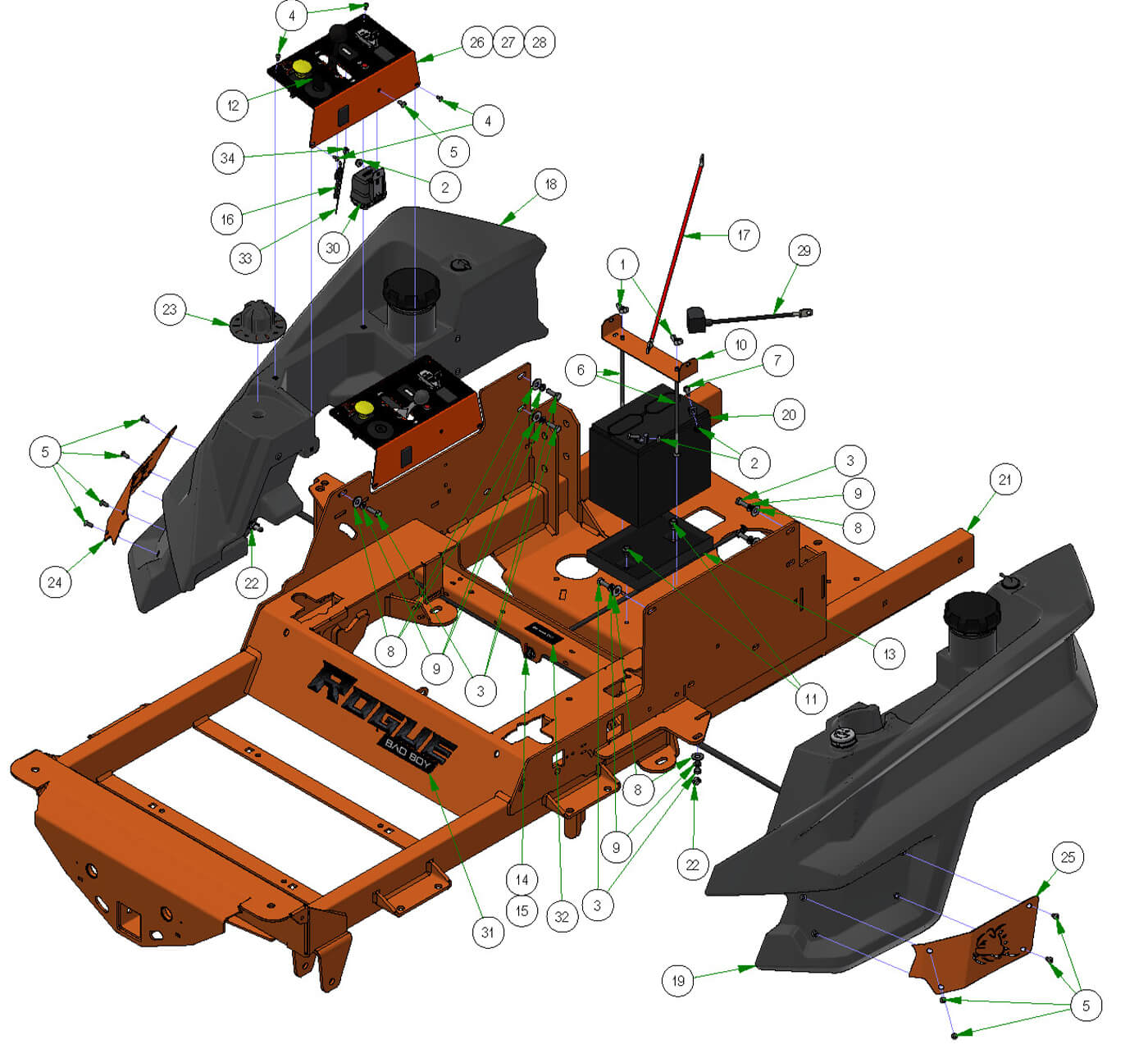

Tanks & Battery
Parts Index
- 1 1/4-20 Wing Nuts Zinc (Qty 2)
- 2 1/4-20 Hex Flange Nuts Zinc w/ (Qty 3)
- 3 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 8)
- 4 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 5 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 9)
- 6 1/4-20 X 8 Carriage Bolts Zinc (Qty 2)
- 7 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 8 5/16 USS Flat Washer Zinc (Qty 8)
- 9 5/16 Lock washer Zinc (Qty 8)
- 10 Battery Hold Down Plate--Orange (Qty 1)
- 11 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 2)
- 12 Ignition Key (Qty 1)
- 13 2023 Battery Tray Only (Qty 1)
- 16 Rebel Rogue Renegade Throttle Cable ONLY (Qty 1)
- 17 24 Red Battery Cable (Qty 1)
- 18 2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS) (Qty 1)
- 19 2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS) (Qty 1)
- 20 Battery - All models except Renegade and Revolt (Qty 1)
- 21 2023 Rogue Frame--Orange (Qty 1)
- 22 12.5mm/15mm OETIKER 2 Ear Clamp (Qty 2)
- 23 Deck Height Dial (2 - 6) (Qty 1)
- 24 Fuel Tank Insert--RH--Orange (Qty 1)
- 25 Fuel Tank Insert--LH--Orange (Qty 1)
- 26 Rogue/Rebel EFI Control Panel Assy (Qty 1)
- 27 Rebel/Rogue Control Panel Assy (Qty 1)
- 29 Rebel, Rogue Ground Wire (Qty 1)
- 30 2019 Harness-Rebel/Rogue harness-No Display (Qty 1)
- 31 MY24 Rogue Back Plate & Front Decal (Qty 1)
- 32 R-Series Shut Off Valve Decal (Qty 1)
- 33 16 Gauge Wire - Tachometer (Qty 1)
- 34 Female Terminal End (Qty 1)
-
1#013-8051-00
1/4-20 Wing Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
2#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
3#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
4#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
5#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 9Regular price $0.69 USDRegular priceUnit price per
-
6#018-8050-00
1/4-20 X 8 Carriage Bolts Zinc
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
7#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
8#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
9#019-8051-00
5/16 Lock washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
10#026-0312-00
Battery Hold Down Plate--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
11#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
12#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
13#043-8931-00
2023 Battery Tray Only
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
16#055-8021-75
Rebel Rogue Renegade Throttle Cable ONLY
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
17#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
18#067-9950-50
2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
19#067-9960-50
2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
20#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
21#070-2305-00
2023 Rogue Frame--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
22#072-8076-00
12.5mm/15mm OETIKER 2 Ear Clamp
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
23#077-9001-00
Deck Height Dial (2 - 6)
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
24#079-3290-00
Fuel Tank Insert--RH--Orange
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
25#079-3291-00
Fuel Tank Insert--LH--Orange
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
No sequence found for SKU:
Rogue/Rebel EFI Control Panel Assy
Regular price $0.00 USDRegular priceUnit price per
-
27#079-3481-19
Rebel/Rogue Control Panel Assy
Qty Used: 1Regular price $109.00 USDRegular priceUnit price per
-
29#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
30#086-2050-19
2019 Harness-Rebel/Rogue harness-No Display
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
31#091-0516-00
MY24 Rogue Back Plate & Front Decal
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
No sequence found for SKU:
R-Series Shut Off Valve Decal
Regular price $0.00 USDRegular priceUnit price per
-
33#216-1000-00
16 Gauge Wire - Tachometer
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
34#216-1051-00
Female Terminal End
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
