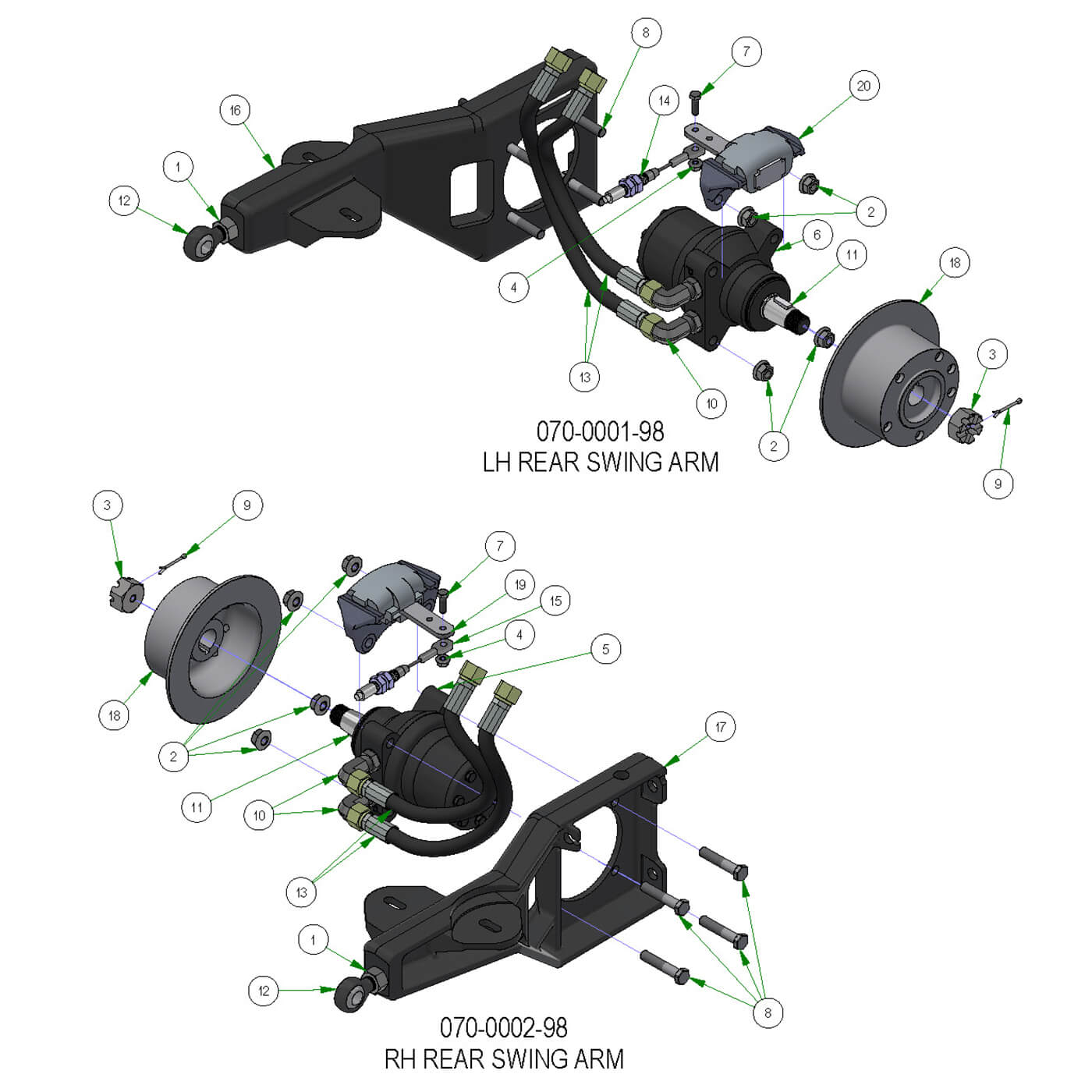

Rear Swing Arms
Parts Index
- 1 3/4"-16 Fine Full Nut (Qty 2)
- 2 1/2-13 Gr 8 Centerlock Flange Nut (Qty 8)
- 3 OBSOLETE USE 013-7055-00 (Qty 2)
- 4 5/16-18 Nylon Flange Nut (Qty 2)
- 5 18ci Parker Wheel Motor-Right (Qty 1)
- 6 18ci Parker Wheel Motor - Left (Qty 1)
- 7 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 8 1/2-13 x 2.75 Gr.8 Hex Head Bolt (Qty 8)
- 9 1/8 X 1 1/2 Cotter Pins Zinc (Qty 2)
- 10 2019 Rogue/Renegade Wheel Motor 90* Fitting (Qty 4)
- 11 Woodruff Key-Wheel Motor (Qty 2)
- 12 Heim 3/4" RH (Qty 2)
- 13 2019 Rogue Hydro-Hose 20"-10 (Qty 4)
- 14 2019 Short Brake Cable-Suspension Models (Qty 1)
- 15 2019 Long Brake Cable-Renegade, Rogue (Qty 1)
- 16 2019 Left Trailing Arm (Qty 1)
- 17 2019 Right Trailing Arm (Qty 1)
- 18 Brake Disc (96-37486) (Qty 2)
- 19 Brake Caliper with Bracket RH (Qty 1)
- 20 Brake Caliper with Bracket LH (Qty 1)
-
1#013-0022-00
3/4"-16 Fine Full Nut
Qty Used: 2Regular price $6.69 USDRegular priceUnit price per
-
2#013-6040-00
1/2-13 Gr 8 Centerlock Flange Nut
Qty Used: 8Regular price $0.99 USDRegular priceUnit price per
-
3#013-7050-00
OBSOLETE USE 013-7055-00
Qty Used: 2Regular price $10.95 USDRegular priceUnit price per
-
4#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#015-4600-00
18ci Parker Wheel Motor-Right
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
6#015-4601-00
18ci Parker Wheel Motor - Left
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
7#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
8#018-6041-00
1/2-13 x 2.75 Gr.8 Hex Head Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
9#020-7022-00
1/8 X 1 1/2 Cotter Pins Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
10#024-2065-00
2019 Rogue/Renegade Wheel Motor 90* Fitting
Qty Used: 4Regular price $17.45 USDRegular priceUnit price per
-
11#042-7041-00
Woodruff Key-Wheel Motor
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
12#048-7001-00
Heim 3/4" RH
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
13#051-6006-00
2019 Rogue Hydro-Hose 20"-10
Qty Used: 4Regular price $43.78 USDRegular priceUnit price per
-
14#064-8054-00
2019 Short Brake Cable-Suspension Models
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
15#064-9002-00
2019 Long Brake Cable-Renegade, Rogue
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
16#070-0001-00
2019 Left Trailing Arm
Qty Used: 1Regular price $291.91 USDRegular priceUnit price per
-
17#070-0002-00
2019 Right Trailing Arm
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
18#092-5201-00
Brake Disc (96-37486)
Qty Used: 2Regular price $119.36 USDRegular priceUnit price per
-
19#092-7000-00
Brake Caliper RH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
20#092-7001-00
Brake Caliper with Bracket LH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
