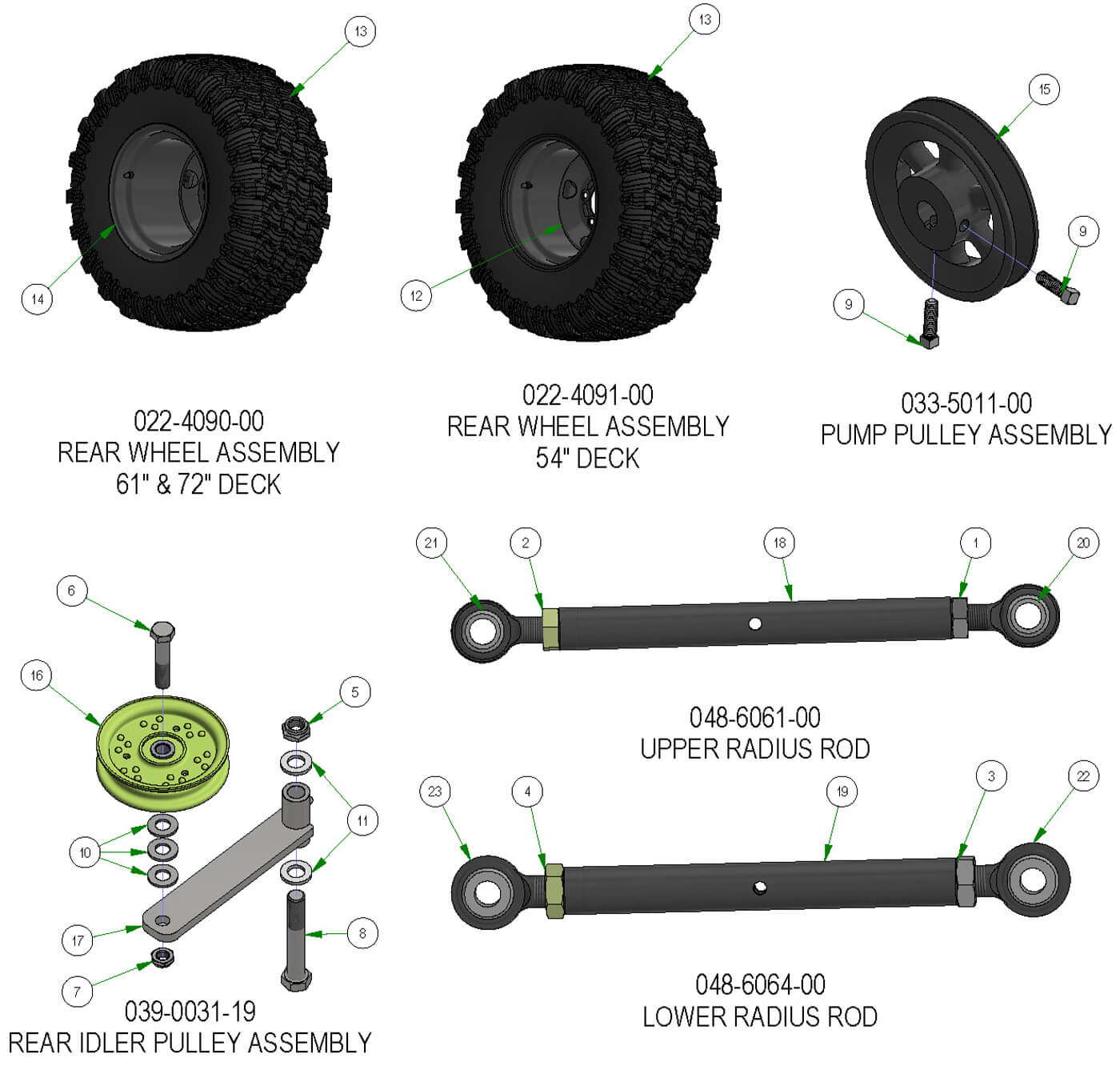

Rear Suspension Subassemblies
Parts Index
- 1 Nut, 5/8-18 RH (Qty 1)
- 2 Nut, 5/8-18 LH (Qty 1)
- 4 3/4 - 16 LH Half Nut (Qty 1)
- 5 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 6 1/2-13 x 2 1/2 Hex Bolt Gr 5 (Qty 1)
- 7 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 8 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 9 5/16-18 X 1 Steel Square-Head Cup-Point Set Screw (Qty 2)
- 10 1/2 SAE Flat Washer GR 8 (Qty 3)
- 11 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 12 2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00 (Qty 1)
- 13 2019 26x12-12 Reaper Turf Tire (Qty 2)
- 14 2019 10.5" Wheel Fits 022-4090-00 (Qty 1)
- 15 Cast Pump Pulley - 17mm Assembly (Qty 1)
- 16 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 17 Drive Tensioner (Qty 1)
- 18 2019 Suspension Link Body-RH and LH Threads (Qty 1)
- 20 Heim 5/8" RH (Qty 1)
- 21 Heim 5/8" LH (Qty 1)
- 22 Hime RH (3/4 body | 5/8 hole) (Qty 1)
- 23 Heim LH (3/4 Body | 5/8 Hole) (Qty 1)
-
1#013-0019-00
Nut, 5/8-18 RH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
2#013-0020-00
Nut, 5/8-18 LH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
4#013-0028-00
3/4 - 16 LH Half Nut
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
5#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
6#018-0015-00
1/2-13 x 2 1/2 Hex Bolt Gr 5
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
7#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
8#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
9#018-8072-00
5/16-18 X 1 Steel Square-Head Cup-Point Set Screw
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
10#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 3Regular price $0.75 USDRegular priceUnit price per
-
11#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
12#022-4070-00
2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00
Qty Used: 1Regular price $131.99 USDRegular priceUnit price per
-
13#022-4085-00
2019 26x12-12 Reaper Turf Tire
Qty Used: 2Regular price $209.99 USDRegular priceUnit price per
-
14#022-4086-00
2019 10.5" Wheel Fits 022-4090-00
Qty Used: 1Regular price $131.99 USDRegular priceUnit price per
-
15#033-5011-00
Cast Pump Pulley - 17mm Assembly
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
16#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
17#039-0031-00
Drive Tensioner
Qty Used: 1Regular price $25.29 USDRegular priceUnit price per
-
18#048-0001-00
2019 Suspension Link Body-RH and LH Threads
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
20#048-6062-00
Heim 5/8" RH
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
21#048-6063-00
Heim 5/8" LH
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
22#048-6065-00
Hime RH (3/4 body | 5/8 hole)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
23#048-6066-00
Heim LH (3/4 Body | 5/8 Hole)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
