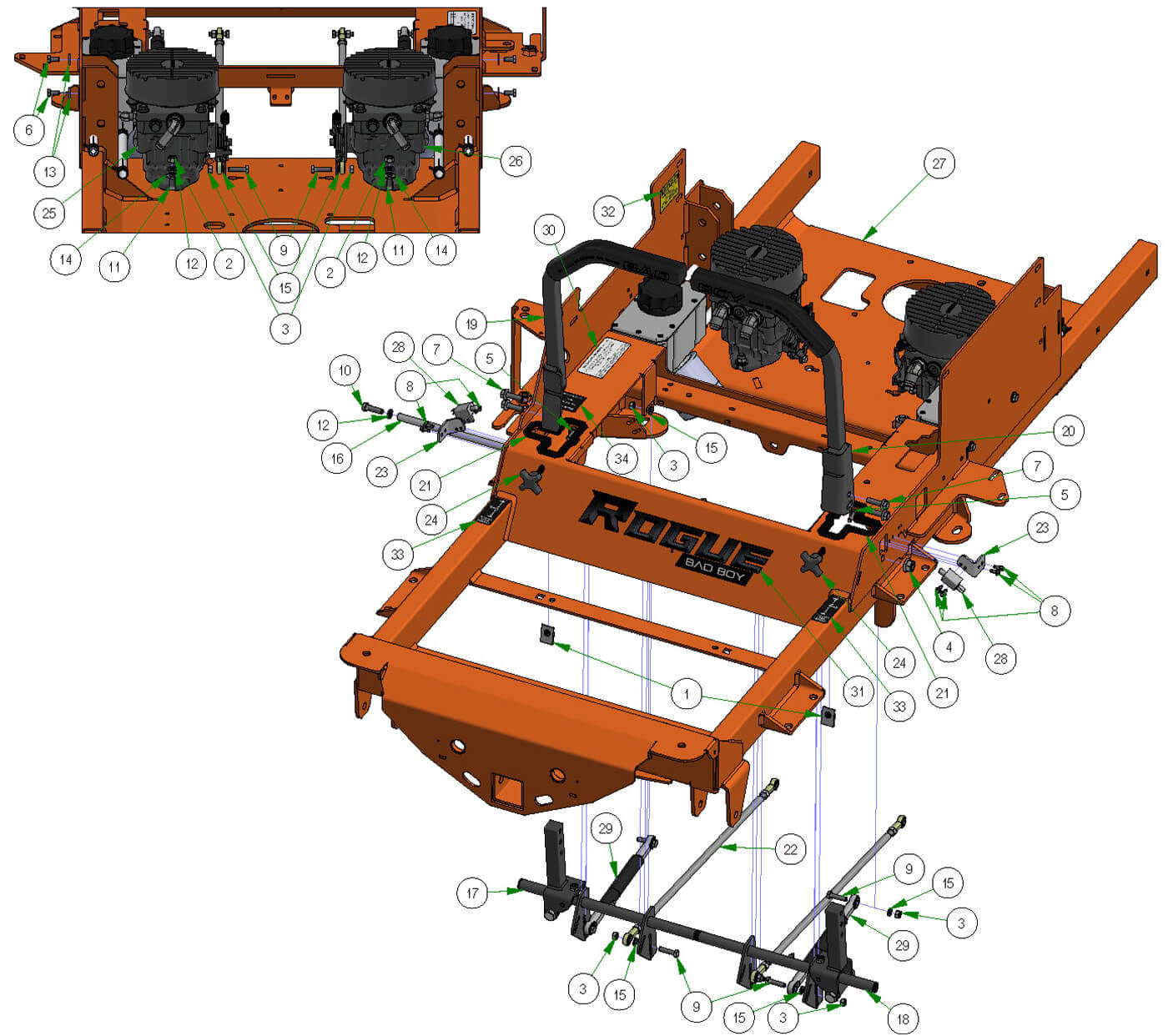

Drive Arm Assembly
Parts Index
- 1 Extruded Nut 3/8"-16 3/4" Hole Center With Patch (Qty 2)
- 2 3/8-16 Hex Nuts Zinc (Qty 4)
- 3 5/16-18 Hex Nuts Zinc (Qty 8)
- 4 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 5 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 6 5/16-18 x 5/8 Hex Bolt (Qty 4)
- 7 3/8"-16 Thread Size, 1" 1/4 Long Grade 5 (Qty 4)
- 8 12-24 x 1/2 HWH Bolt (Qty 8)
- 9 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 10)
- 10 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 11 3/8 x 1 1/2 Bolt (Qty 4)
- 12 3/8 Lockwasher Zinc (Qty 5)
- 13 1/4 USS Flat Washer Zinc (Qty 4)
- 14 5/16 USS Flat Washer Zinc (Qty 4)
- 15 5/16 Lock washer Zinc (Qty 8)
- 16 2019 Steering Actuator Rod (Qty 1)
- 17 2024 R Series RH Arm Rod Assembly (Qty 1)
- 18 2024 R Series LH Arm Rod Assembly (Qty 1)
- 19 R-Series Square Drive Arm RH Assembly (Qty 1)
- 20 R-Series Square Drive Arm LH Assembly (Qty 1)
- 21 Drive Arm Bushing (Qty 2)
- 22 2019 Rogue Push Rod Assembly (Qty 2)
- 23 2019 Arm Switch Bracket--Plated (Qty 2)
- 24 Star Knob 3/8- 16 x3" (Qty 2)
- 25 2021 LH Rogue Hydro Tank Line Assy (Qty 1)
- 26 2021 RH Rogue Hydro Tank Line Assy (Qty 1)
- 27 2023 Rogue Frame--Orange (Qty 1)
- 28 Safety Switch (Qty 2)
- 29 Damper (Heim Ends) (Qty 2)
- 31 MY24 Rogue Back Plate & Front Decal (Qty 1)
- 32 Yellow Hydraulic Decal (Qty 2)
- 33 R-Series LH/RH Steering Control Decal (Qty 1)
- 34 2019 Deck Release Decal (Qty 1)
-
1#013-0021-00
Extruded Nut 3/8"-16 3/4" Hole Center With Patch
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
2#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
3#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
4#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
5#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
6#018-0068-00
5/16-18 x 5/8 Hex Bolt
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
7#018-0078-00
3/8"-16 Thread Size, 1" 1/4 Long Grade 5
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
8#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 8Regular price $1.99 USDRegular priceUnit price per
-
9#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
10#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
11#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
12#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 5Regular price $0.00 USDRegular priceUnit price per
-
13#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
14#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
15#019-8051-00
5/16 Lock washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
16#028-0051-00
2019 Steering Actuator Rod
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
No sequence found for SKU:
2024 R Series RH Arm Rod Assembly
Regular price $0.00 USDRegular priceUnit price per
-
No sequence found for SKU:
2024 R Series LH Arm Rod Assembly
Regular price $0.00 USDRegular priceUnit price per
-
19#031-9070-00
R-Series Square Drive Arm RH Assembly
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
20#031-9071-00
R-Series Square Drive Arm LH Assembly
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
21#032-0002-00
Drive Arm Bushing
Qty Used: 2Regular price $14.53 USDRegular priceUnit price per
-
22#035-0004-00
2019 Rogue Push Rod Assembly
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
23#039-2160-00
2019 Arm Switch Bracket--Plated
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
24#057-5800-00
Star Knob 3/8- 16 x3"
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
25#067-8053-21
2021 LH Rogue Hydro Tank Line Assy
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
26#067-8054-21
2021 RH Rogue Hydro Tank Line Assy
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
27#070-2305-00
2023 Rogue Frame--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
28#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
29#087-0002-00
Damper (Heim Ends)
Qty Used: 2Regular price $58.37 USDRegular priceUnit price per
-
31#091-0516-00
MY24 Rogue Back Plate & Front Decal
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
32#091-1020-00
Yellow Hydraulic Decal
Qty Used: 2Regular price $1.46 USDRegular priceUnit price per
-
33#091-1114-00
2018 LH/RH Steering Control Decal Roll
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
34#091-4037-00
2019 Deck Release Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
