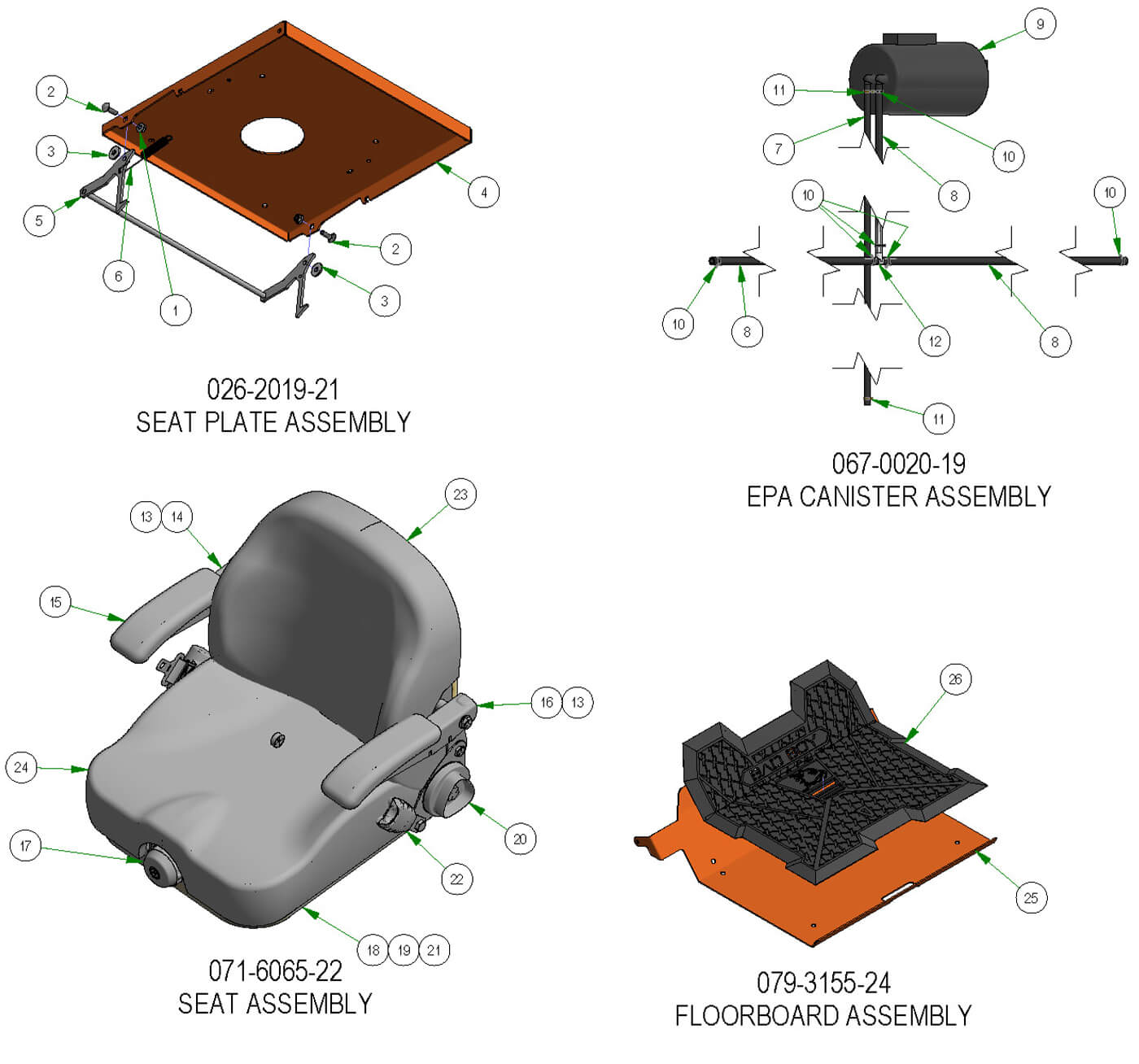

Covers & Seat Subassemblies
Parts Index
- 1 5/16-18 Nylon Flange Nut (Qty 2)
- 2 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 3 .360 ID Plastic Washer (Qty 2)
- 4 Seat Plate--Orange (Qty 1)
- 5 Seat Latch Rod (Qty 1)
- 6 Brake Spring (Qty 1)
- 7 66" 3/16 Vinyl EPA Line (Qty 1)
- 8 38" 1/4 Vinyl Tubing (Qty 3)
- 9 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 10 MZ Tank Hose Clamp 1/4 Vinyl (Qty 6)
- 11 3/16" Vinyl Hose Clamp (Qty 2)
- 12 Fuel Line T (Qty 1)
- 13 Arm Kit for 071-6065-00/071-6065-22 (Qty 1)
- 14 RH Arm rest -Selfskin Front Adj for 071-6065-22 (Qty 1)
- 15 Arm Pad for 071-6065-00/071-6065-22 (Qty 1)
- 16 LH Armrest -Selfskin Front Adj for 071-6065-22 (Qty 1)
- 17 Weight Adjustment Knob for 071-6065-00/071-6065-22 (Qty 1)
- 18 SEAT RAILS for 071-6065-00/071-6065-22 (Qty 1)
- 19 Seat Switch for 071-6065-00/071-6065-22 (Qty 1)
- 20 Recliner Adjust Knob for 071-6065-00/71-6065-22 (Qty 1)
- 21 Bellows w/Hardware for 071-6065-22 (Qty 1)
- 22 OBSOLETE USE 071-6063-00 (Qty 1)
- 23 Back Cover for I3M - Recl - Logos for 071-6065-22 (Qty 1)
- 24 Cushion Cover Kit for I3M - Logo for 071-6065-22 (Qty 1)
- 26 2024 R-Series Floor Mat "Safety" (Qty 1)
-
1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
2#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
3#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
4#026-2019-00
Seat Plate--Orange
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
5#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
6#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
7#051-2025-66
66" 3/16 Vinyl EPA Line
Qty Used: 1Regular price $12.39 USDRegular priceUnit price per
-
8#051-8072-38
38" 1/4 Vinyl Tubing
Qty Used: 3Regular price $26.53 USDRegular priceUnit price per
-
9#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
10#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 6Regular price $1.45 USDRegular priceUnit price per
-
11#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
12#073-8068-00
Fuel Line T
Qty Used: 1Regular price $8.82 USDRegular priceUnit price per
-
13#071-6065-04
Arm Kit for 071-6065-00/071-6065-22
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
14#071-6065-11
RH Arm rest -Selfskin Front Adj for 071-6065-22
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
15#071-6065-03
Arm Pad for 071-6065-00/071-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
16#071-6065-12
LH Armrest -Selfskin Front Adj for 071-6065-22
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
17#071-6065-05
Weight Adjustment Knob for 071-6065-00/071-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
18#071-6065-06
SEAT RAILS for 071-6065-00/071-6065-22
Qty Used: 1Regular price $92.87 USDRegular priceUnit price per
-
19#071-6065-07
Seat Switch for 071-6065-00/071-6065-22
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
20#071-6065-10
Recliner Adjust Knob for 071-6065-00/71-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
21#071-6065-13
Bellows w/Hardware for 071-6065-22
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
22#071-6065-14
OBSOLETE USE 071-6063-00
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
23#071-6065-15
Back Cover for I3M - Recl - Logos for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
24#071-6065-16
Cushion Cover Kit for I3M - Logo for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
26#081-2024-00
2024 R-Series Floor Mat
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
