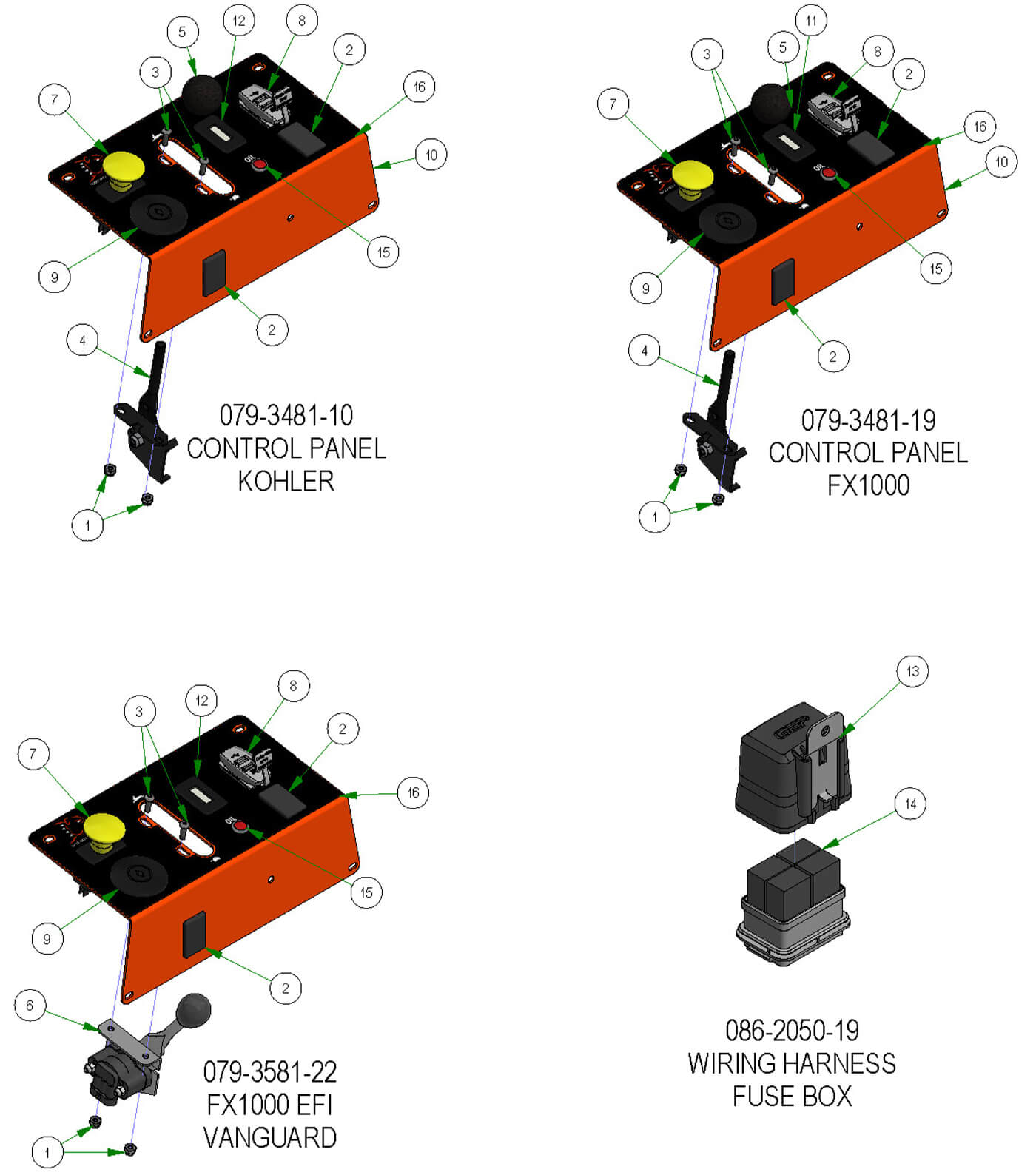

Control Panels & Wiring Harness
Parts Index
- 1 10-24 Nylon Insert Locknut Zin (Qty 16)
- 2 Light Plug (Qty 6)
- 3 10-24 X 5/8 BS C/S 18-8 SS (Qty 6)
- 4 Universal Throttle Head - 2012 (Qty 2)
- 5 Throttle / Brake Head Ball (Qty 2)
- 6 Kawasaki \ Kohler Drive by Wire Throttle (Qty 1)
- 7 PTO Engager-Switch for Blades (Qty 3)
- 8 USB Port (Qty 3)
- 9 Ignition Switch (Qty 3)
- 10 2022 Rebel Control Panel--Orange (Qty 3)
- 11 Tachometer-N310-0100-1018 (Qty 1)
- 12 Tachometer-Kohler/Yamaha EFI (Qty 2)
- 13 2019 Relay Cap Kit (Qty 1)
- 14 2019 Relay Terminal (Qty 4)
- 15 Oil Light (Qty 3)
- 16 2022 Rebel/ Rogue Control Panel Decal (Qty 3)
-
1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 16Regular price $0.69 USDRegular priceUnit price per
-
2#018-1040-00
Light Plug
Qty Used: 6Regular price $2.69 USDRegular priceUnit price per
-
3#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
4#055-2012-00
Universal Throttle Head - 2012
Qty Used: 2Regular price $23.87 USDRegular priceUnit price per
-
5#055-2013-00
Throttle Head Ball
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
6#055-3001-00
Kawasaki \ Kohler Drive by Wire Throttle
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-
7#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 3Regular price $32.05 USDRegular priceUnit price per
-
-
9#077-8076-00
Ignition Switch
Qty Used: 3Regular price $19.99 USDRegular priceUnit price per
-
11#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
12#083-4050-00
Tachometer-Kohler/Yamaha EFI
Qty Used: 2Regular price $74.99 USDRegular priceUnit price per
-
13#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
14#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
-
-
16#091-4009-22
2022 Rebel/ Rogue Control Panel Decal
Qty Used: 3Regular price $9.99 USDRegular priceUnit price per
