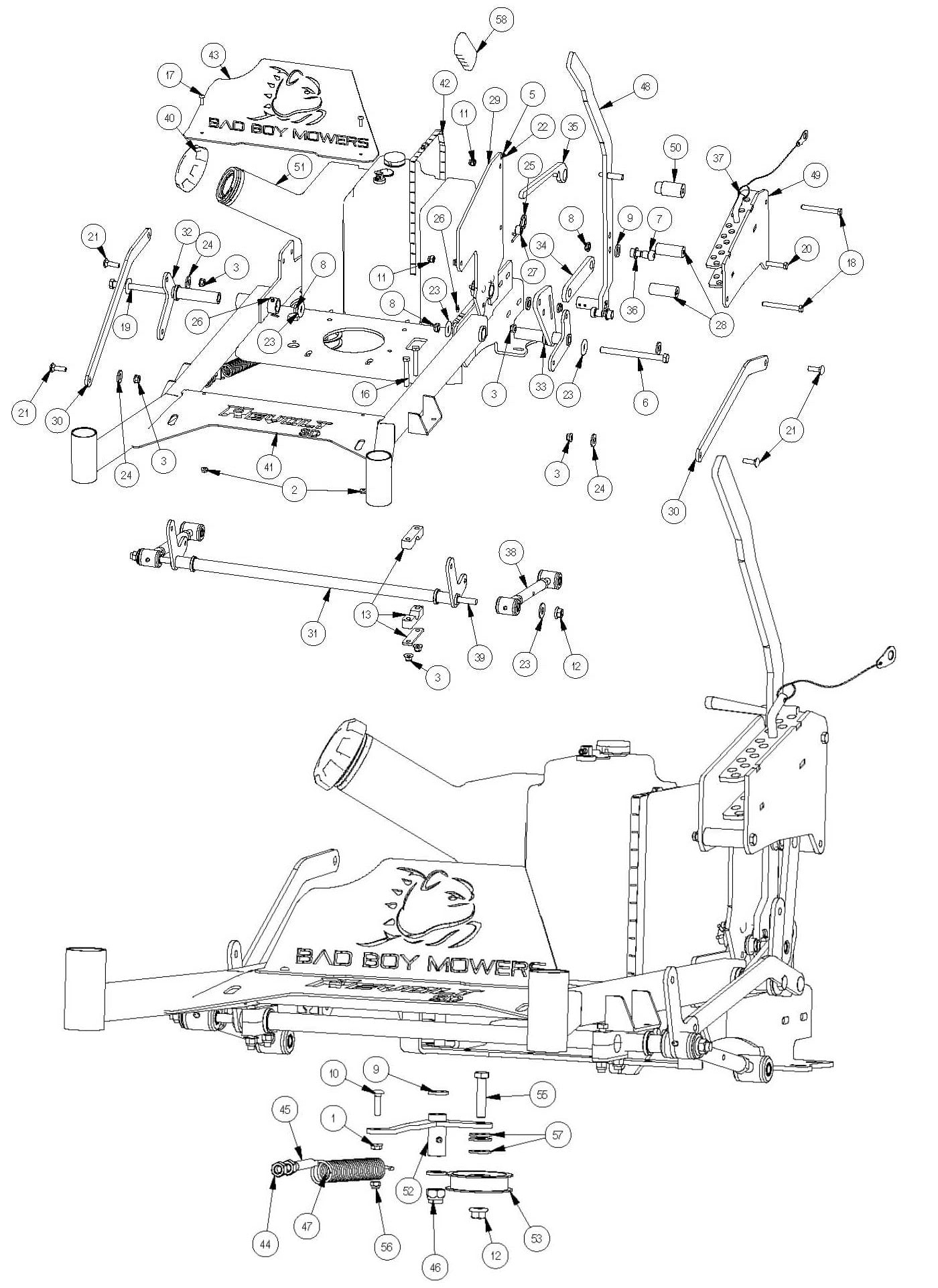

SD Frame
Parts Index
- 1 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 2 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 3 3/8 Nylock Flange Nut (Qty 8)
- 4 5/16-18 Nylon Flange Nut (Qty 2)
- 5 10-24 Nylon Insert Locknut Zin (Qty 1)
- 6 1/2-13 X 6 HEX CAP SCREW GR 5 ZC/ROHS 2 INCH MINIM (Qty 1)
- 7 5/8 x 5/8 Shoulder Bolt (Qty 2)
- 8 1/2-13 Nylon Insert Jam Locknut (Qty 5)
- 9 .630 ID X 1.122 OD X .142 THK (Qty 4)
- 10 5/16-18 X 1-1/4 Carriage Bolt (Qty 3)
- 11 3/8-16 Nylon Insert Locknut Zi (Qty 5)
- 12 1/2-13 Nylon Insert Flange Nut (Qty 3)
- 13 2017 Magnum Pillow Block-Male (Qty 2)
- 14 2017 Magnum Pillow Block-Female (Qty 2)
- 15 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 16 3/8x2 1/2" Hex Bolt (Qty 4)
- 17 1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head (Qty 2)
- 18 3/8-16x3-1/2 Grade 5 Hex Bolt (Qty 2)
- 19 1/2-13x5 1/2 Hex Bolt Grade 5 (Qty 1)
- 20 3/8-16 X 4-1/4 GR 5 Hex Bolt (Qty 1)
- 21 3/8-16 X 1-1/4 Carriage Bolt (Qty 4)
- 22 10-24 X 5/8 BS C/S 18-8 SS (Qty 1)
- 23 1/2 Flat Washer (Qty 7)
- 24 .505 ID X 1 OD X .128 THK Washer (Qty 4)
- 26 1/8" Drive-in Grease Fitting No Ball (Qty 4)
- 27 ACS Spacer 3/4x3/8x1/2 (Qty 1)
- 28 Revolt Spacer 2.5" (Qty 2)
- 29 2023 SD Inner Adjustment Plate--Orange (Qty 1)
- 31 Revolt Front Actuator Bar Weldment--Black (Qty 1)
- 32 Revolt Rear Actuator Bar Weldment-RH--Black (Qty 1)
- 34 Lever Secondary Linkage--Black (Qty 1)
- 35 2019 Stand On Deck Lever Lock--Black (Qty 1)
- 36 Bronze Bushing - SF-2024-8 (Qty 2)
- 37 2023 Revolt Deck Height Pin (Qty 1)
- 38 Toplink (Qty 2)
- 39 2020 36" Stand On Turnbuckle Rod (Qty 1)
- 40 Fuel Kelch Cap - 3.5 Neck (Qty 1)
- 42 Band 13.5" (Qty 2)
- 44 1/2-13 Hex Nuts Zinc (Qty 1)
- 45 All Thread (Qty 1)
- 46 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 47 2019 Deck Spring - Big Diameter (Qty 1)
- 50 Stand On Spacer 2.5" With Shoulder (Qty 1)
- 51 Stand-On/Revolt Fuel Tank (Qty 1)
- 52 2020 36" Pump Idler Weldment--Plated (Qty 1)
- 53 2019 Renegade Horizontal Pump Pulley (Qty 1)
- 54 1/4 Drive-in Grease Fitting (Qty 1)
- 55 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 1)
- 56 5/16-18 Nylon Insert Locknut Z (Qty 1)
- 57 .565x1.25x.095 Washer Brass (Qty 3)
- 58 Grip (Deck Lift) (Qty 1)
-
1#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
2#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
3#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 8Regular price $1.49 USDRegular priceUnit price per
-
4#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
6#018-0062-00
1/2-13 X 6" Hex Head Bolt Gr5
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
7#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 2Regular price $14.59 USDRegular priceUnit price per
-
8#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 5Regular price $1.59 USDRegular priceUnit price per
-
9#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
10#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
11#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
12#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
13#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-
14#017-9078-00
2017 Magnum Pillow Block-Female
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-
15#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
16#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
No sequence found for SKU:
1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head
Regular price $0.00 USDRegular priceUnit price per
-
18#018-1010-00
3/8-16x3-1/2 Grade 5 Hex Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-

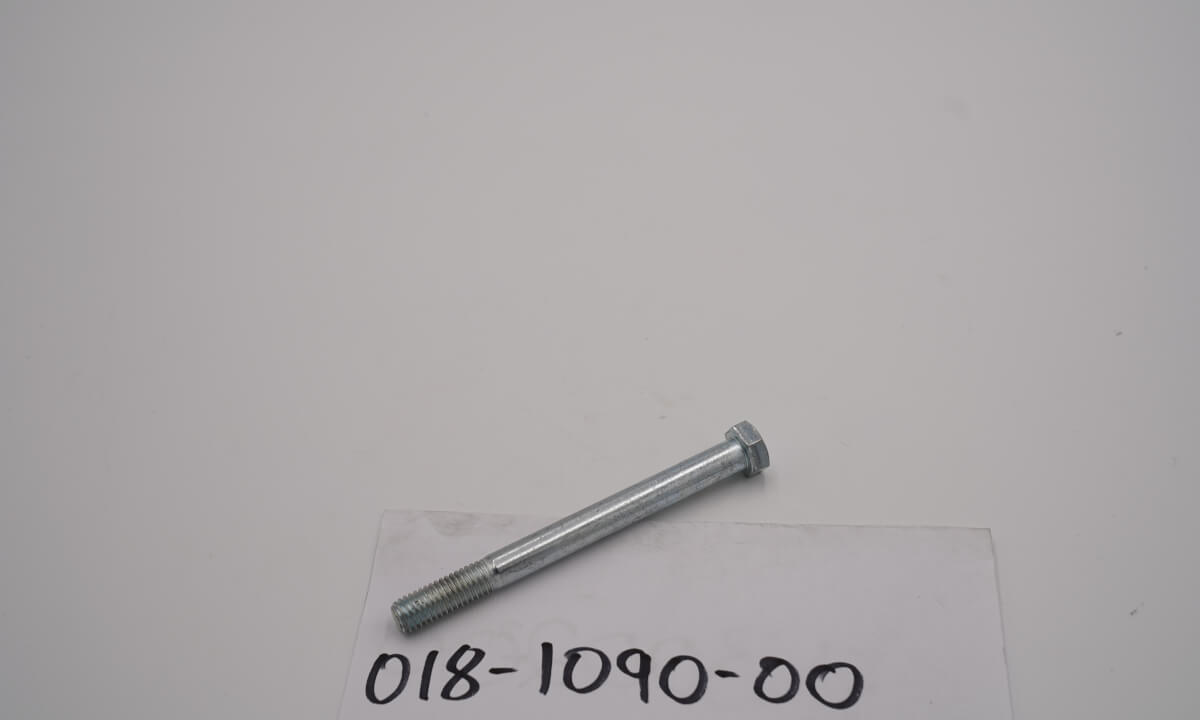

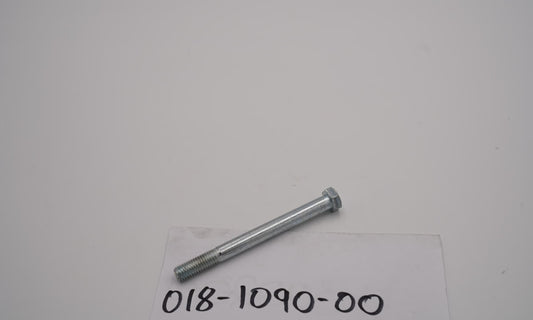

19#018-1090-00
1/2-13x5 1/2 Hex Bolt Grade 5
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
20#018-2005-00
3/8-16 X 4-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $2.59 USDRegular priceUnit price per
-
21#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
22#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
23#019-2040-00
1/2 Flat Washer
Qty Used: 7Regular price $1.39 USDRegular priceUnit price per
-
24#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
26#024-3050-00
1/4" Drive-in Grease Fitting
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
27#025-2004-00
ACS Spacer 3/4x3/8x1/2
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
28#025-5343-00
Revolt Spacer 2.5"
Qty Used: 2Regular price $10.29 USDRegular priceUnit price per
-
31#028-0036-00
Revolt Front Actuator Bar Weldment--Black
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
32#028-0037-00
Revolt Rear Actuator Bar Weldment-RH--Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
35#031-0093-00
2019 Stand On Deck Lever Lock--Black
Qty Used: 1Regular price $22.54 USDRegular priceUnit price per
-
36#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 2Regular price $4.37 USDRegular priceUnit price per
-
37#040-4004-00
2023 Revolt Deck Height Pin
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
-

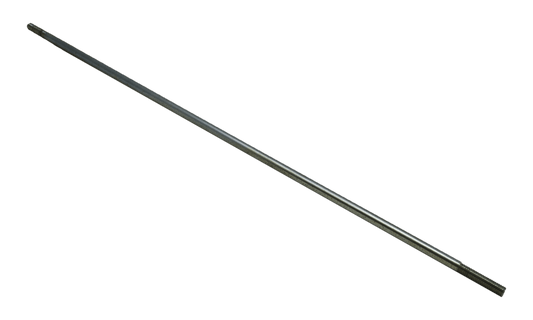

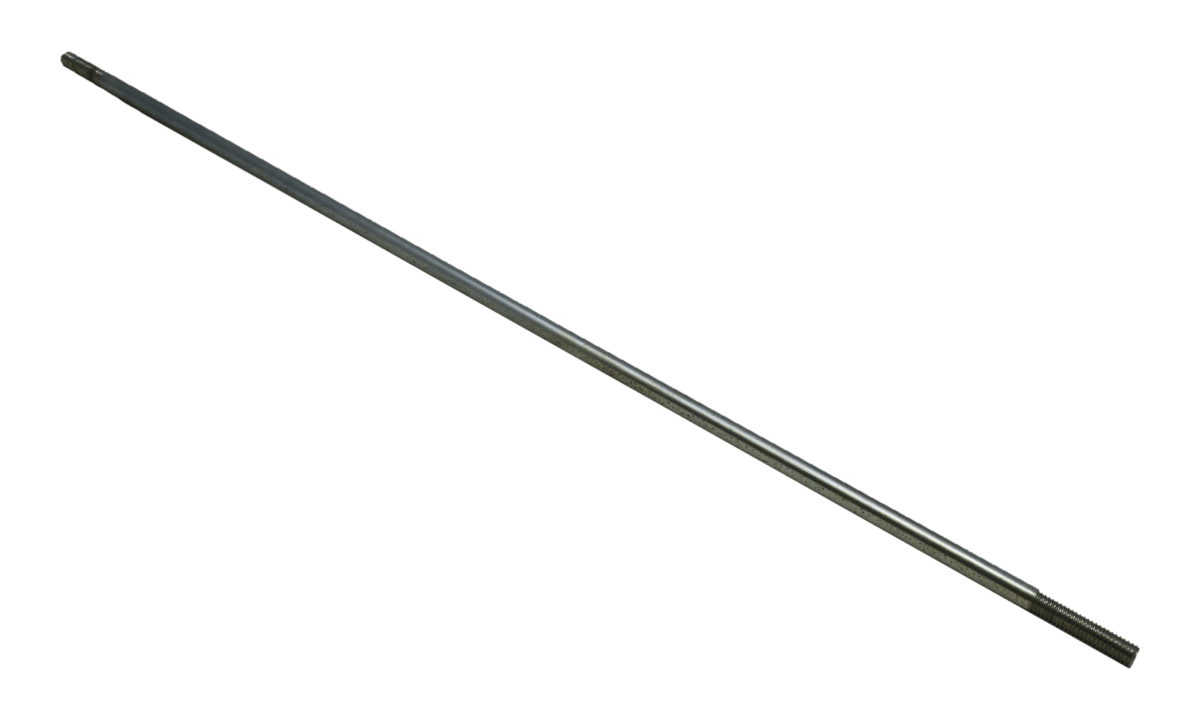

39#048-6058-00
2020 36" Stand On Turnbuckle Rod
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-

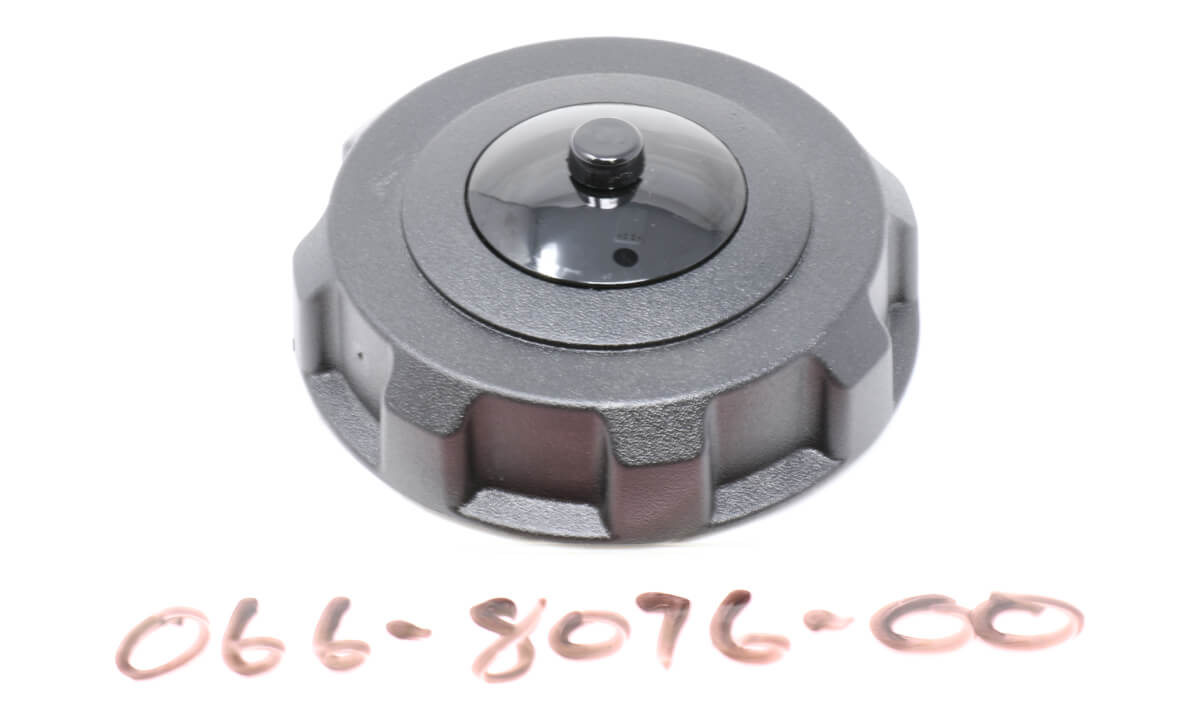

40#066-8076-00
Fuel Kelch Cap - 3.5 Neck
Qty Used: 1Regular price $29.95 USDRegular priceUnit price per
-
42#072-0051-00
Band 13.5"
Qty Used: 2Regular price $10.60 USDRegular priceUnit price per
-
44#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
45#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
46#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
47#034-9050-00
2019 Deck Spring - Big Diameter
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
50#025-0081-00
Stand On Spacer 2.5" With Shoulder
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
51#067-0030-00
Stand-On/Revolt Fuel Tank
Qty Used: 1Regular price $229.99 USDRegular priceUnit price per
-
52#039-6947-00
2020 36" Pump Idler Weldment--Plated
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
53#033-1876-00
2019 Renegade Horizontal Pump Pulley
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
54#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-
55#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
56#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
57#019-5010-00
.565x1.25x.095 Washer Brass
Qty Used: 3Regular price $2.39 USDRegular priceUnit price per
-
58#069-4012-00
Grip (Deck Lift)
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
