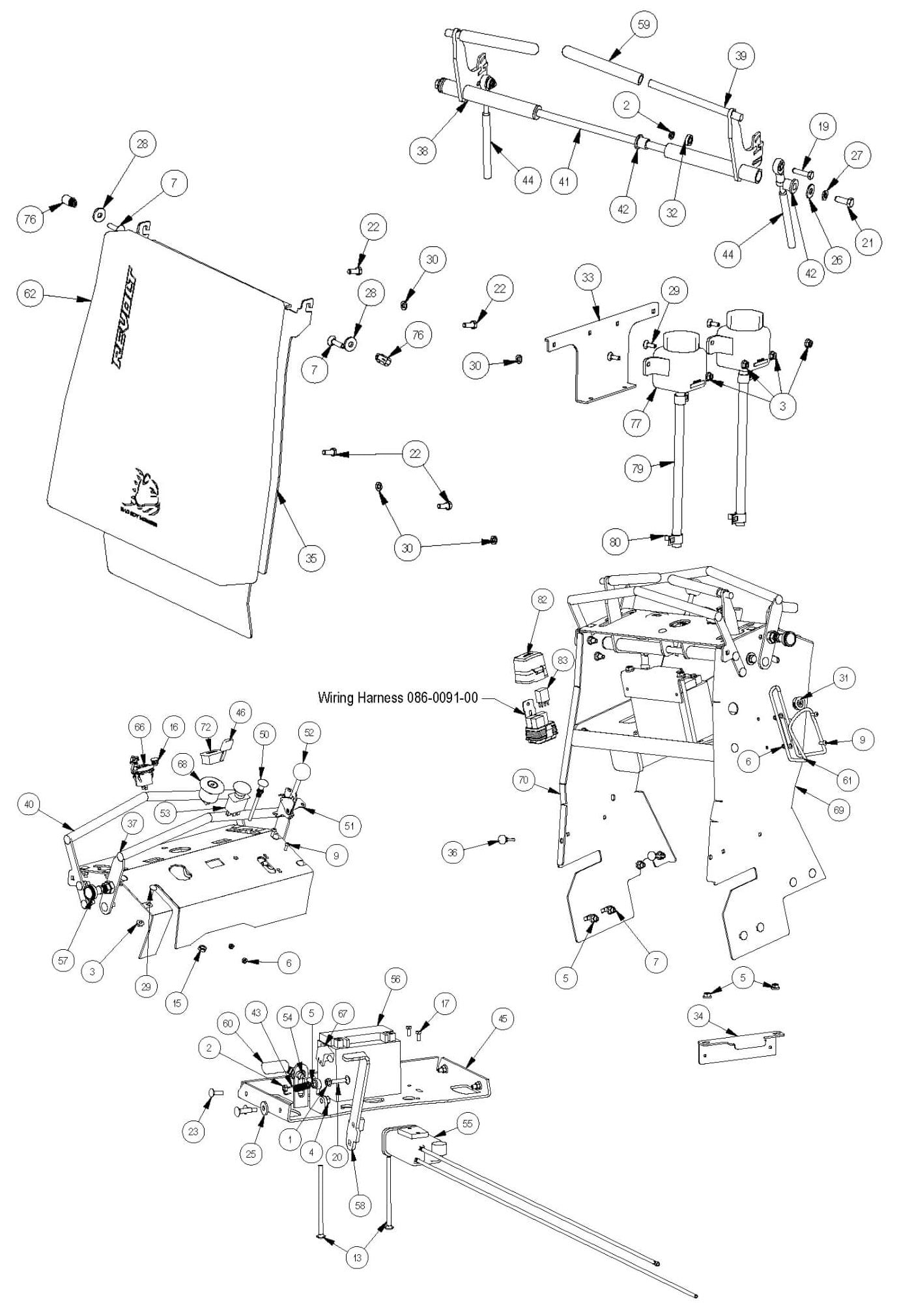

Podium

Parts Index
- 1 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 2 5/16-18 Nylock Jam Nut (Qty 3)
- 3 1/4-20 Nylon Insert Flange Nut (Qty 12)
- 4 3/8 Nylock Flange Nut (Qty 1)
- 5 5/16-18 Nylon Flange Nut (Qty 21)
- 6 10-24 Nylon Insert Locknut Zin (Qty 4)
- 7 5/16-18 X 1-1/4 Carriage Bolt (Qty 10)
- 8 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 9 10-24 X 5/8 BS C/S 18-8 SS (Qty 4)
- 10 Fuel Kelch Cap - 3.5 Neck (Qty 1)
- 12 Stand-On/Revolt Fuel Tank (Qty 1)
- 13 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 14 8-32 Hex M/S Nut (Qty 2)
- 15 3/8-24 Hex Nut Zinc (Qty 1)
- 16 5/8 Round Insert - Deck (Qty 1)
- 17 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 18 12-24 x 1/2 HWH Bolt (Qty 2)
- 19 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 20 5/16-18 X 1-1/2 Carriage Bolt (Qty 1)
- 21 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 22 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 4)
- 23 5/16-18 X 1 Carriage Bolt Zinc (Qty 10)
- 24 .390x.750x.062 Nylon Washer (Qty 2)
- 25 .390 ID Plastic Washer (Qty 1)
- 26 3/8 USS Flat Washer Zinc (Qty 2)
- 27 3/8 Lockwasher Zinc (Qty 2)
- 28 .360 ID Plastic Washer (Qty 2)
- 29 1/4 x 3/4 Carriage Bolt (Qty 12)
- 30 5/16 Lock washer Zinc (Qty 4)
- 32 ACS Spacer 3/4x3/8x1/4 (Qty 2)
- 35 2023 36-SD Pad Plate--Orange (Qty 1)
- 36 2023 Floor Board Rubber Bumpers (Qty 2)
- 37 36" Front Control Arm Stop Weldment--Black (Qty 1)
- 40 36-SD Control Arm Stop Weldment--Black (Qty 1)
- 41 2020 36" Stand On Drive Pivot Bar (Qty 1)
- 42 2023 Revolt Drive Arm Bushings (Qty 4)
- 43 Brake Spring (Qty 1)
- 44 2019 Stand On Push Rod Assembly (Qty 2)
- 46 Ignition Key (Qty 1)
- 47 1/4 Vinyl 46" EPA Line (Qty 1)
- 48 3/16 Vinyl 55" EPA Line (Qty 1)
- 49 Revolt Fuel Line Assy (Qty 1)
- 50 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 51 Universal Throttle Head - 2012 (Qty 1)
- 52 Throttle / Brake Head Ball (Qty 1)
- 53 PTO Engager-Switch for Blades (Qty 1)
- 54 Brake Cable Walk Behind/Revolt (Qty 1)
- 55 MZ/Revolt Kawasaki EPA Cannister Assy (Qty 1)
- 56 Revolt Battery (Qty 1)
- 57 Plunger 5/8-11 All Stainless Steel (Qty 1)
- 58 2019 Stand On Brake Handle--Black (Qty 1)
- 59 2019 Revolt Cushioned hand Grip (Qty 2)
- 60 Rubber Brake Grip-cZT/ZT 2013 (Qty 1)
- 61 2019 Stand-On Cup Holder (Qty 1)
- 62 2023 Revolt SD Pad (Qty 1)
- 63 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 64 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 65 Magnet-Steering Arm-Stand ON (Qty 2)
- 66 USB Port (Qty 1)
- 67 Safety Switch (Qty 1)
- 68 Ignition Switch (Qty 1)
- 71 36" Podium Front Panel Weldment--Orange (Qty 1)
- 72 Tachometer-N310-0100-1018 (Qty 1)
- 73 Safety Switch Harness (Qty 2)
- 74 36" Control Panel (upper) (Qty 1)
- 75 36" Control Panel (lower) (Qty 1)
- 76 2023 Revolt Platform adjustable handles (Qty 2)
- 77 71328-Expansion Tank CZT/ZT (Qty 2)
- 78 ZT Hydraulic Tank Cap (Qty 2)
- 79 2017 ZT/ Maverick Hydro Tank Hose (Qty 2)
- 80 3/8 Hose Clamp - CTB-16-STFS (Qty 2)
- 81 1/2 Hose Clamp (Qty 2)
- 82 2019 Relay Cap Kit (Qty 2)
- 83 2019 Relay Terminal (Qty 8)
