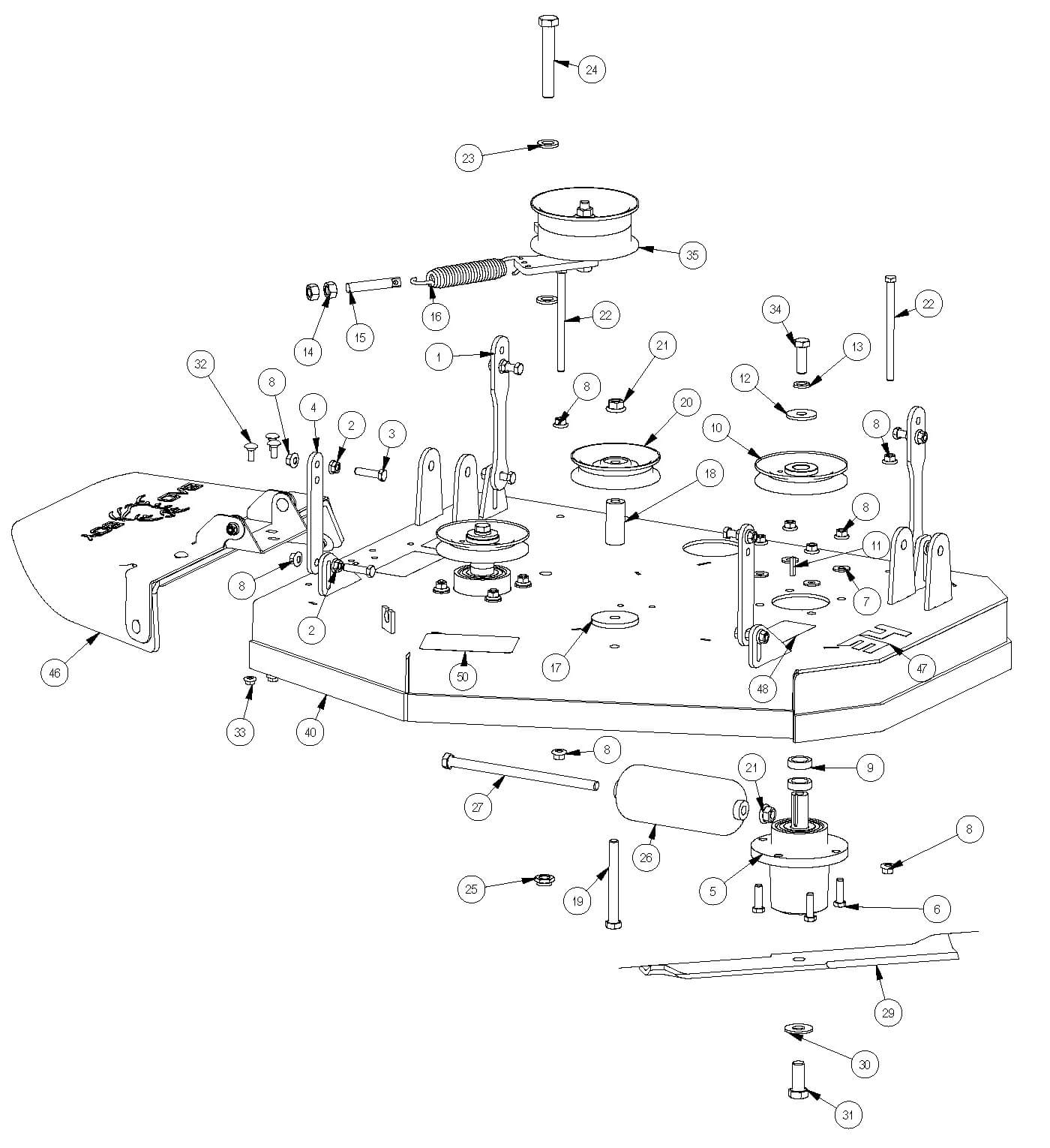

34" Deck

Parts Index
- 1 2019 Stand On Deck Hanger Rear--Black (Qty 2)
- 2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 8)
- 3 3/8 x 1 1/2 Bolt (Qty 8)
- 4 2019 Stand On Deck Hanger Front--Black (Qty 2)

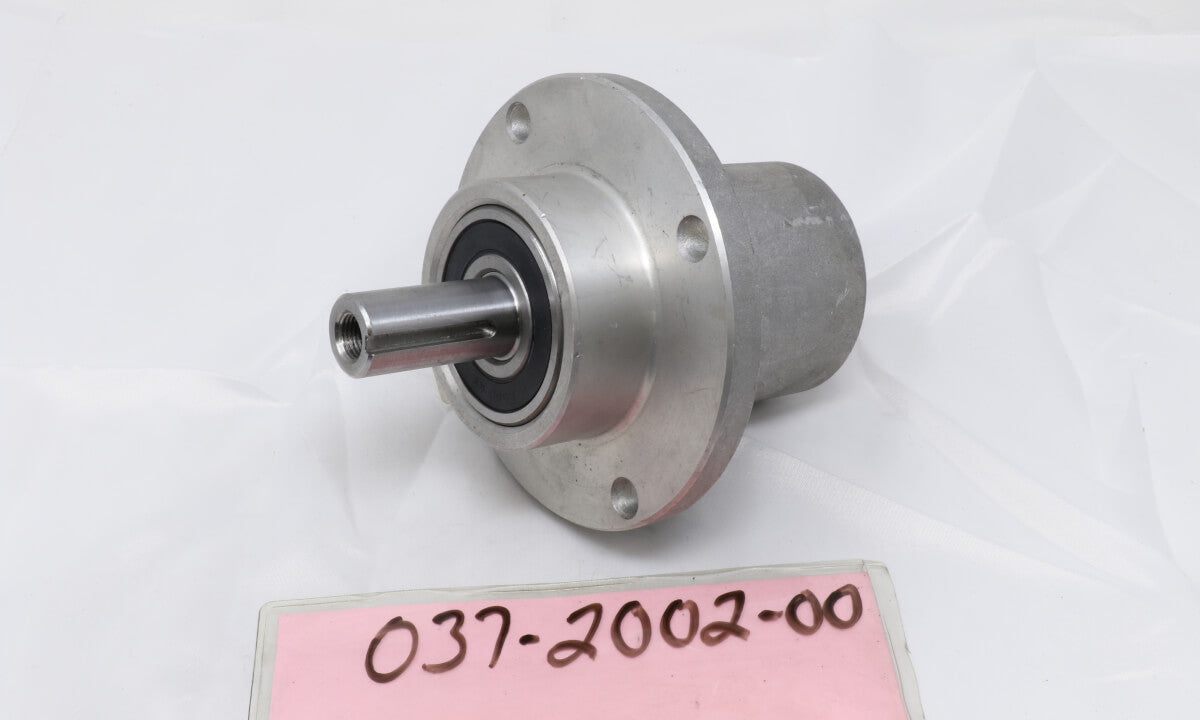

- 5 Revolt 36" Spindle (Qty 2)
- 6 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 8)
- 7 5/16 USS Flat Washer Zinc (Qty 8)
- 8 3/8 Nylock Flange Nut (Qty 20)
- 9 36" Stand On Deck Spacer (Qty 4)

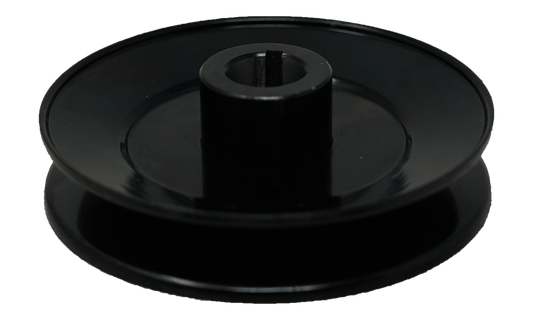

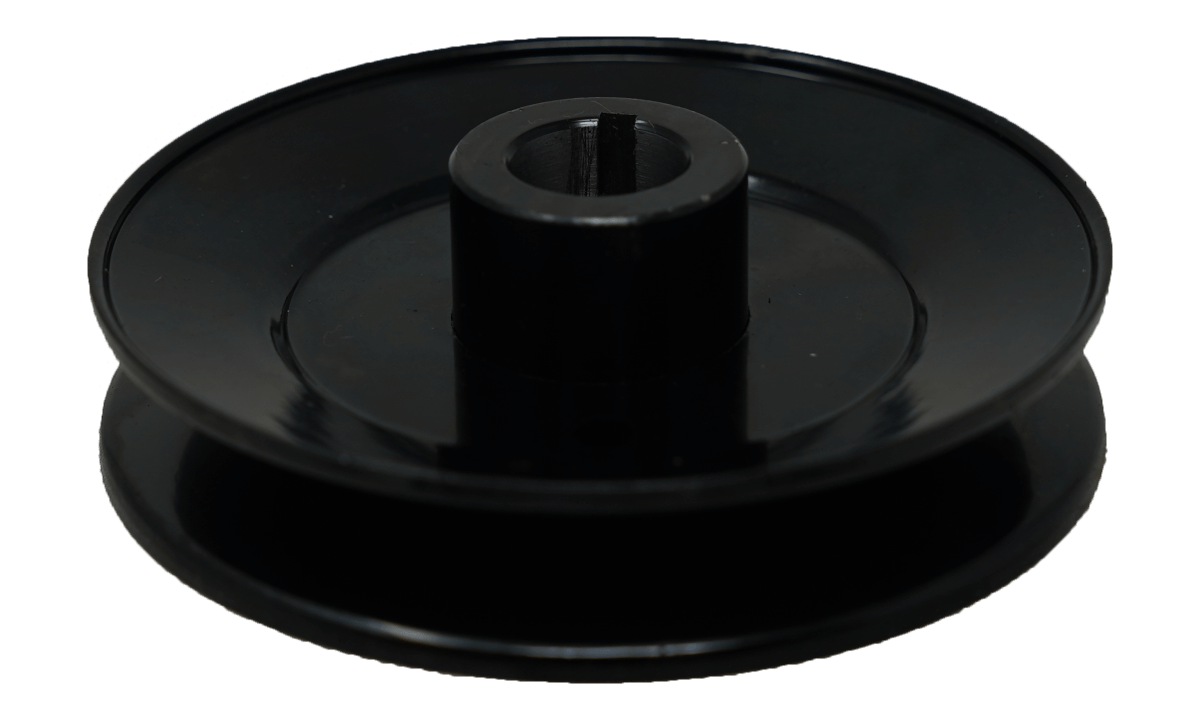

- 10 Deck Pulley - 48" Magnum/MZ (Qty 2)

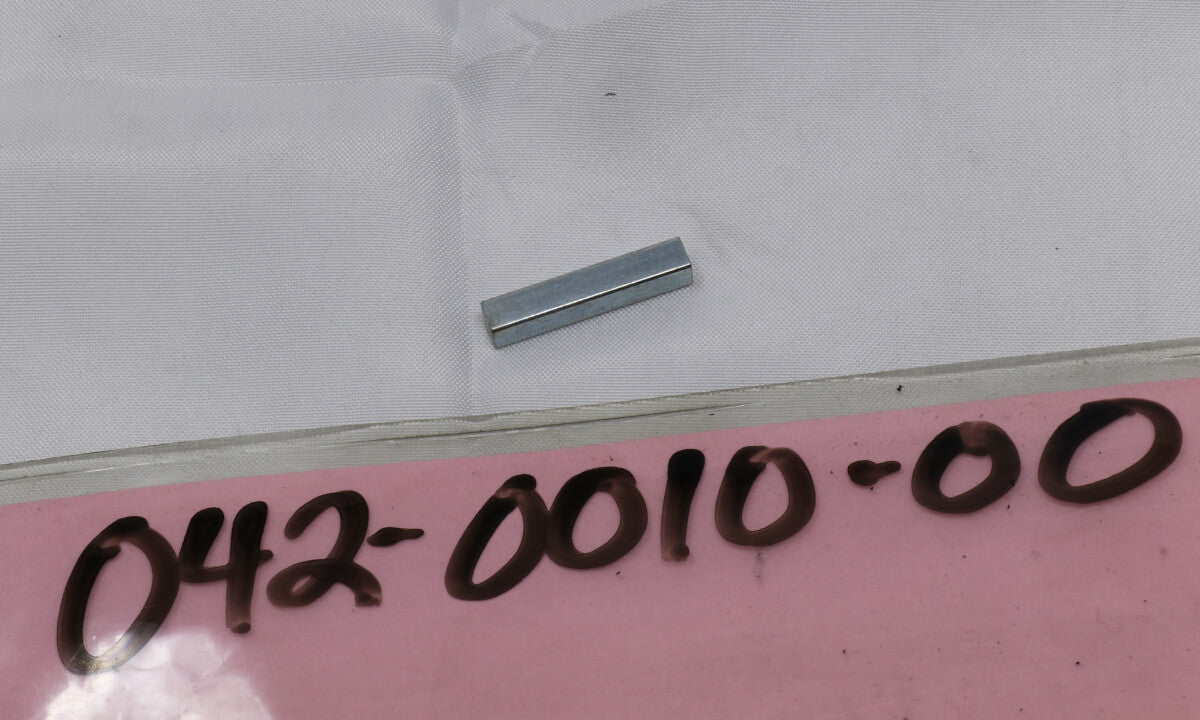

- 11 3/16 X 1 Square Machine Key (Qty 2)
- 12 1/2 Belleville Washer #K2000-G (Qty 2)
- 13 1/2 Lockwasher Zinc (Qty 2)
- 14 1/2-13 Hex Nuts Zinc (Qty 2)
- 15 All Thread (Qty 1)
- 16 2015 Deck Idler Spring (Qty 1)
- 17 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 18 2019 Stand On Stationary Idler Spacer (Qty 1)
- 19 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 1)

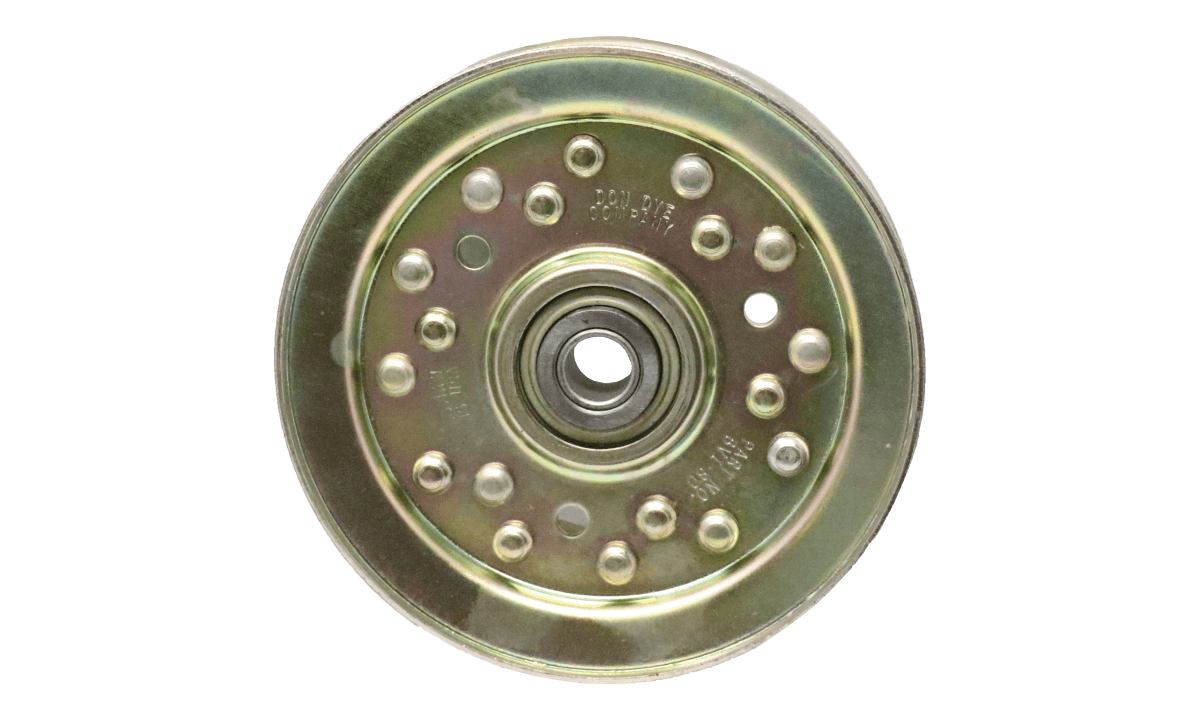

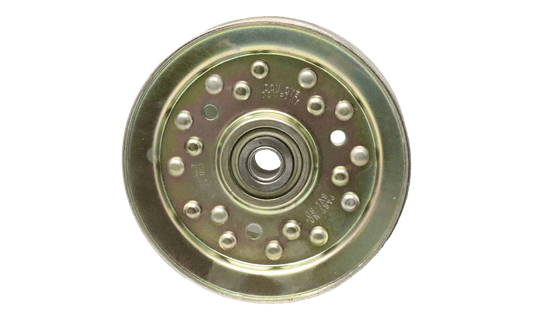

- 20 5 V Idler Pulley w/1/2" Bore- (Qty 1)
- 21 1/2-13 Nylon Insert Flange Nut (Qty 3)
- 22 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 23 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 24 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 25 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 26 Deck Roller Belly Mower (Qty 1)
- 27 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 1)
- 29 Revolt 34" Deck Blades (Qty 2)
- 30 5/8 Flat Washer (Qty 2)
- 31 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 2)
- 32 5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5) (Qty 3)
- 33 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 34 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 2)
- 35 Double Bearing Flat Idler (Qty 1)
- 36 2020 SD/36" Deck Idler Weldment--Plated (Qty 1)
- 37 1/4-28 Threaded Grease Fitting (Qty 1)
- 38 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 1)
- 39 .502x.750x1.130 Length Spacer (Qty 1)
- 46 MZ Discharge Chute Assembly (Qty 1)
- 48 Danger Decal-Spindle/Discharge (Qty 2)
- 49 Rubber Bushing Turnbuckle Patent Decal (Qty 1)
- 50 36" Revolt Deck Belt Route Decal (Qty 1)
