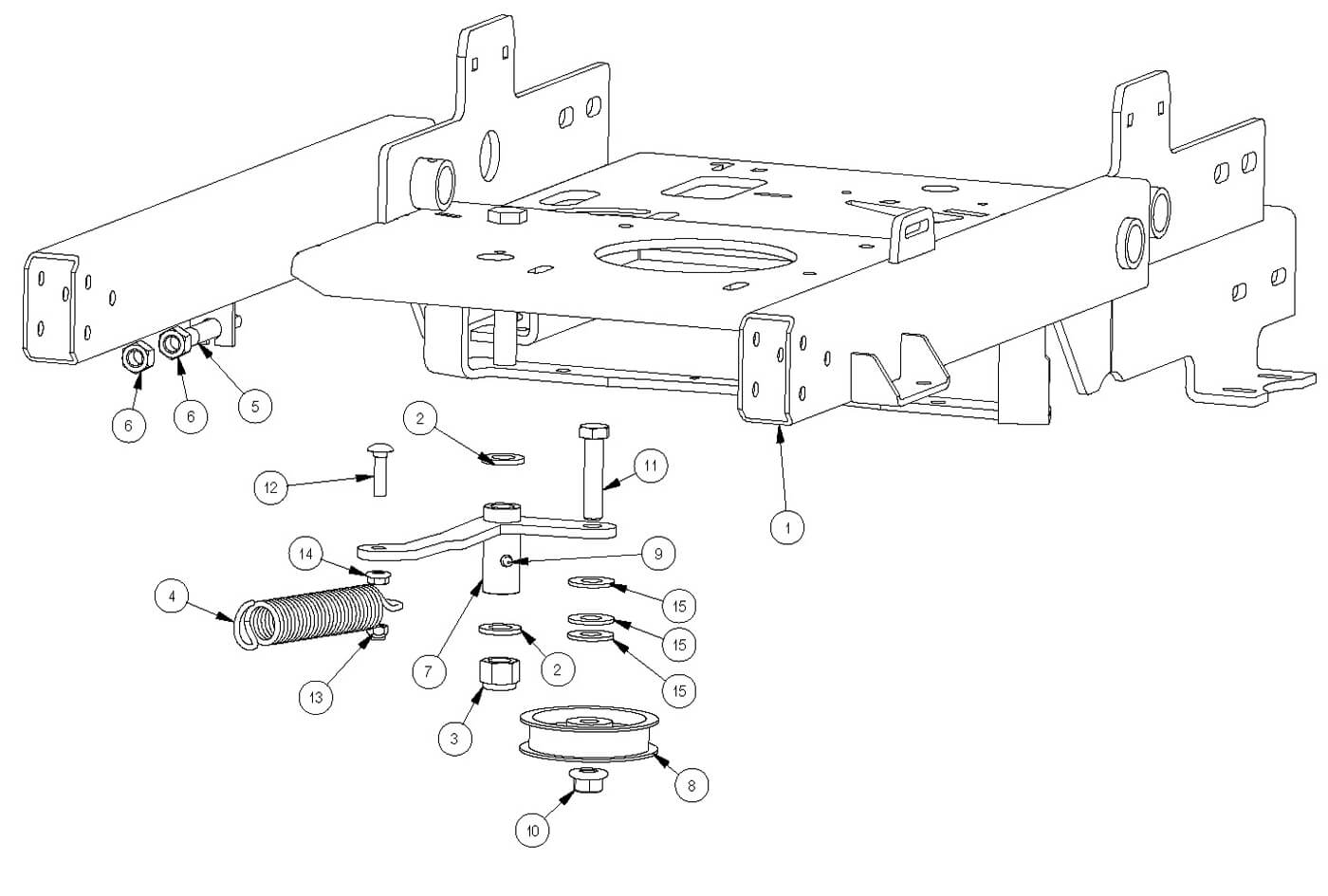

Pump Idler

Parts Index
- 1 2020 36" Stand On Frame--Orange (Qty 1)
- 2 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 3 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 4 2019 Deck Spring - Big Diameter (Qty 1)
- 5 All Thread (Qty 1)
- 6 1/2-13 Hex Nuts Zinc (Qty 2)
- 7 2020 36" Pump Idler Weldment--Plated (Qty 1)
- 8 2019 Renegade Horizontal Pump Pulley (Qty 1)
- 9 1/4 Drive-in Grease Fitting (Qty 1)
- 10 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 11 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 1)
- 12 5/16-18 X 1-1/4 Carriage Bolt (Qty 1)
- 13 5/16-18 Nylon Insert Locknut Z (Qty 1)
- 14 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 15 .565x1.25x.095 Washer Brass (Qty 3)
