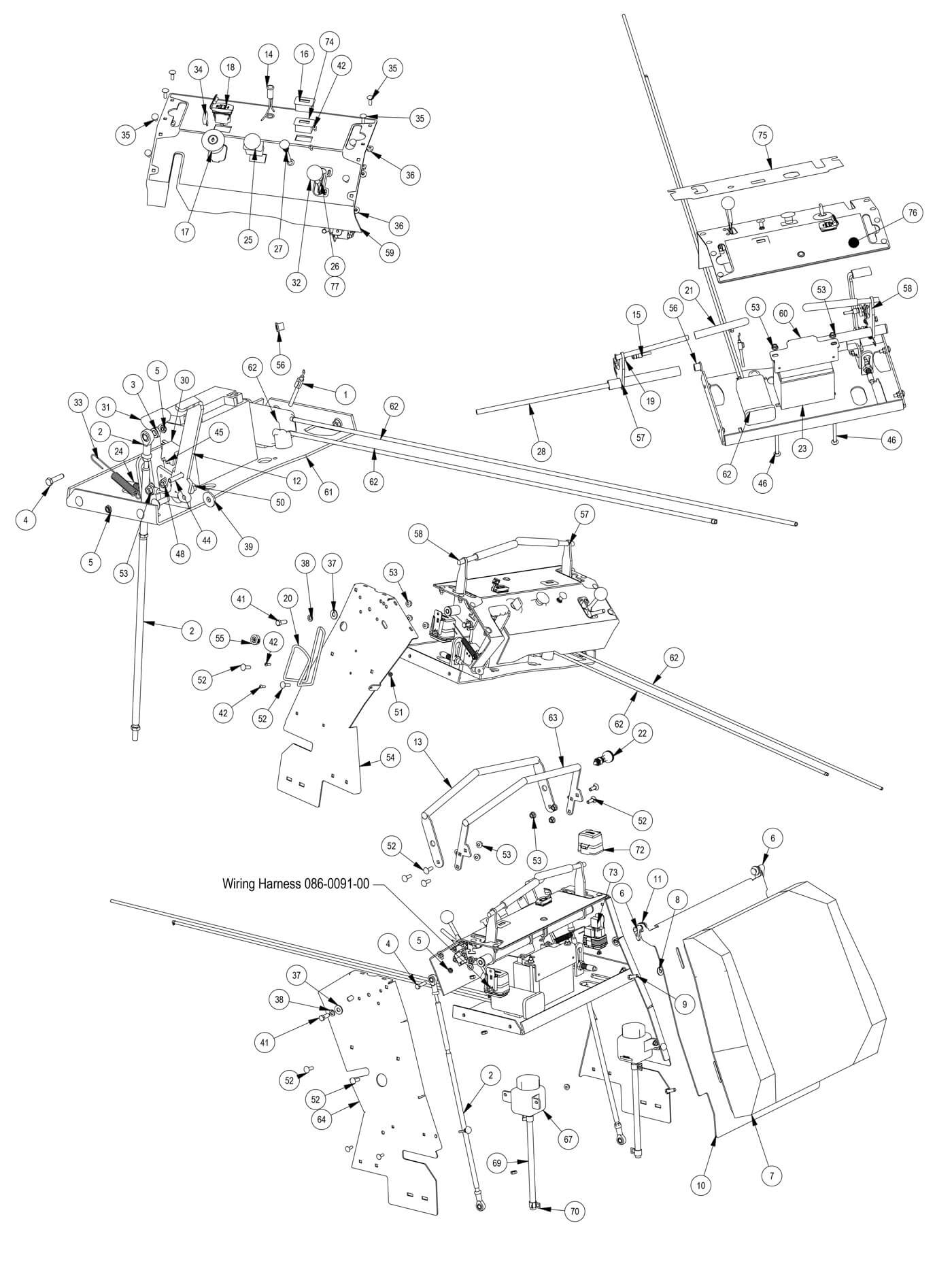

Podium Assembly
Parts Index
- 1 Rebel Rogue Renegade Throttle Cable ONLY (Qty 1)
- 2 2019 Stand On Push Rod Assembly (Qty 2)
- 3 ACS Spacer 3/4x3/8x1/4 (Qty 2)
- 4 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 5 5/16-18 Nylock Jam Nut (Qty 3)
- 6 2023 Revolt Platform adjustable handles (Qty 2)
- 7 2022 48, 54, 61 Revolt seat pad (Qty 1)
- 8 5/16 USS Flat Washer Zinc (Qty 4)
- 9 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 4)
- 10 2023 Pad Plate--Orange (Qty 1)
- 11 .360 ID Plastic Washer (Qty 2)
- 12 2019 Stand On Brake Handle--Black (Qty 1)
- 13 Revolt Front Control Arm Stop Weldment--Black (Qty 1)
- 14 Oil Light (Qty 1)
- 15 Safety Switch Harness (Qty 2)
- 17 Ignition Switch (Qty 1)
- 18 USB Port (Qty 1)
- 19 Magnet-Steering Arm-Stand ON (Qty 2)
- 20 2019 Stand-On Cup Holder (Qty 1)
- 21 2019 Revolt Cushioned hand Grip (Qty 2)
- 22 Plunger 5/8-11 All Stainless Steel (Qty 1)
- 23 Revolt Battery (Qty 1)
- 24 Brake Cable Walk Behind/Revolt (Qty 1)
- 25 PTO Engager-Switch for Blades (Qty 1)
- 26 Universal Throttle Head - 2012 (Qty 1)
- 27 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 28 2019 Stand On Drive Pivot Bar (Qty 1)
- 29 8-32 Hex M/S Nut (Qty 2)
- 30 Safety Switch (Qty 1)
- 31 Rubber Brake Grip-cZT/ZT 2013 (Qty 1)
- 32 Throttle / Brake Head Ball (Qty 1)
- 33 Brake Spring (Qty 1)
- 34 Ignition Key (Qty 1)
- 35 Ignition Key (Qty 12)
- 36 1/4-20 Nylon Insert Flange Nut (Qty 12)
- 37 3/8 USS Flat Washer Zinc (Qty 2)
- 38 3/8 Lockwasher Zinc (Qty 2)
- 39 .390 ID Plastic Washer (Qty 1)
- 40 .390x.750x.062 Nylon Washer (Qty 2)
- 41 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 42 10-24 X 5/8 BS C/S 18-8 SS (Qty 4)
- 43 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 44 5/16-18 X 1-1/2 Carriage Bolt (Qty 1)
- 45 12-24 x 1/2 HWH Bolt (Qty 2)
- 46 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 47 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 48 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 49 3/8-24 Hex Nut Zinc (Qty 1)
- 50 3/8 Nylock Flange Nut (Qty 1)
- 51 3/8 Nylock Flange Nut (Qty 4)
- 52 5/16-18 X 1 Carriage Bolt Zinc (Qty 10)
- 53 5/16-18 Nylon Flange Nut (Qty 13)
- 54 2023 Podium Panel Right--Orange (Qty 1)
- 56 2023 Revolt Drive Arm Bushings (Qty 4)
- 61 2023 Stand On Drive Arm Plate (Qty 1)
- 62 MZ/Revolt Kawasaki EPA Cannister Assy (Qty 1)
- 64 2023 Podium Panel Left--Orange (Qty 1)
- 65 2023 Floor Board Rubber Bumpers (Qty 2)
- 66 5/16-18 X 1-1/4 Carriage Bolt (Qty 2)
- 67 71328-Expansion Tank CZT/ZT (Qty 2)
- 68 ZT Hydraulic Tank Cap (Qty 2)
- 69 2017 ZT/ Maverick Hydro Tank Hose (Qty 2)
- 70 3/8 Hose Clamp - CTB-16-STFS (Qty 2)
- 71 1/2 Hose Clamp (Qty 2)
- 72 2019 Relay Cap Kit (Qty 2)
- 73 2019 Relay Terminal (Qty 8)
- 74 Tachometer-Kohler/Yamaha EFI (Qty 1)
- 75 48,54, & 61 Revolt Lower Control Panel Decal (Qty 1)
- 77 Kawasaki \ Kohler Drive by Wire Throttle (Qty 1)
-
1#055-8021-75
Rebel Rogue Renegade Throttle Cable ONLY
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
2#035-0006-19
2019 Stand On Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
3#025-2001-00
ACS Spacer 3/4x3/8x1/4
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
4#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 3Regular price $2.69 USDRegular priceUnit price per
-
6#045-0001-00
2023 Revolt Platform adjustable handles
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
7#071-6004-22
2022 48, 54, 61 Revolt seat pad
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
8#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
9#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
10#026-0273-00
2023 Pad Plate--Orange
Qty Used: 1Regular price $106.99 USDRegular priceUnit price per
-
11#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
12#069-2013-00
2019 Stand On Brake Handle--Black
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
13#031-0026-00
Revolt Front Control Arm Stop Weldment--Black
Qty Used: 1Regular price $57.09 USDRegular priceUnit price per
-
-
15#086-0015-00
Safety Switch Harness
Qty Used: 2Regular price $65.67 USDRegular priceUnit price per
-
17#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
-
19#077-1000-00
Magnet-Steering Arm-Stand ON
Qty Used: 2Regular price $13.85 USDRegular priceUnit price per
-

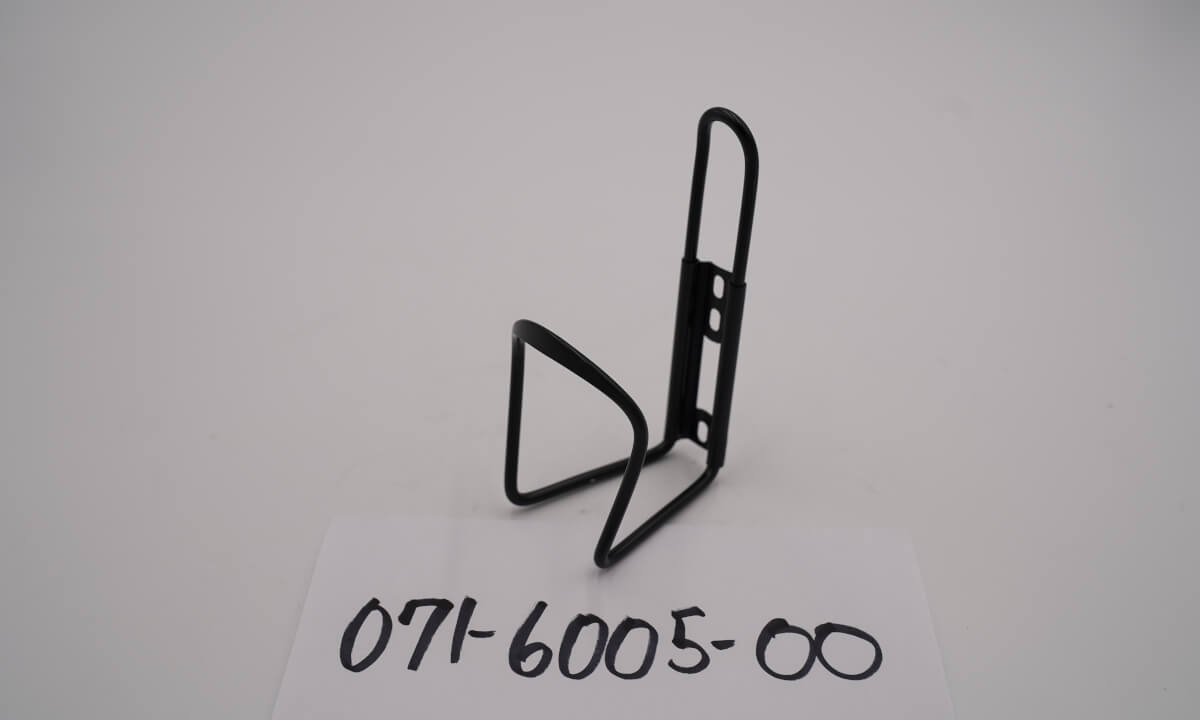

20#071-6005-00
2019 Stand-On Cup Holder
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
21#069-2014-00
2019 Revolt Cushioned hand Grip
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-

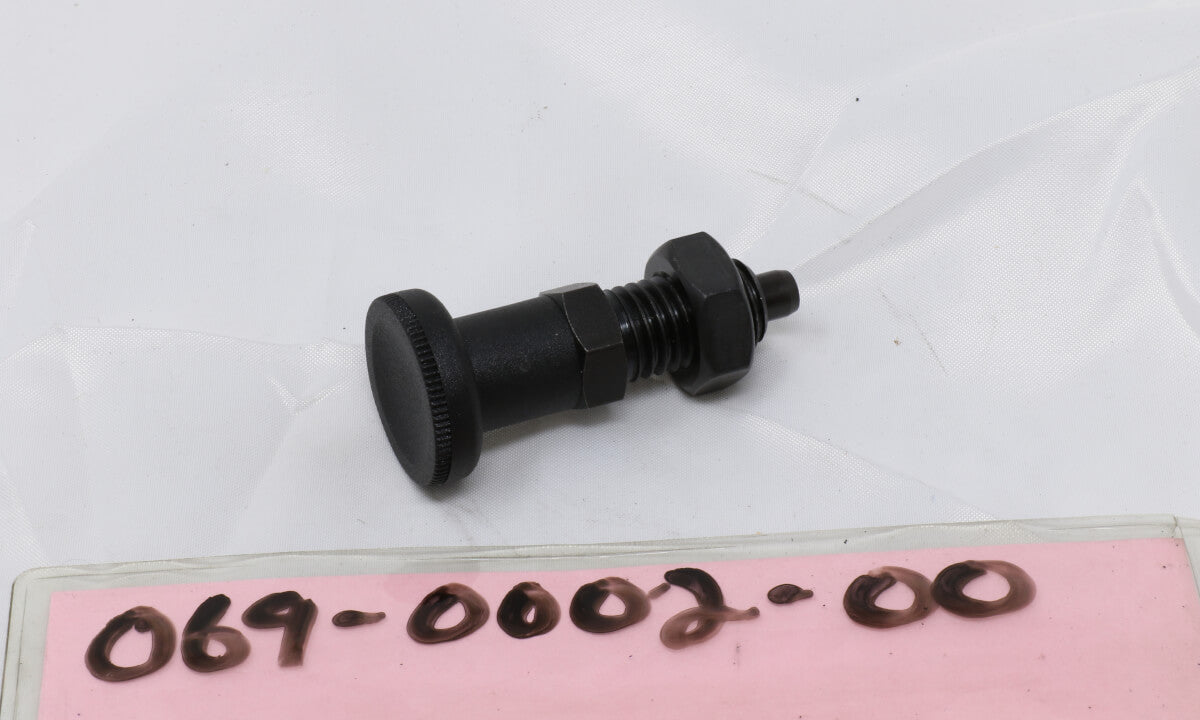

22#069-0002-00
Plunger 5/8-11 All Stainless Steel
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
23#068-8051-00
2019 Stand-On Battery
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
24#064-3000-00
Brake Cable Walk Behind/Revolt
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
25#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
26#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
27#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
28#031-0091-00
2019 Stand On Drive Pivot Bar
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
29#013-0001-00
8-32 Hex M/S Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
30#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
31#069-7000-00
Rubber Brake Grip-cZT/ZT 2013
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
32#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
33#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
3435#042-9000-00
Ignition Key
Qty Used: 12Regular price $3.69 USDRegular priceUnit price per
-
36#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-
37#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
38#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
39#019-2073-00
.390 ID Plastic Washer
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
40#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
41#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
42#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
43#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
44#018-5020-00
5/16-18 X 1-1/2 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
45#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
46#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
47#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
48#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
49#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
5051#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
52#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
53#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 13Regular price $0.79 USDRegular priceUnit price per
-
54#026-0270-00
2023 Podium Panel Right--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
56#032-0005-00
2023 Revolt Drive Arm Bushings
Qty Used: 4Regular price $1.89 USDRegular priceUnit price per
-
62#067-0015-02
MZ Kohler/Kawasaki EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
64#026-0280-00
2023 Podium Panel Left--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
65#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 2Regular price $1.09 USDRegular priceUnit price per
-
66#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
67#067-8090-00
71328-Expansion Tank CZT/ZT
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
68#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
69#051-0016-00
2017 ZT/ Maverick Hydro Tank Hose
Qty Used: 2Regular price $8.74 USDRegular priceUnit price per
-
70#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
71#072-8066-00
1/2 Hose Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
72#086-1202-01
2019 Relay Cap Kit
Qty Used: 2Regular price $17.24 USDRegular priceUnit price per
-
73#086-1202-19
2019 Relay Terminal
Qty Used: 8Regular price $23.34 USDRegular priceUnit price per
-
74#083-4050-00
Tachometer-Kohler/Yamaha EFI
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
77#055-3001-00
Kawasaki \ Kohler Drive by Wire Throttle
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
