Kawasaki EVO

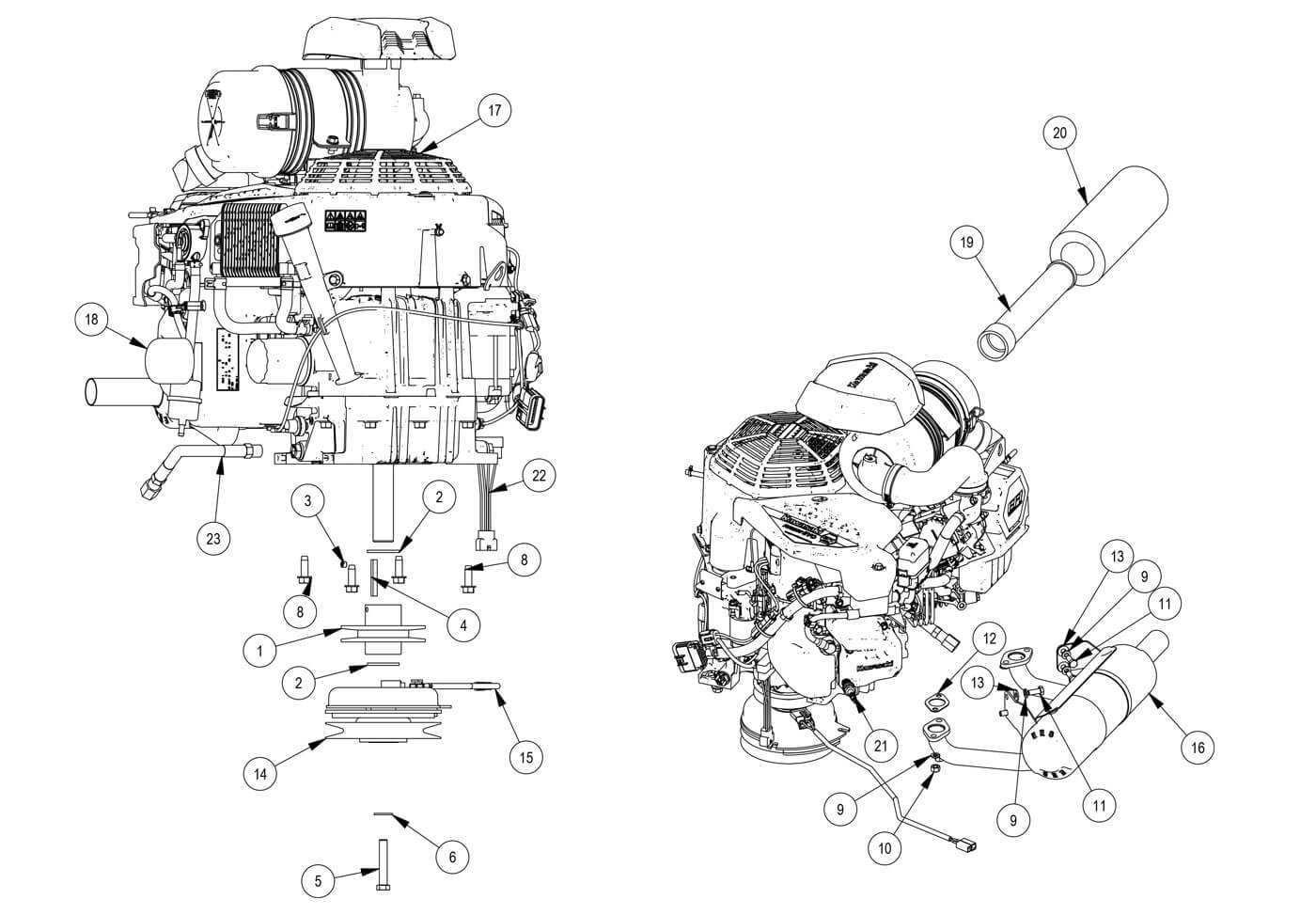

Parts Index
- 1 4 3/4 Motor Pulley (Qty 1)
- 2 1.140x1.750x .132 Flat Washer (Qty 2)
- 3 5/16-24 x 1/4 Set Screw (Qty 1)
- 4 1/4 X 2 Square Key Stock (Qty 1)
- 5 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 6 3/8 USS Flat Washer Zinc (Qty 1)
- 8 ¼-20 x 2-1/2 Gr2 Hex C/S Zinc (Qty 4)
- 9 5/16 Lock washer Zinc (Qty 9)
- 10 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 11 M8 x 1.25 x 20MM Hex Head Bolt (Qty 4)
- 12 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 13 1/4 USS Flat Washer Zinc (Qty 4)
- 14 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 15 Clutch Pigtail (Qty 1)
- 16 Kawasaki FXEVO Revolt Muffler (Qty 1)
- 17 FX781V-EVO (Qty 1)
- 18 Kawasaki Oil Filter (Qty 1)
- 19 Canister Air Filter - Inner (Qty 1)
- 20 Canister Air Fil Outer2010&Old (Qty 1)
- 21 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 22 Harness Adapter for Kawasaki EFI (Qty 1)
- 23 Kawasaki Oil Drain (Qty 1)
-
1#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
2#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
3#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
4#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
5#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
6#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
8#018-1076-00
¼-20 x 2-1/2 Gr2 Hex C/S Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
9#019-8051-00
5/16 Lock washer Zinc
Qty Used: 9Regular price $0.79 USDRegular priceUnit price per
-
10#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
11#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
12#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
13#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
-
15#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
16#015-1031-00
Kawasaki FXEVO Revolt Muffler
Qty Used: 1Regular price $103.99 USDRegular priceUnit price per
-
17#015-0781-00
FX781V-EVO
Qty Used: 1Regular price $5,999.99 USDRegular priceUnit price per
-
18#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
19#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
20#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
21#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
22#086-9016-00
Harness Adapter for Kawasaki EFI
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
23#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
