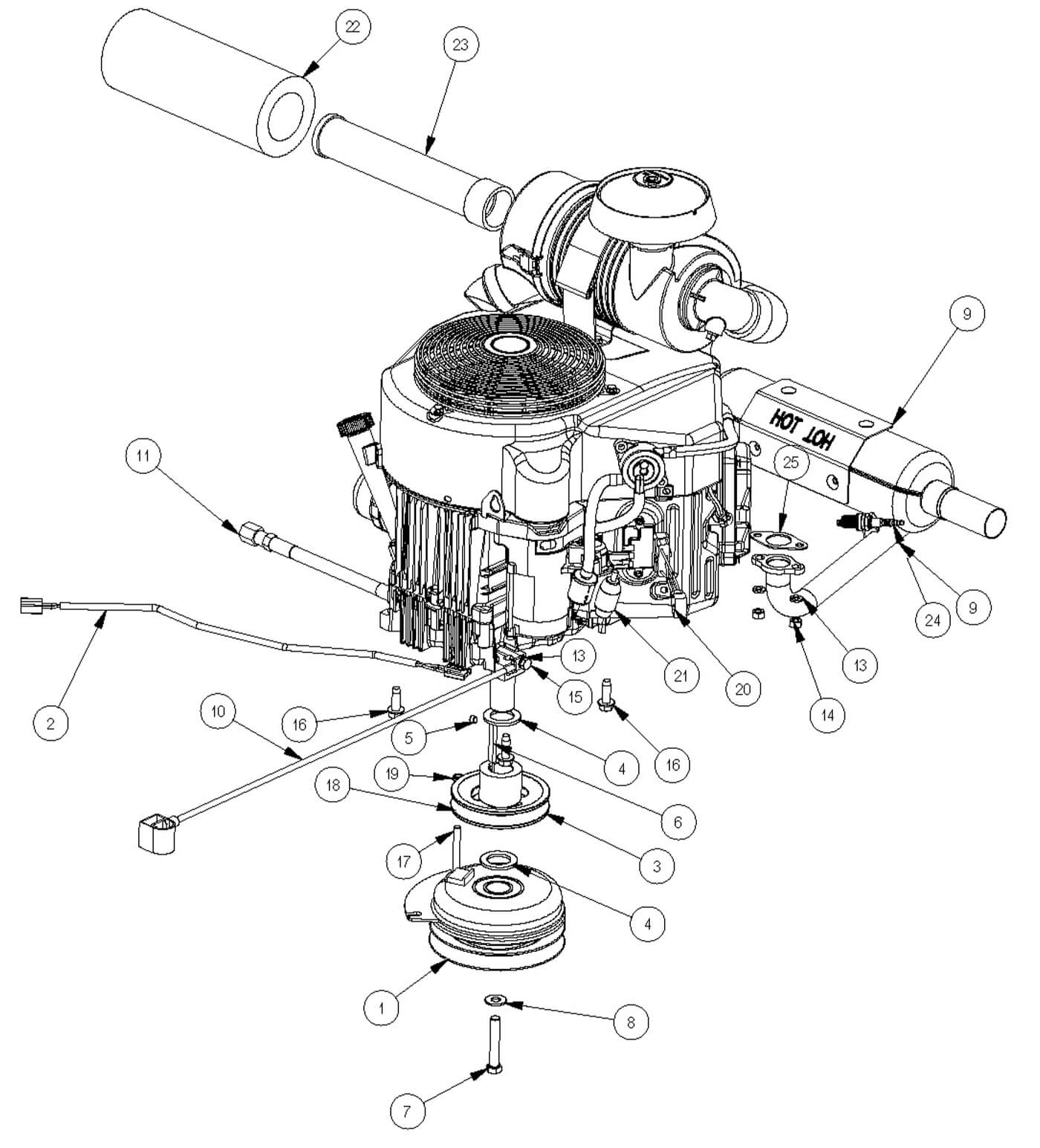

FX 691
Parts Index
- 1 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 2 Clutch Pigtail (Qty 1)
- 3 4 3/4 Motor Pulley (Qty 1)
- 4 1.140x1.750x .132 Flat Washer (Qty 2)
- 5 5/16-24 x 1/4 Set Screw (Qty 1)
- 6 1/4 X 2 Square Key Stock (Qty 1)
- 7 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 8 3/8 USS Flat Washer Zinc (Qty 1)
- 9 Exhaust-Stand On-FX691V Kawasaki (Qty 1)
- 10 24 inch Black Cable - MZ/ZT (Qty 1)
- 11 Kawasaki Oil Drain (Qty 1)
- 12 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 13 5/16 Lock washer Zinc (Qty 5)
- 14 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 15 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 16 3/8 x 1 1/8 Engine Mounting Bolt (Qty 1)
- 17 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 18 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 19 5/16-18 Nylock Jam Nut (Qty 1)
- 20 2019 Harness Adaptor-R-Series FX/35KA (Qty 1)
- 21 Universal Inline Fuel Filter (Qty 1)
- 22 Canister Air Fil Outer2010&Old (Qty 1)
- 23 Canister Air Filter - Inner (Qty 1)
- 24 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 25 Exhaust Gasket for 015-0077-00 (Qty 2)
- 26 Kawasaki Oil Filter (Qty 1)
-
-
2#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
3#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
4#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 2Regular price $1.19 USDRegular priceUnit price per
-
5#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
6#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
7#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
8#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
9#015-0692-00
Exhaust-Stand On-FX691V Kawasaki
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
10#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
11#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
12#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
13#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
14#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
15#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
16#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
17#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
18#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
19#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
20#086-9002-19
2019 Harness Adaptor-R-Series FX/35KA
Qty Used: 1Regular price $18.96 USDRegular priceUnit price per
-
21#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
22#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
23#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
24#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
25#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
26#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
