Fenders

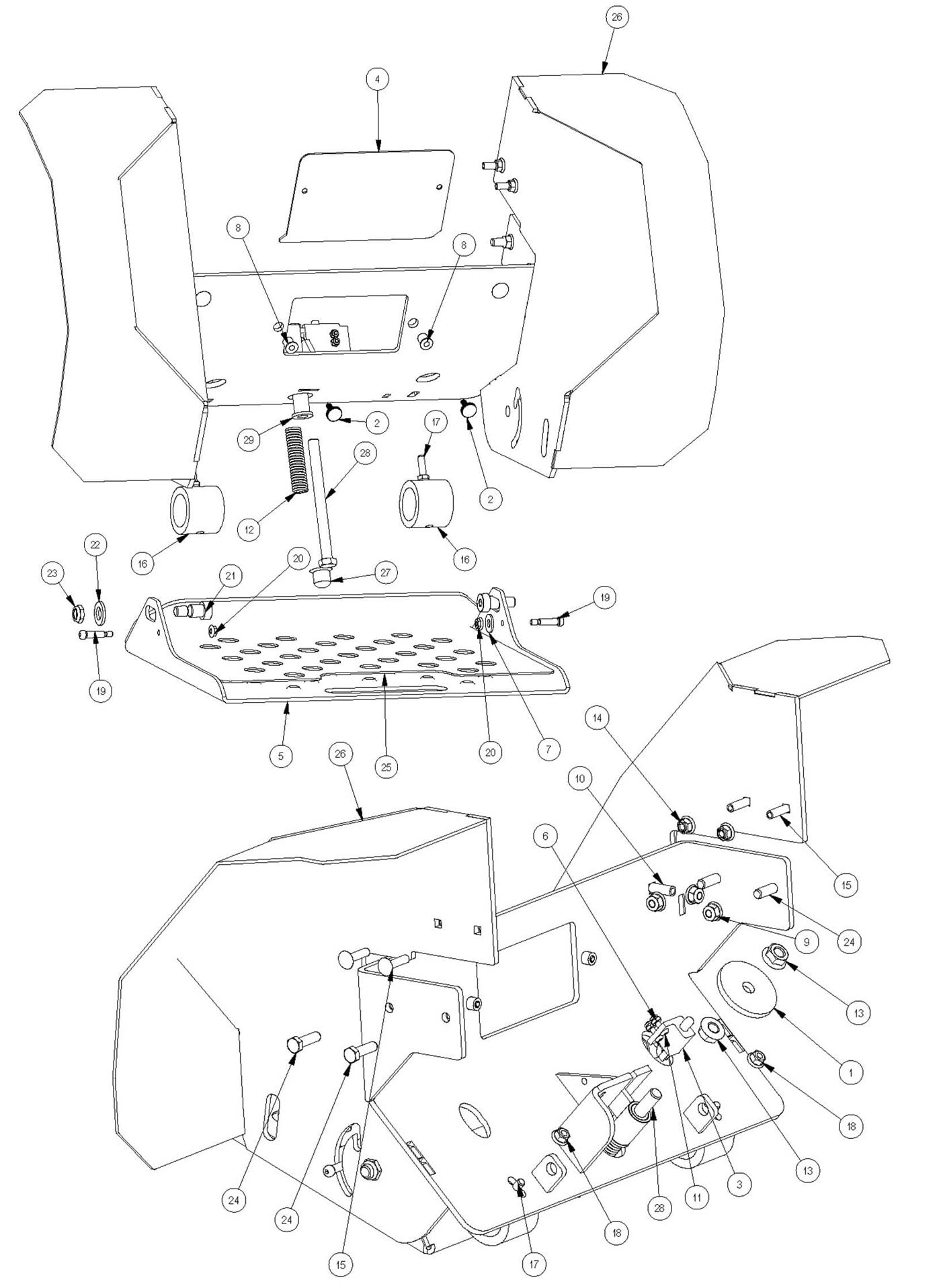

Parts Index
- 1 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 2 1/4-20 x 3/4 Knurled Thumb Screw (Qty 2)
- 3 2017? Walk Behind-Safety Switch (Qty 1)
- 4 2019 Stand On Access Panel Plate--Black (Qty 1)
- 5 2020 36" Platform Plate--Orange (Qty 1)
- 6 10-24 Nylon Insert Locknut Zin (Qty 2)
- 7 5/16 USS Flat Washer Zinc (Qty 2)
- 8 Wellnut 1/4-20 x 5/8 (Qty 2)
- 9 3/8 Nylock Flange Nut (Qty 6)
- 10 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 11 10-24 X 3/4 BS C/S 18-8 SS (Qty 2)
- 12 3-1/8" x 0.75 OD x 0.568 ID Compression Spring (Qty 1)
- 13 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
- 14 5/16-18 Nylon Flange Nut (Qty 4)
- 15 5/16-18 X 1-1/4 Carriage Bolt (Qty 4)
- 16 2019 Revolt Platform Dampener (Qty 2)
- 17 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 18 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 19 Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16" (Qty 2)
- 20 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 21 5/8 x 5/8 Shoulder Bolt (Qty 2)
- 22 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 23 1/2-13 Nylon Insert Jam Locknut (Qty 2)
- 24 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 25 Grip Tape for 026-0158-00 (Qty 1)
- 27 Hex Nut Cap (Qty 1)
- 28 1/2-13 X 6 HEX CAP SCREW GR 5 ZC/ROHS 2 INCH MINIM (Qty 1)
- 29 Nylon 6 6 Sleeve Washer/Bushing (Qty 1)
-
1#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
2#030-0015-00
1/4-20 x 3/4 Knurled Thumb Screw
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
3#077-0002-00
2017? Walk Behind-Safety Switch
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
4#026-0063-00
2019 Stand On Access Panel Plate--Black
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
5#026-0158-00
2020 36" Platform Plate--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
6#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
7#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
8#013-0057-00
Wellnut 1/4-20 x 5/8
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
9#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 6Regular price $1.49 USDRegular priceUnit price per
-
10#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
11#018-8057-00
10-24 X 3/4 BS C/S 18-8 SS
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
12#034-1001-00
3-1/8" x 0.75 OD x 0.568 ID Compression Spring
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
13#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
14#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
15#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
16#087-0003-00
2019 Revolt Platform Dampener
Qty Used: 2Regular price $79.60 USDRegular priceUnit price per
-
17#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
18#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
19#018-0059-00
Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
20#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
21#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 2Regular price $14.59 USDRegular priceUnit price per
-
22#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
23#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
24#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
25#088-0051-00
Grip Tape for 026-0158-00
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
-
27#013-0029-00
Hex Nut Cap
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
28#018-0062-00
1/2-13 X 6" Hex Head Bolt Gr5
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
29#032-0006-00
Nylon 6 6 Sleeve Washer
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
