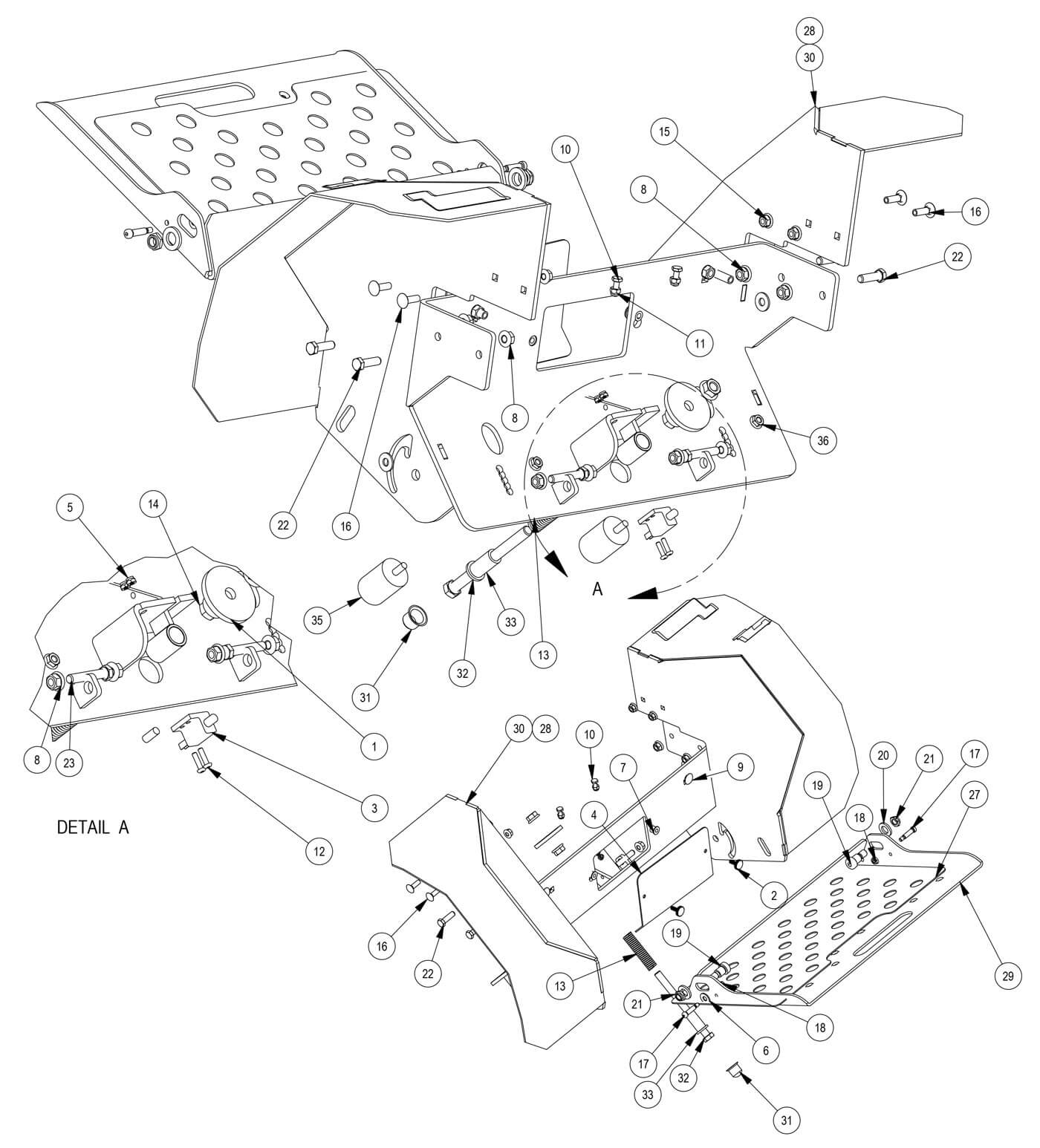

Fender Assembly

Parts Index
- 1 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 2 1/4-20 x 3/4 Knurled Thumb Screw (Qty 2)
- 3 2017? Walk Behind-Safety Switch (Qty 1)
- 4 2019 Stand On Access Panel Plate--Black (Qty 1)
- 5 10-24 Nylon Insert Locknut Zin (Qty 2)
- 6 5/16 USS Flat Washer Zinc (Qty 4)
- 7 Wellnut 1/4-20 x 5/8 (Qty 2)
- 8 3/8 Nylock Flange Nut (Qty 10)
- 9 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 10 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 11 1/4-20 Nylon Insert Locknut Zi (Qty 2)
- 12 10-24 X 3/4 BS C/S 18-8 SS (Qty 2)
- 13 3-1/8" x 0.75 OD x 0.568 ID Compression Spring (Qty 1)
- 14 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
- 15 5/16-18 Nylon Flange Nut (Qty 4)
- 16 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 17 Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16" (Qty 2)
- 18 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 19 5/8 x 5/8 Shoulder Bolt (Qty 2)
- 20 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 21 1/2-13 Nylon Insert Jam Locknut (Qty 2)
- 22 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 23 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)

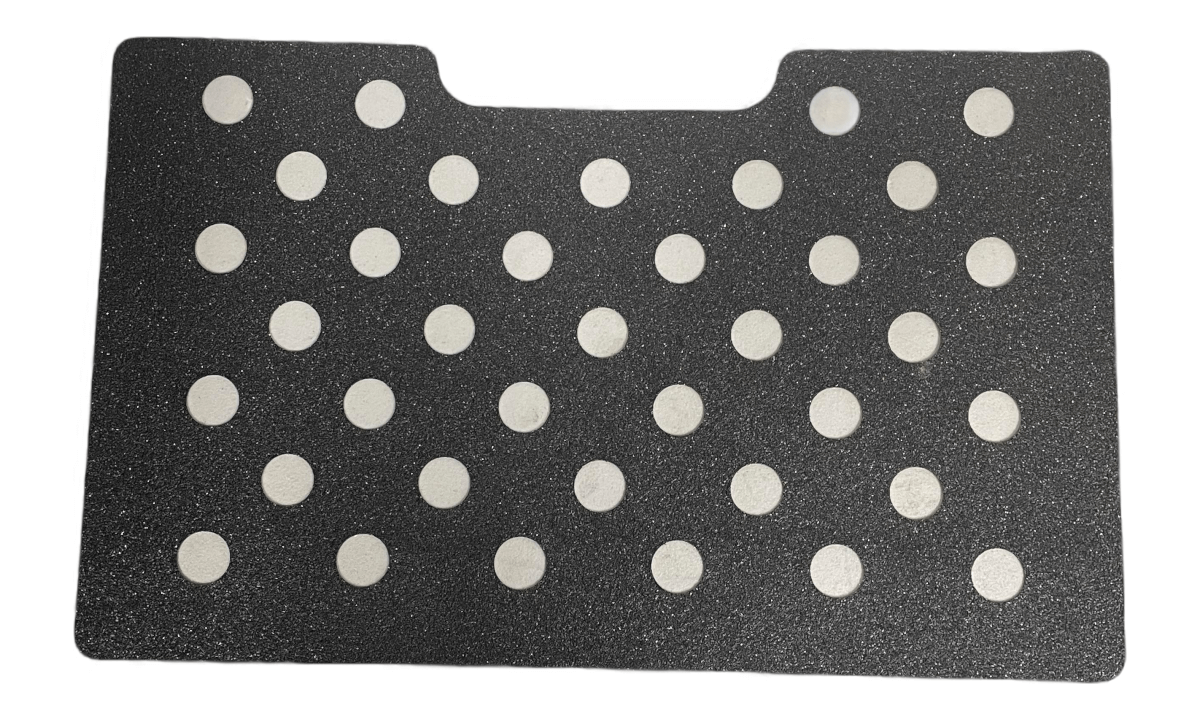

- 27 Grip Tape for 026-0062-00 (Qty 1)
- 28 2023 61" Stand On Platform Support--Orange (Qty 1)
- 29 2023 Revolt Platform--Orange (Qty 1)
- 30 2023 48/54" Stand On Platform Support--Orange (Qty 1)
- 31 Hex Nut Cap (Qty 1)
- 32 1/2-13 X 6 HEX CAP SCREW GR 5 ZC/ROHS 2 INCH MINIM (Qty 1)
- 33 Nylon 6 6 Sleeve Washer/Bushing (Qty 1)

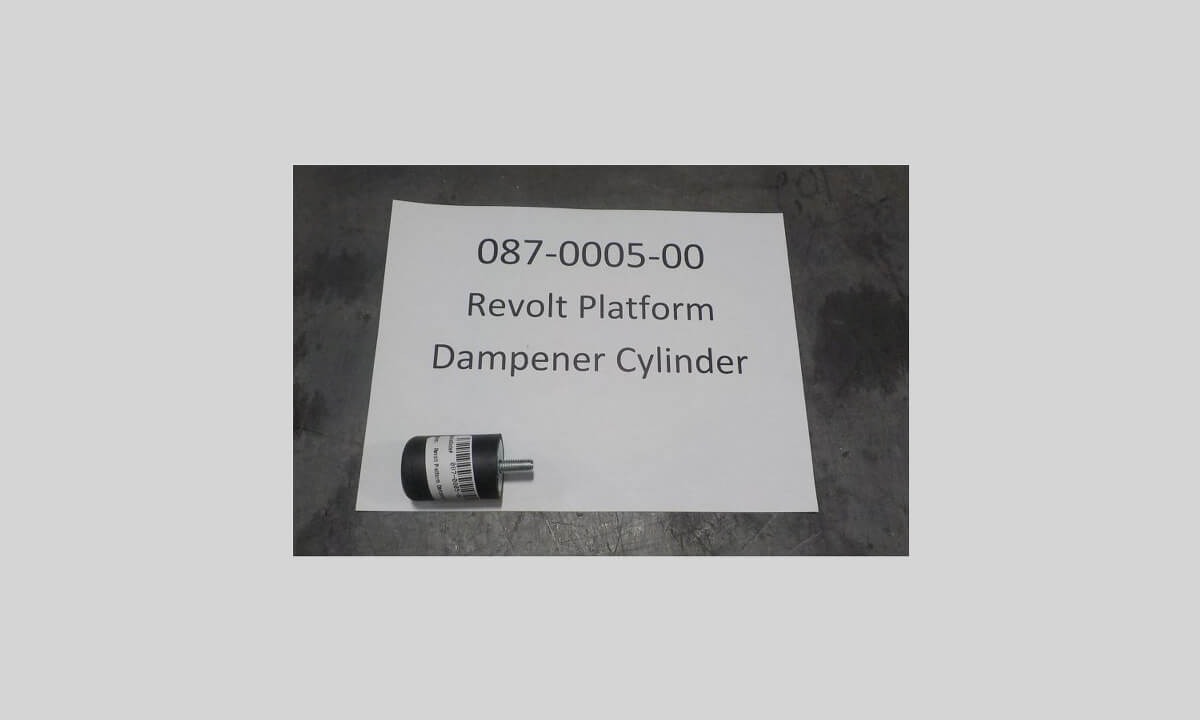

- 35 Revolt Platform Dampener Cylinder (Qty 2)
- 36 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
