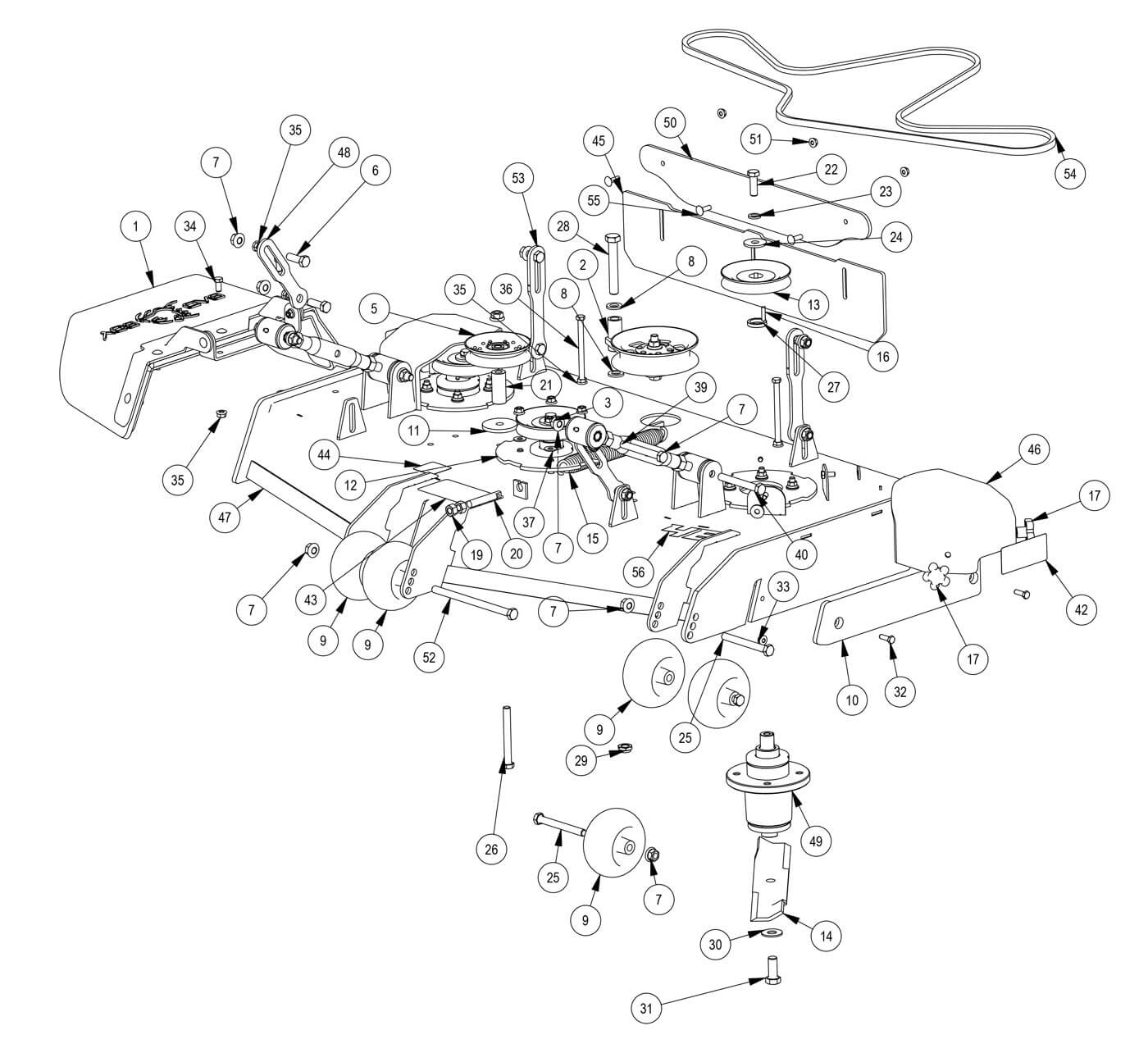

48" Deck
Parts Index
- 1 R-Series, Revolt Chute Assembly (Qty 1)
- 2 2019 Revolt Deck Idler (Qty 1)
- 3 3/8 Nylock Flange Nut (Qty 14)
- 4 5/16-24 x 1/4 Set Screw (Qty 3)
- 5 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 6 1/2-13 X 1-1/2 GR 5 Hex Bolt (Qty 8)
- 7 1/2-13 Nylon Insert Flange Nut (Qty 17)
- 8 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 9 Deck Wheel (Qty 5)
- 10 Bumper (Deck) (Qty 1)
- 11 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 12 Deck Spindle Support Plate 60"--Orange (Qty 3)
- 13 5" Spindle Deck Pulley - DB-80 (Qty 3)
- 14 48" ZT/Mav/Compact Outlaw Blade (Qty 3)
- 15 Deck Spring 2019 Models (Qty 1)
- 16 1/4 x 1 Square Key (Qty 3)
- 17 5/16 Black Plastic Knob (Qty 4)
- 18 .360 ID Black Plastic Washer (Qty 4)
- 19 1/2-13 Hex Nuts Zinc (Qty 2)
- 20 All Thread (Qty 1)
- 21 2019 Stand On Stationary Idler Spacer (Qty 1)
- 22 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 23 1/2 Lockwasher Zinc (Qty 3)
- 24 1/2 Belleville Washer #K2000-G (Qty 3)
- 25 1/2-13 X 4-1/2 GR 5 Hex Bolts (Qty 3)
- 26 1/2 -13 x 4.25 gr. 5 hex bolt (Qty 1)
- 27 Spacer ( Front Fork and Suspension ) (Qty 3)
- 28 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 29 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 30 5/8 Flat Washer (Qty 3)
- 31 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 32 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 33 5/16-18 Nylon Flange Nut (Qty 2)
- 34 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 2)
- 35 3/8-16 Hex Flange Nuts Zinc w/ (Qty 12)
- 36 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 37 5/16 USS Flat Washer Zinc (Qty 12)
- 38 3/8-16 x 1-3/4 Hex C/S (GR 5) ZC (Qty 12)
- 39 Toplink (Qty 2)
- 40 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 4)
- 42 Danger Decal-Spindle/Discharge (Qty 1)
- 43 2019 Revolt Deck Belt Route Decal (Qty 1)
- 44 Rubber Bushing Turnbuckle Patent Decal (Qty 1)
- 45 2023 MZ Stripe Kit Rubber (Qty 1)
- 46 2023 Revolt Pulley Covers (Qty 1)
- 48 OBSOLETE USE 039-2125-17 (Qty 1)
- 49 Commercial Cast Iron Spindle (Qty 1)
- 50 2023 4' & 5' Striping Kit Plate--Orange (Qty 1)
- 51 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 52 1/2-13 x 8" Grade 5 Hex Bolt (Qty 1)
- 53 48"/54" Rear Deck Hanger--Black (Qty 2)
- 54 36 ZT/ 2019 48" Walk Behind/ 48" Revolt Deck Belt (Qty 1)
- 55 5/16-18 X 1 Carriage Bolt Zinc (Qty 3)
- 56 MY24 48" Deck Decal (Qty 1)
-
1#210-7000-98
R-Series, Revolt Chute Assembly
Qty Used: 1Regular price $159.22 USDRegular priceUnit price per
-
2#039-6945-19
2019 Revolt Deck Idler
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
3#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
4#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
5#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
6#018-5006-00
1/2-13 X 1-1/2 GR 5 Hex Bolt
Qty Used: 8Regular price $0.89 USDRegular priceUnit price per
-
7#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 17Regular price $1.39 USDRegular priceUnit price per
-
8#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
9#022-1001-00
Deck Wheel
Qty Used: 5Regular price $15.99 USDRegular priceUnit price per
-
10#029-7036-00
Bumper (Deck)
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
11#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
12#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 3Regular price $13.26 USDRegular priceUnit price per
-
13#033-6003-00
5" Spindle Deck Pulley - DB-80
Qty Used: 3Regular price $39.79 USDRegular priceUnit price per
-
14#038-5350-00
48" ZT/Mav/Compact Outlaw Blade with Fusion
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
15#034-2030-00
Deck Spring 2019 Models
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
16#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
17#045-6043-00
5/16 Black Plastic Knob
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
18#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
19#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
20#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
21#025-0032-00
2019 Stand On Stationary Idler Spacer
Qty Used: 1Regular price $7.69 USDRegular priceUnit price per
-
22#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
23#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
24#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 3Regular price $4.69 USDRegular priceUnit price per
-
25#018-7050-00
1/2-13 X 4-1/2 GR 5 Hex Bolts
Qty Used: 3Regular price $2.39 USDRegular priceUnit price per
-
26#018-7049-00
1/2 -13 x 4.25 gr. 5 hex bolt
Qty Used: 1Regular price $1.74 USDRegular priceUnit price per
-
27#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 3Regular price $5.83 USDRegular priceUnit price per
-
28#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
29#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
30#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
31#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
32#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
33#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
34#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
35#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
36#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
37#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
38#018-0075-00
3/8-16 x 1-3/4 Hex C/S (GR 5) ZC
Qty Used: 12Regular price $2.99 USDRegular priceUnit price per
-
-
40#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
42#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
43#091-4019-00
2019 Revolt Deck Belt Route Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
44#091-8001-00
Rubber Bushing Turnbuckle Patent Decal
Qty Used: 1Regular price $0.73 USDRegular priceUnit price per
-
45#084-5005-00
2023 MZ Stripe Kit Rubber
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
46#014-4006-00
2023 Revolt Pulley Covers
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
48#039-2125-00
OBSOLETE USE 039-2125-17
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
49#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 1Regular price $291.91 USDRegular priceUnit price per
-
50#026-0307-00
2023 4' & 5' Striping Kit Plate--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
51#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
52#018-0046-00
1/2-13 x 8" Grade 5 Hex Bolt
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
53#039-0245-00
48"/54" Rear Deck Hanger--Black
Qty Used: 2Regular price $19.99 USDRegular priceUnit price per
-

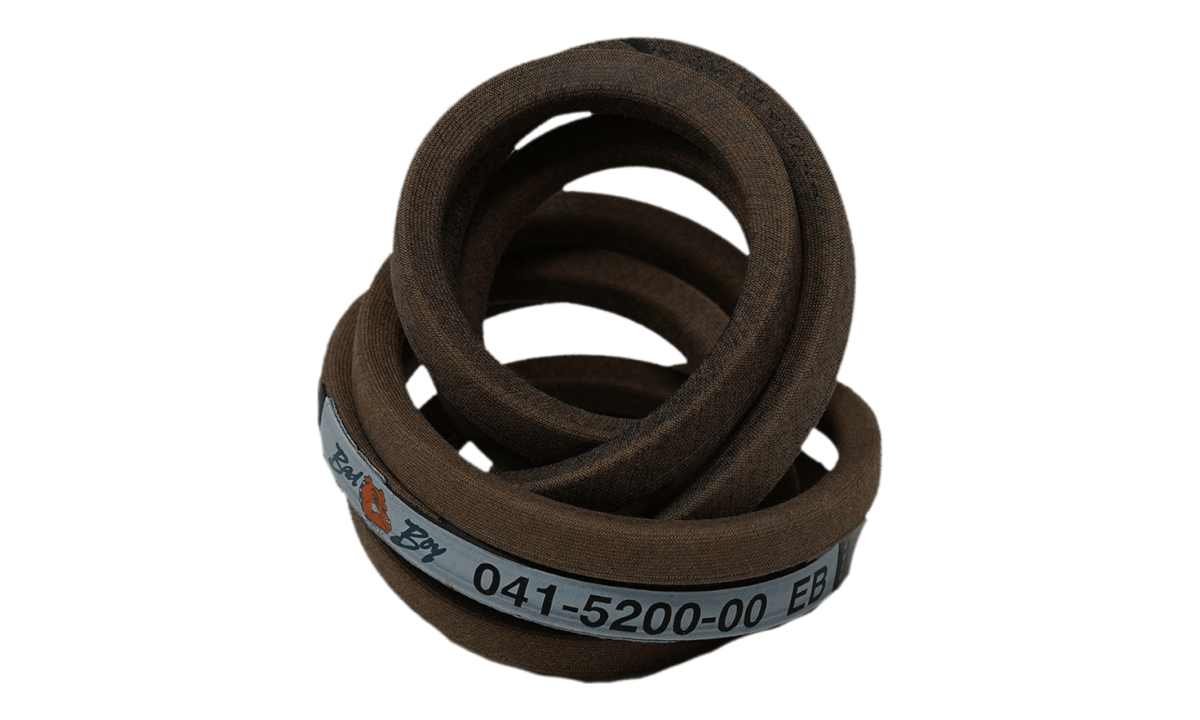

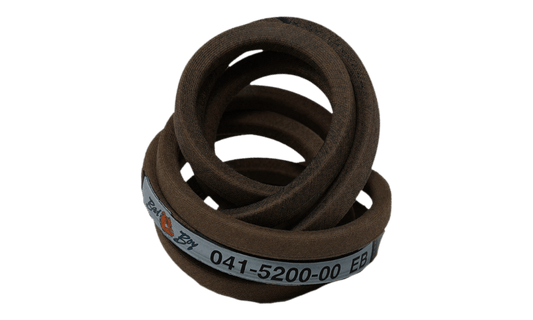

54#041-5200-00
36 ZT/ 2019 48" Walk Behind/ 48" Revolt Deck Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
55#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
56#091-0503-00
MY24 48" Deck Decal
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
