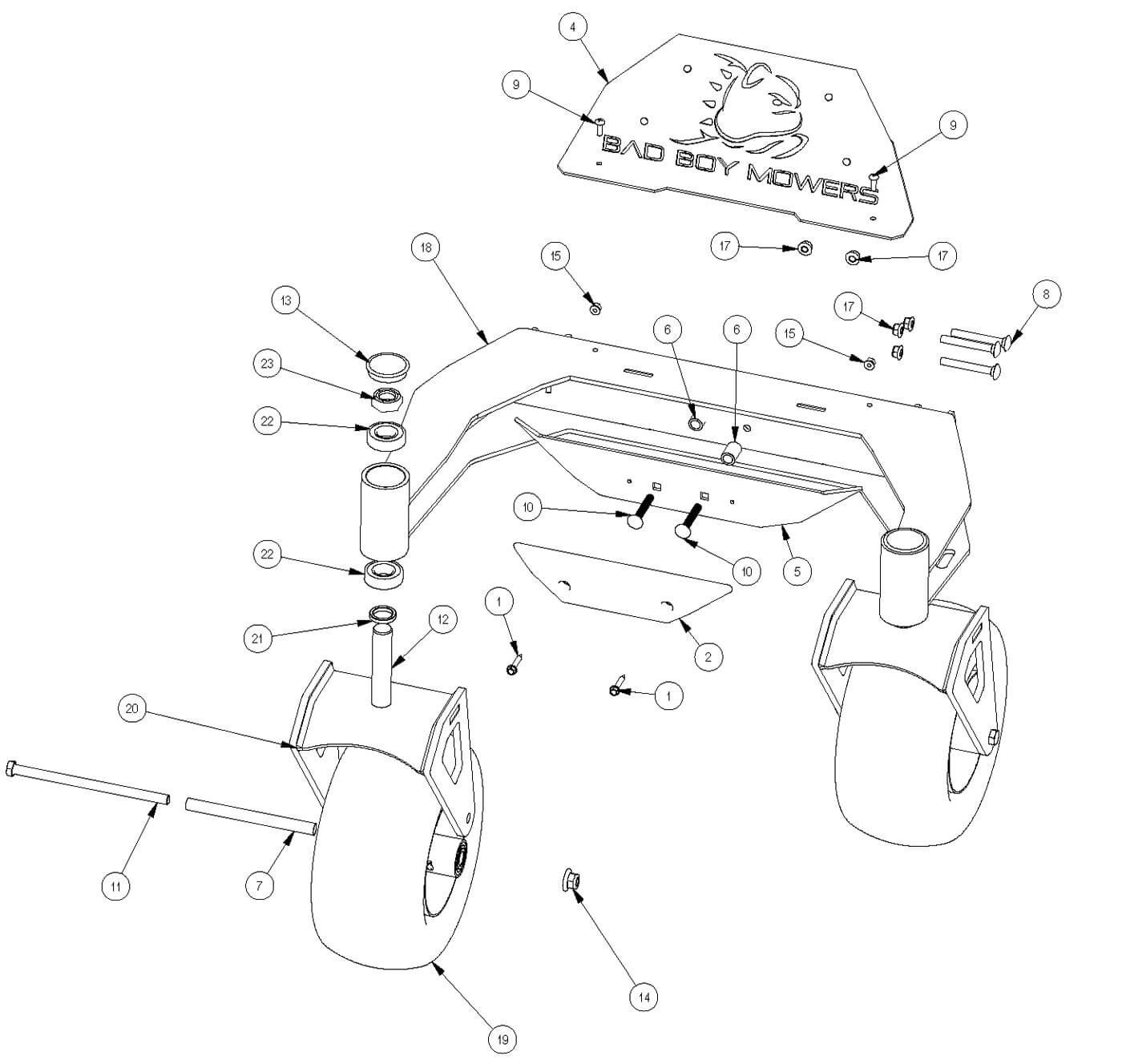

36" Front End
Parts Index
- 1 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 2 ZT, Mav, HD, Revolt Front Bumper (Qty 1)
- 3 Exhaust Backer Plate--Orange (Qty 1)
- 4 Exhaust Shield Plate--Black (Qty 1)
- 5 2019 Stand On Front Bumper Plate--Orange (Qty 1)
- 6 .502x.750x1.130 Length Spacer (Qty 2)
- 7 Front Wheel Spanner-All Models (Qty 2)
- 8 3/8-16 x 3 Carriage Bolt Zinc GR5 (Qty 6)
- 9 1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head (Qty 2)
- 10 3/8 x 2 1/2 Carriage Bolt (Qty 2)
- 11 1/2-13x8 1/2 Gr5 Hex Bolt (Qty 2)
- 12 1-14 X 5 BOLT GR 8 ZC YELLOW (Qty 2)
- 13 Bearing Retainer Cap (Qty 2)
- 14 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 15 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 16 3/16" Diameter, for 0.1260"-0.25" Material Thick (Qty 4)
- 17 3/8 Nylock Flange Nut (Qty 8)
- 19 13x6.50-6 Black No Flat Assembly (Qty 2)
- 20 REV/MAV front fork (Qty 2)
- 21 Spacer ( Front Fork and Suspension ) (Qty 2)
- 22 Caster Bearing (Qty 4)
- 23 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
-
1#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
-
3#026-0085-00
Exhaust Backer Plate--Orange
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
4#026-0084-00
Exhaust Shield Plate--Black
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
-
5#026-0049-00
2019 Stand On Front Bumper Plate--Orange
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
6#025-5337-00
.502x.750x1.130 Length Spacer
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
7#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 2Regular price $9.49 USDRegular priceUnit price per
-

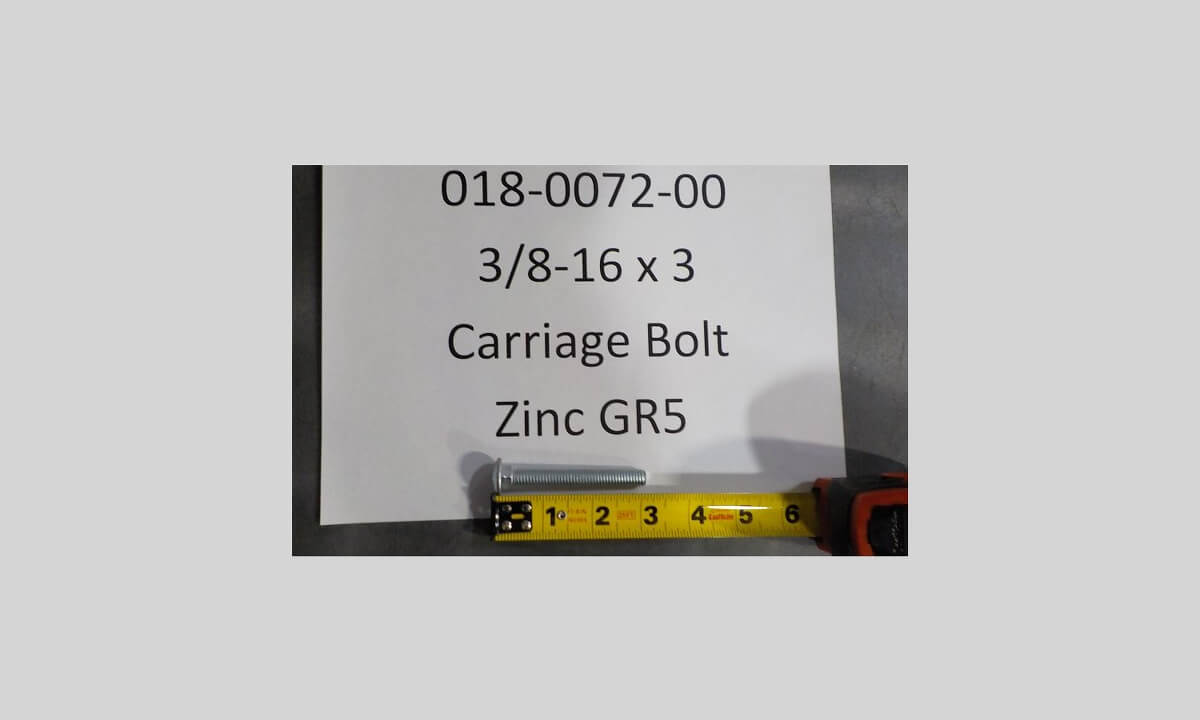

8#018-0072-00
3/8-16 x 3 Carriage Bolt Zinc GR5
Qty Used: 6Regular price $1.99 USDRegular priceUnit price per
-
No sequence found for SKU:
1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head
Regular price $0.00 USDRegular priceUnit price per
-
10#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
11#018-0040-00
1/2-13x8 1/2 Gr5 Hex Bolt
Qty Used: 2Regular price $14.59 USDRegular priceUnit price per
-
12#018-0005-00
1-14 X 5 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $5.89 USDRegular priceUnit price per
-
13#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
14#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
15#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-

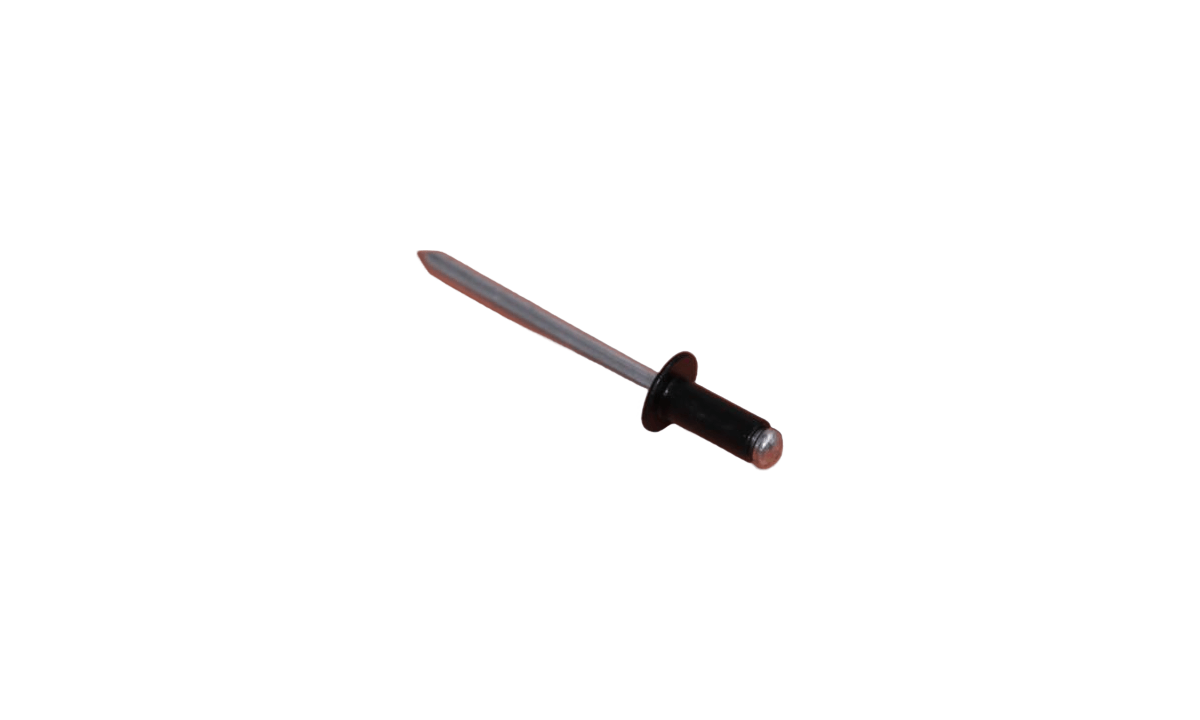

16#013-0026-00
3/16" Diameter, for 0.1260"-0.25" Material Thick
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
17#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 8Regular price $1.49 USDRegular priceUnit price per
-
19#022-3088-00
13x6.50-6 Black No Flat Assembly
Qty Used: 2Regular price $145.99 USDRegular priceUnit price per
-
20#023-1010-00
REV/MAV front fork
Qty Used: 2Regular price $145.95 USDRegular priceUnit price per
-
21#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
22#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
23#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
