36" Deck Assemblies

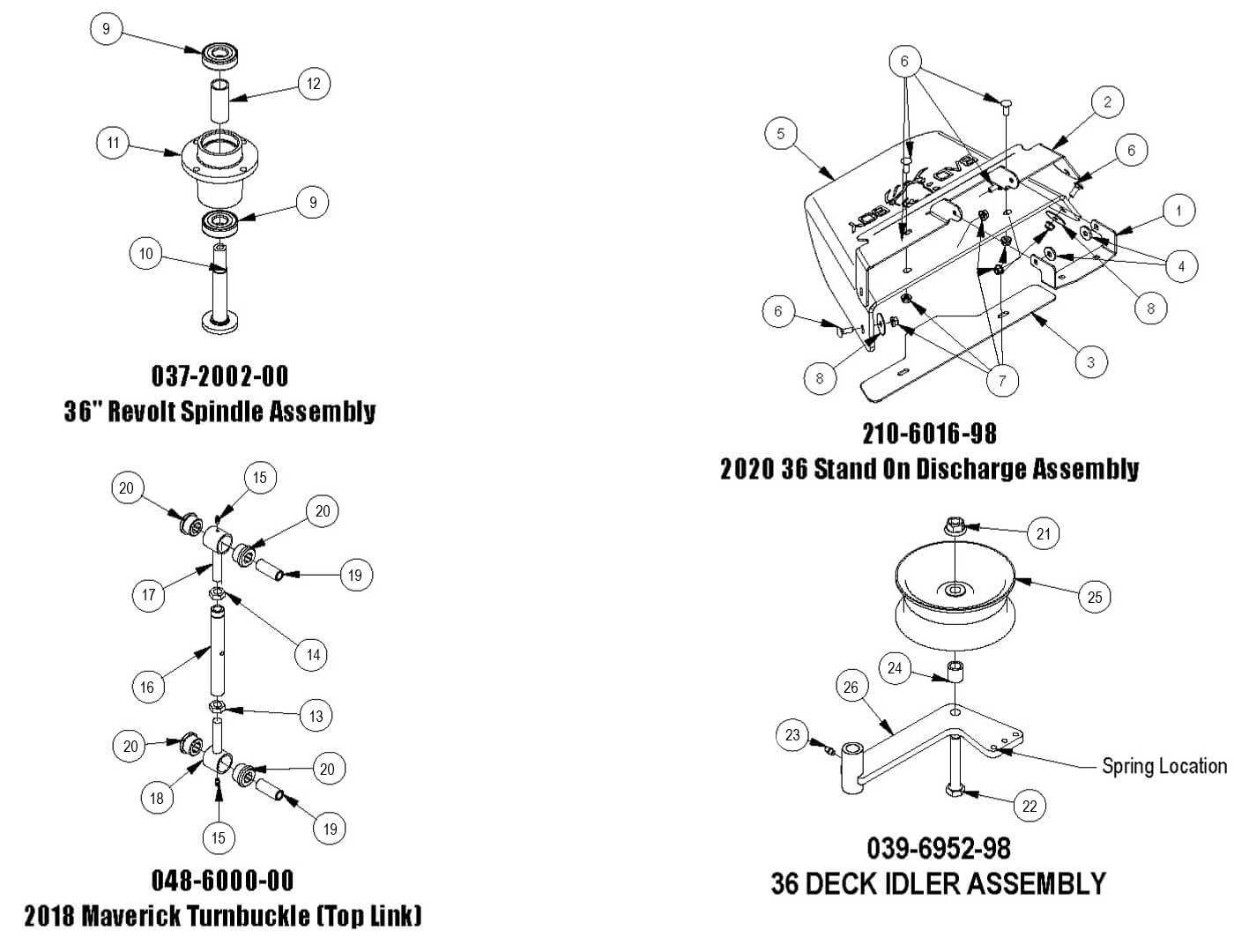

Parts Index
- 1 2020 36" Chute Hanger Bracket (Qty 1)
- 2 Discharge Chute Bracket 48 MZ (Qty 1)
- 3 OBSOLETE USE 039-4890-00 (Qty 1)
- 4 .360 ID Plastic Washer (Qty 2)
- 5 2017 MZ Discharge Chute Rubber (Qty 1)
- 6 5/16 x 7/8 Carriage Bolt (Qty 6)
- 7 5/16-18 Nylon Flange Nut (Qty 6)
- 8 5/16" Fender Washer (Qty 2)
- 9 MZ Spindle Bearing (Qty 2)
- 10 36" Revolt Spindle Shaft (Qty 1)
- 11 MZ Spindle Housing (Qty 1)
- 12 MZ Spindle Spacer-Component (Qty 1)
- 13 Nut, 5/8-18 RH (Qty 1)
- 14 Nut, 5/8-18 LH (Qty 1)
- 15 1/4-28 Threaded Grease Fitting (Qty 2)
- 16 2018 Maverick Toplink Body (Qty 1)
- 17 2018 Maverick Topllink Bushing Retainer-Left Hand (Qty 1)
- 18 2018 Maverick Topllink Bushing Retainer-Right Hand (Qty 1)
- 19 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 20 2018 Maverick Topllink Bushing (Qty 4)
- 21 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 22 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 23 1/4-28 Threaded Grease Fitting (Qty 1)
- 24 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 25 Double Bearing Flat Idler (Qty 1)
- 26 2020 SD/36" Deck Idler Weldment--Plated (Qty 1)
-
1#039-0152-00
2020 36" Chute Hanger Bracket
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
2#039-4891-00
Discharge Chute Bracket 48 MZ
Qty Used: 1Regular price $33.11 USDRegular priceUnit price per
-
3#039-4892-00
OBSOLETE USE 039-4890-00
Qty Used: 1Regular price $33.11 USDRegular priceUnit price per
-
4#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
5#210-6014-00
2017 MZ Discharge Chute Rubber
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
6#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 6Regular price $1.49 USDRegular priceUnit price per
-
7#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
8#019-0002-00
5/16" Fender Washer
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
9#037-6024-00
MZ Spindle Bearing
Qty Used: 2Regular price $32.10 USDRegular priceUnit price per
-
10#037-6025-01
36" Revolt Spindle Shaft
Qty Used: 1Regular price $59.00 USDRegular priceUnit price per
-
11#037-6027-00
MZ Spindle Housing
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
12#037-6028-00
MZ Spindle Spacer-Component
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
13#013-0019-00
Nut, 5/8-18 RH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
14#013-0020-00
Nut, 5/8-18 LH
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
1523#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 1Regular price $0.50 USDRegular priceUnit price per
-
16#048-6001-00
2018 Maverick Toplink Body
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
17#048-6002-00
2018 Maverick Topllink Bushing Retainer-Left Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
18#048-6003-00
2018 Maverick Topllink Bushing Retainer-Right Hand
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
19#048-6004-00
2018 Maverick Topllink Bushing Sleeve
Qty Used: 2Regular price $10.55 USDRegular priceUnit price per
-
20#048-6005-00
2018 Maverick Topllink Bushing
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
-
21#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
22#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
24#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
25#033-5000-00
Double Bearing Flat Idler
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
26#039-6952-00
2020 SD/36" Deck Idler Weldment--Plated
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
