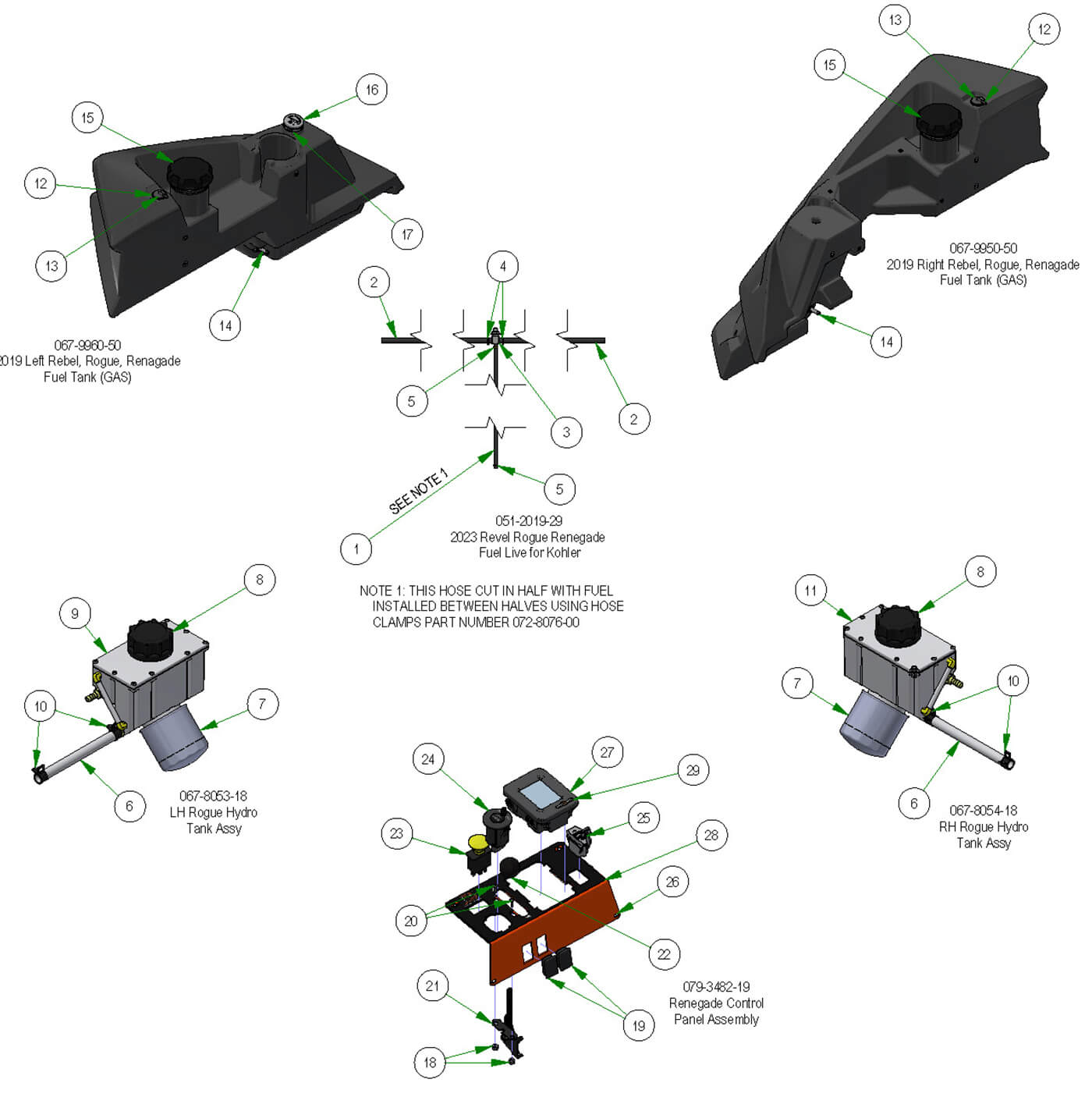

Tank Subassemblies
Parts Index
- 1 22" 1/4" Fuel Line No Clamp (Qty 1)
- 2 26" 5/16 Fuel Line No Clamps (Qty 2)
- 3 3 Way Fuel Shut-Off Valve 5/16 x 5/16 x 1/4 (Qty 1)
- 4 5/8 Fuel Line Clamp (Qty 2)
- 5 1/4 Fuel Line Clamp (Qty 2)
- 6 21" 1/2 Braided Hose (Qty 1)
- 7 Hydraulic Filter-All Models (Qty 1)
- 8 Hydraulic Tank Cap w/Dipstick (Qty 1)
- 9 2019 RG/RN Hydro Tank LH (Qty 1)
- 10 1/2 Hose Clamp (Qty 2)
- 11 2019 RG/RN Hydro Tank RH (Qty 1)
- 12 Old Style Grommet for Fule Gau (Qty 1)
- 13 Rollover Valve and Grommet New (Qty 1)
- 14 Fuel Pickup for 2019 Fuel Tanks (Qty 1)
- 15 Fuel Tank Cap for 2019 Fuel Tank (Qty 1)
- 16 Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw (Qty 1)
- 17 New Style Grommet for 2017 MZ Magnum Fuel Gauge (Qty 1)
- 18 10-24 Nylon Insert Locknut Zin (Qty 2)
- 19 Light Plug (Qty 2)
- 20 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 21 Universal Throttle Head - 2012 (Qty 1)
- 22 Throttle / Brake Head Ball (Qty 1)
- 23 PTO Engager-Switch for Blades (Qty 1)
- 24 2019 Push to Start Switch w/fob (Qty 1)
- 25 USB Port (Qty 1)
- 26 Digital Control Panel--Orange (Qty 1)
- 27 2019 LED Display (Qty 1)
- 28 2022 Renegade(GAS) control panal decal (Qty 1)
- 29 2022 Digital Display Decal (Qty 1)
-
1#051-8067-22
22" 1/4" Fuel Line No Clamp
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
2#051-8075-26
26" 5/16 Fuel Line No Clamps
Qty Used: 2Regular price $17.50 USDRegular priceUnit price per
-
3#067-6058-00
3 Way Fuel Shut-Off Valve 5/16 x 5/16 x 1/4
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
4#072-8068-00
5/8 Fuel Line Clamp
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
5#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
6#051-8064-21
21" 1/2 Braided Hose
Qty Used: 1Regular price $10.60 USDRegular priceUnit price per
-
7#063-8014-00
Hydraulic Filter-All Models
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
8#066-8050-00
Hydraulic Tank Cap w/Dipstick
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
9#067-8053-00
2019 RG/RN Hydro Tank LH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
10#072-8066-00
1/2 Hose Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
11#067-8054-00
2019 RG/RN Hydro Tank RH
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
12#067-6054-00
Old Style Grommet for Fule Gau
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
13#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
14#067-9901-00
Fuel Pickup for 2019 Fuel Tanks
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
15#067-9904-00
Fuel Tank Cap for 2019 Fuel Tank
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
16#067-4080-00
Fuel Gauge Assembly w/ Grommet-2014 ZT,2015 Outlaw
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
17#067-6056-00
New Style Grommet for 2017 MZ Magnum Fuel Gauge
Qty Used: 1Regular price $6.49 USDRegular priceUnit price per
-
18#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
19#018-1040-00
Light Plug
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
20#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
21#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
22#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
23#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
24#077-0004-00
2019 Push to Start Switch w/fob
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
-
26#079-3482-00
Digital Control Panel--Orange
Qty Used: 1Regular price $51.75 USDRegular priceUnit price per
-
27#086-0013-00
2019 LED Display
Qty Used: 1Regular price $239.99 USDRegular priceUnit price per
-
28#091-4029-22
2022 Renegade(GAS) control panal decal
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
29#091-4030-22
2022 Digital Display Decal
Qty Used: 1Regular price $7.69 USDRegular priceUnit price per
