Steering

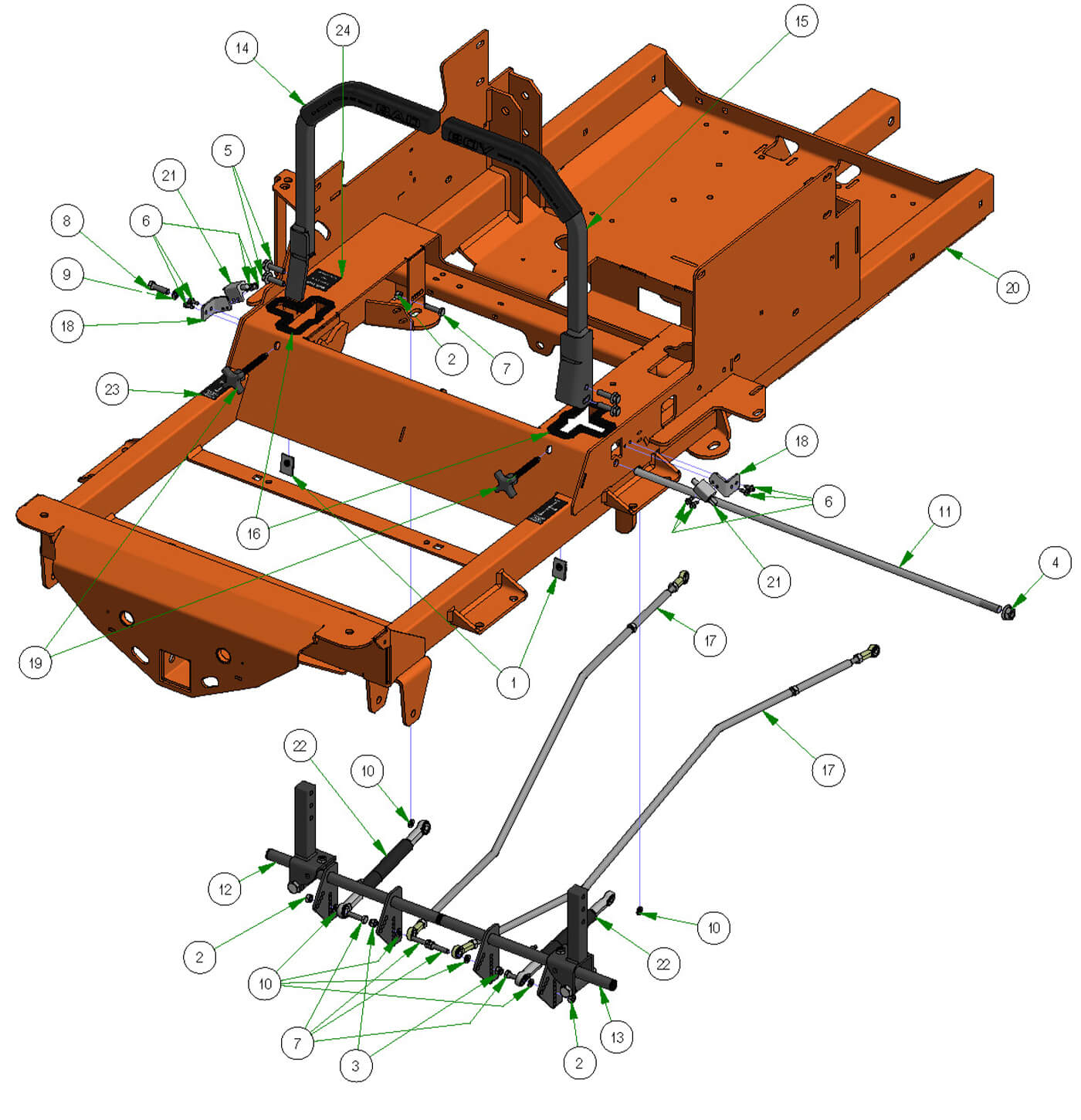

Parts Index
- 1 Extruded Nut 3/8"-16 3/4" Hole Center With Patch (Qty 2)
- 2 5/16-18 Hex Nuts Zinc (Qty 4)
- 3 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 4 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 5 3/8"-16 Thread Size, 1" 1/4 Long Grade 5 (Qty 4)
- 6 12-24 x 1/2 HWH Bolt (Qty 8)
- 7 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 6)
- 8 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 9 3/8 Lockwasher Zinc (Qty 1)
- 10 5/16 Lock washer Zinc (Qty 6)
- 11 2019 Steering Actuator Rod (Qty 1)
- 12 2024 R Series RH Arm Rod Assembly (Qty 1)
- 13 2024 R Series LH Arm Rod Assembly (Qty 1)
- 14 R-Series Square Drive Arm RH Assembly (Qty 1)
- 15 R-Series Square Drive Arm LH Assembly (Qty 1)
- 16 Drive Arm Bushing (Qty 2)
- 17 2019 Renegade Push Rod Assembly (Qty 2)
- 18 2019 Arm Switch Bracket--Plated (Qty 2)
- 19 Star Knob 3/8- 16 x3" (Qty 2)
- 20 2019 Horizontal Gas Frame--Orange (Qty 1)
- 21 Safety Switch (Qty 2)
- 22 Damper (Heim Ends) (Qty 2)
- 23 R-Series LH/RH Steering Control Decal (Qty 1)
- 24 2019 Deck Release Decal (Qty 1)
-
1#013-0021-00
Extruded Nut 3/8"-16 3/4" Hole Center With Patch
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
2#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
3#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
4#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
5#018-0078-00
3/8"-16 Thread Size, 1" 1/4 Long Grade 5
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
6#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 8Regular price $1.99 USDRegular priceUnit price per
-
7#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
8#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
9#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
10#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
11#028-0051-00
2019 Steering Actuator Rod
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
No sequence found for SKU:
2024 R Series RH Arm Rod Assembly
Regular price $0.00 USDRegular priceUnit price per
-
No sequence found for SKU:
2024 R Series LH Arm Rod Assembly
Regular price $0.00 USDRegular priceUnit price per
-
14#031-9070-00
R-Series Square Drive Arm RH Assembly
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
15#031-9071-00
R-Series Square Drive Arm LH Assembly
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
16#032-0002-00
Drive Arm Bushing
Qty Used: 2Regular price $14.53 USDRegular priceUnit price per
-
17#035-0005-00
2019 Renegade Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
18#039-2160-00
2019 Arm Switch Bracket--Plated
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
19#057-5800-00
Star Knob 3/8- 16 x3"
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
20#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
21#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
22#087-0002-00
Damper (Heim Ends)
Qty Used: 2Regular price $58.37 USDRegular priceUnit price per
-
23#091-1114-00
2018 LH/RH Steering Control Decal Roll
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
24#091-4037-00
2019 Deck Release Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
