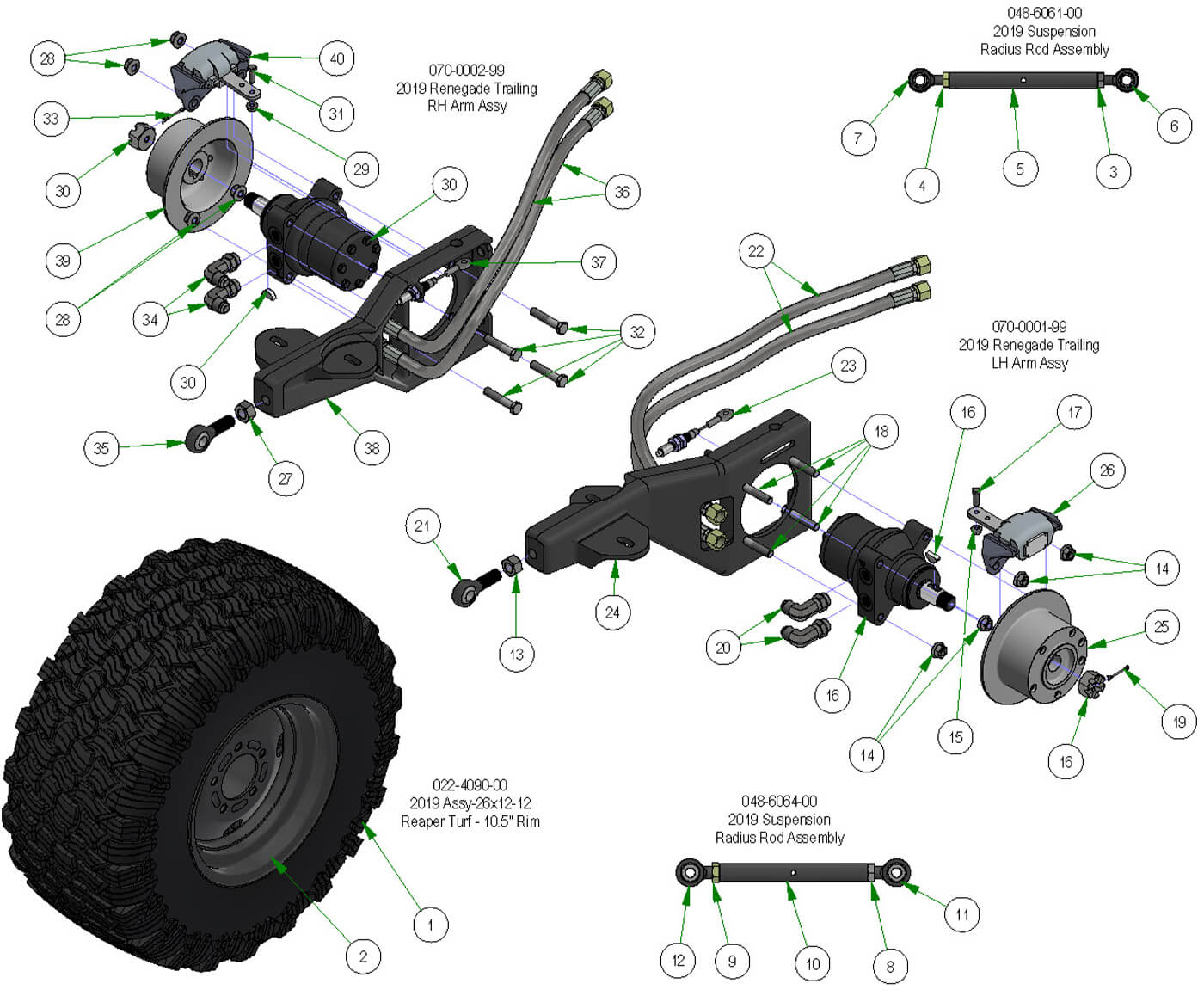

Rear Suspension Subassemblies
Parts Index
- 1 2019 26x12-12 Reaper Turf Tire (Qty 2)
- 2 2019 10.5" Wheel Fits 022-4090-00 (Qty 2)
- 3 Nut, 5/8-18 RH (Qty 2)
- 4 Nut, 5/8-18 LH (Qty 2)
- 5 2019 Suspension Link Body-RH and LH Threads (Qty 2)
- 6 Heim 5/8" RH (Qty 2)
- 7 Heim 5/8" LH (Qty 2)
- 9 3/4 - 16 LH Half Nut (Qty 2)
- 11 Hime RH (3/4 body | 5/8 hole) (Qty 2)
- 12 Heim LH (3/4 Body | 5/8 Hole) (Qty 2)
- 13 3/4"-16 Fine Full Nut (Qty 1)
- 14 1/2-13 Gr 8 Centerlock Flange Nut (Qty 4)
- 15 5/16-18 Nylon Flange Nut (Qty 1)
- 16 18ci Parker Wheel Motor - Left (Qty 1)
- 17 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 18 1/2-13 x 2.75 Gr.8 Hex Head Bolt (Qty 4)
- 19 1/8 X 1 1/2 Cotter Pins Zinc (Qty 1)
- 20 2019 Rogue/Renegade Wheel Motor 90* Fitting (Qty 2)
- 21 Heim 3/4" RH (Qty 1)
- 22 2019 Renegade Hydro Hose (Qty 2)
- 23 2019 Short Brake Cable-Suspension Models (Qty 1)
- 24 2019 Left Trailing Arm (Qty 1)
- 25 Brake Disc (96-37486) (Qty 1)
- 26 Brake Caliper with Bracket LH (Qty 1)
- 27 3/4"-16 Fine Full Nut (Qty 1)
- 28 1/2-13 Gr 8 Centerlock Flange Nut (Qty 4)
- 29 5/16-18 Nylon Flange Nut (Qty 1)
- 30 18ci Parker Wheel Motor-Right (Qty 1)
- 31 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 32 1/2-13 x 2.75 Gr.8 Hex Head Bolt (Qty 4)
- 33 1/8 X 1 1/2 Cotter Pins Zinc (Qty 1)
- 34 2019 Rogue/Renegade Wheel Motor 90* Fitting (Qty 2)
- 35 Heim 3/4" RH (Qty 1)
- 36 2019 Renegade Hydro Hose (Qty 2)
- 37 2019 Long Brake Cable-Renegade, Rogue (Qty 1)
- 38 2019 Right Trailing Arm (Qty 1)
- 39 Brake Disc (96-37486) (Qty 1)
- 40 Brake Caliper with Bracket RH (Qty 1)
-
1#022-4085-00
2019 26x12-12 Reaper Turf Tire
Qty Used: 2Regular price $209.99 USDRegular priceUnit price per
-
2#022-4086-00
2019 10.5" Wheel Fits 022-4090-00
Qty Used: 2Regular price $131.99 USDRegular priceUnit price per
-

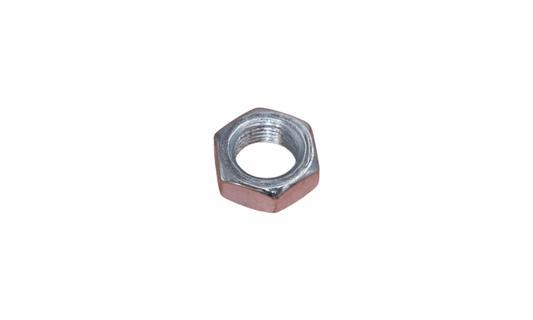

3#013-0019-00
Nut, 5/8-18 RH
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-

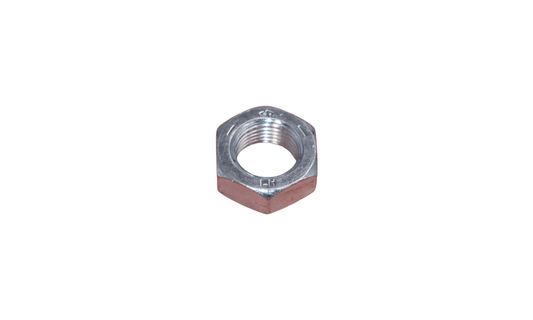

4#013-0020-00
Nut, 5/8-18 LH
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
5#048-0001-00
2019 Suspension Link Body-RH and LH Threads
Qty Used: 2Regular price $26.47 USDRegular priceUnit price per
-

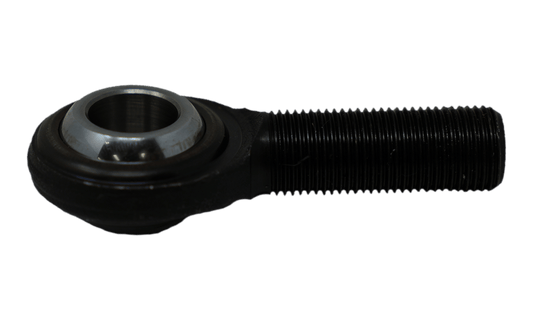

6#048-6062-00
Heim 5/8" RH
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-

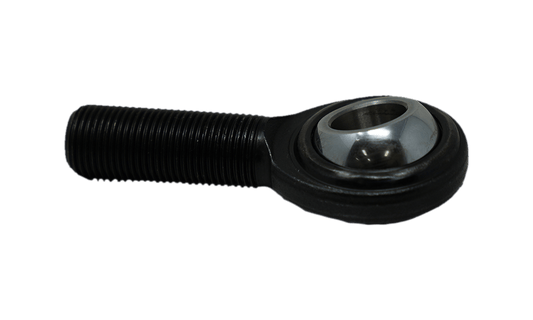

7#048-6063-00
Heim 5/8" LH
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-

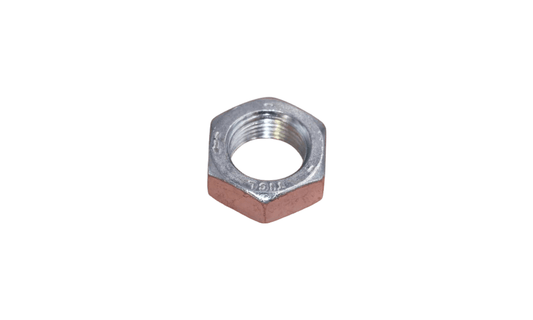

9#013-0028-00
3/4 - 16 LH Half Nut
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-

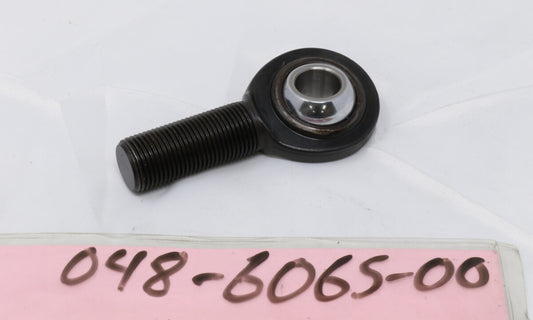

11#048-6065-00
Hime RH (3/4 body | 5/8 hole)
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-

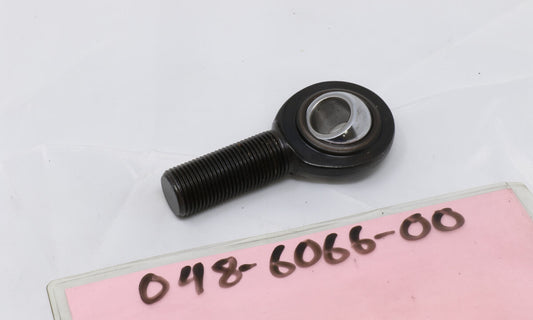

12#048-6066-00
Heim LH (3/4 Body | 5/8 Hole)
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
1327#013-0022-00
3/4"-16 Fine Full Nut
Qty Used: 1Regular price $6.69 USDRegular priceUnit price per
-
1428#013-6040-00
1/2-13 Gr 8 Centerlock Flange Nut
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
1529#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
16#015-4601-00
18ci Parker Wheel Motor - Left
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
1731#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
1832#018-6041-00
1/2-13 x 2.75 Gr.8 Hex Head Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
1933#020-7022-00
1/8 X 1 1/2 Cotter Pins Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
2034#024-2065-00
2019 Rogue/Renegade Wheel Motor 90* Fitting
Qty Used: 2Regular price $17.45 USDRegular priceUnit price per
-
2135#048-7001-00
Heim 3/4" RH
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-

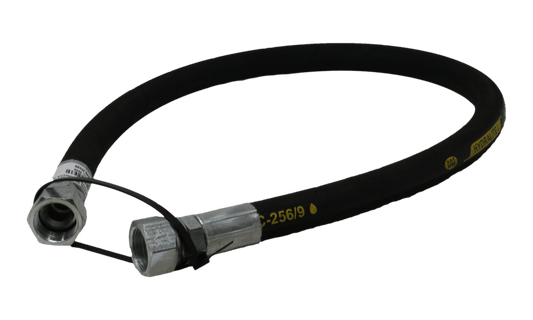

2236#051-6007-00
2019 Renegade Hydro Hose
Qty Used: 2Regular price $51.07 USDRegular priceUnit price per
-
23#064-8054-00
2019 Short Brake Cable-Suspension Models
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
24#070-0001-00
2019 Left Trailing Arm
Qty Used: 1Regular price $291.91 USDRegular priceUnit price per
-
2539#092-5201-00
Brake Disc (96-37486)
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
26#092-7001-00
Brake Caliper with Bracket LH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
30#015-4600-00
18ci Parker Wheel Motor-Right
Qty Used: 1Regular price $599.00 USDRegular priceUnit price per
-
37#064-9002-00
2019 Long Brake Cable-Renegade, Rogue
Qty Used: 1Regular price $48.10 USDRegular priceUnit price per
-
38#070-0002-00
2019 Right Trailing Arm
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
40#092-7000-00
Brake Caliper RH
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
