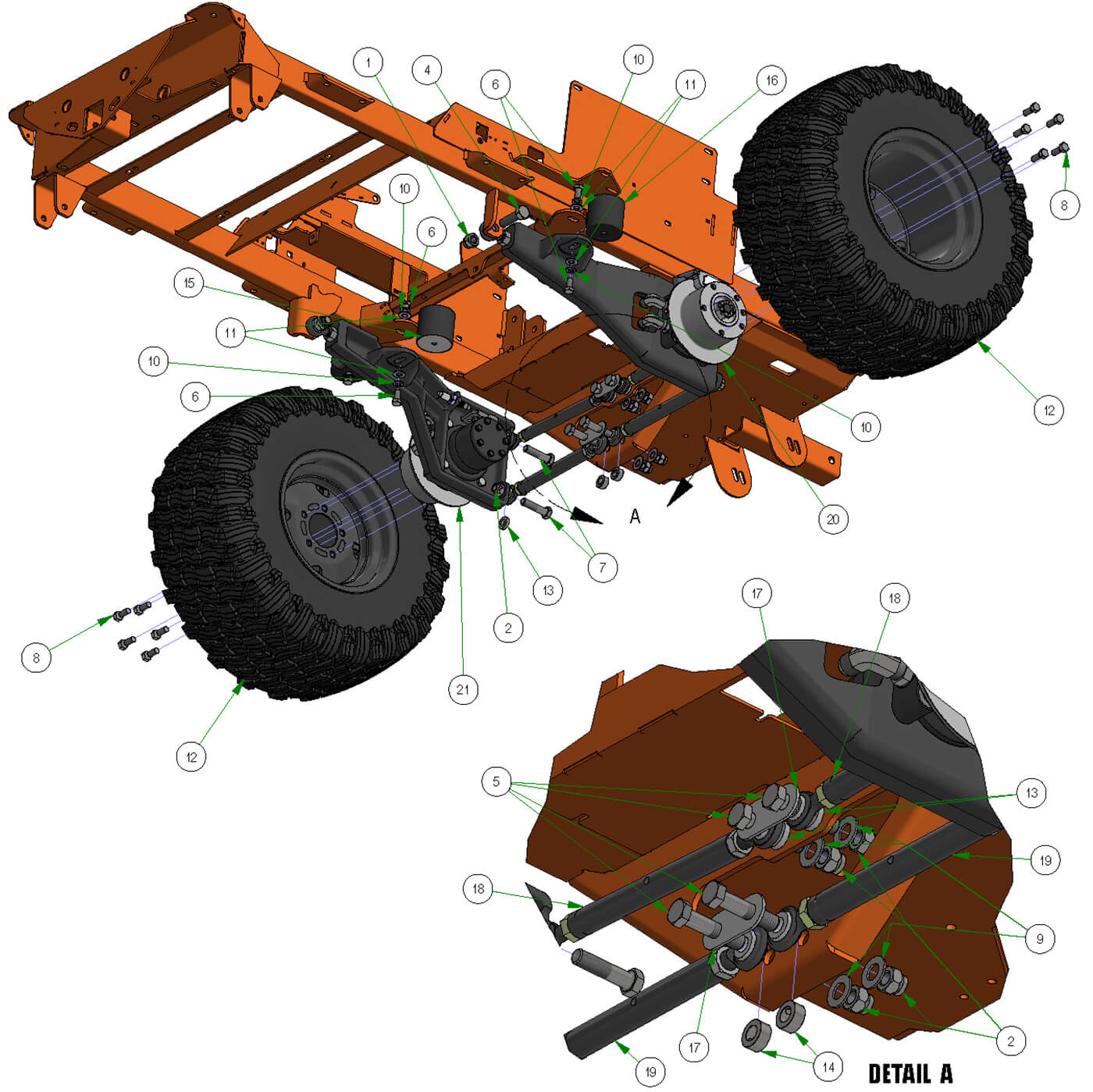

Rear Suspension
Parts Index
- 1 3/4" Course Thread Nylon Lock Nut (Qty 2)
- 2 5/8-11 Nylon Insert Locknut Zi (Qty 8)
- 3 2019 2" x .25 Rubber Grommet (Qty 2)
- 4 3/4 x 2 1/2 Course Thread Bolt (Qty 2)
- 5 5/8-11 x 2 3/4 Hex Head Bolt GR 5 (Qty 4)
- 6 1/2 x 1 Bolt (Qty 8)
- 7 5/8-11 X 2-1/2 GR 5 Hex Bolts (Qty 4)
- 8 1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads (Qty 10)
- 9 5/8" Flat Washer SAE Spec Grade 8 (Qty 4)
- 10 1/2 Lockwasher Zinc (Qty 8)
- 11 1/2 SAE Flat Washer GR 8 (Qty 8)
- 12 2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim (Qty 2)
- 13 Spacer 1.125 OD x .625 ID x .250 Length (Qty 4)
- 14 5/8 Set Collar W/One Set Screw (Qty 2)
- 15 5/8 Set Collar W/One Set Screw (Qty 2)
- 16 Isolator (Green Dot) (Qty 2)
- 17 2019 Suspension Gusset--Plated (Qty 2)
- 18 2019 Rear Radius Rod W/ Greasable Hiem (Qty 2)
- 19 Supension linkage (3/4 body | 5/8 Hole) (Qty 2)
- 22 2019 Horizontal Gas Frame--Orange (Qty 1)
-
1#013-0023-00
3/4" Course Thread Nylon Lock Nut
Qty Used: 2Regular price $6.69 USDRegular priceUnit price per
-
2#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 8Regular price $1.19 USDRegular priceUnit price per
-
3#014-2052-00
2019 2" x .25 Rubber Grommet
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
4#018-0045-00
3/4 x 2 1/2 Course Thread Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
5#018-0049-00
5/8-11 x 2 3/4 Hex Head Bolt GR 5
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
6#018-2030-00
1/2 x 1 Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
7#018-6059-00
5/8-11 X 2-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $2.29 USDRegular priceUnit price per
-
8#018-7033-00
1/2-20 Wheel Bolt -3/4" 60 Degree Seat 1" Threads
Qty Used: 10Regular price $1.99 USDRegular priceUnit price per
-
9#019-0009-00
5/8" Flat Washer SAE Spec Grade 8
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
10#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
11#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 8Regular price $0.75 USDRegular priceUnit price per
-
12#022-4090-00
2019 Assy-26x12-12 Reaper Turf 2019-10.5" Rim
Qty Used: 2Regular price $209.99 USDRegular priceUnit price per
-
13#025-0071-00
Spacer 1.125 OD x .625 ID x .250 Length
Qty Used: 4Regular price $13.26 USDRegular priceUnit price per
-
1415#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
16#032-9000-00
Isolator (Green Dot)
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
17#039-2145-00
2019 Suspension Gusset--Plated
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
18#048-6061-00
2019 Rear Radius Rod W/ Greasable Hiem
Qty Used: 2Regular price $53.06 USDRegular priceUnit price per
-
19#048-6064-00
Supension linkage (3/4 body | 5/8 Hole)
Qty Used: 2Regular price $72.97 USDRegular priceUnit price per
-
22#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
