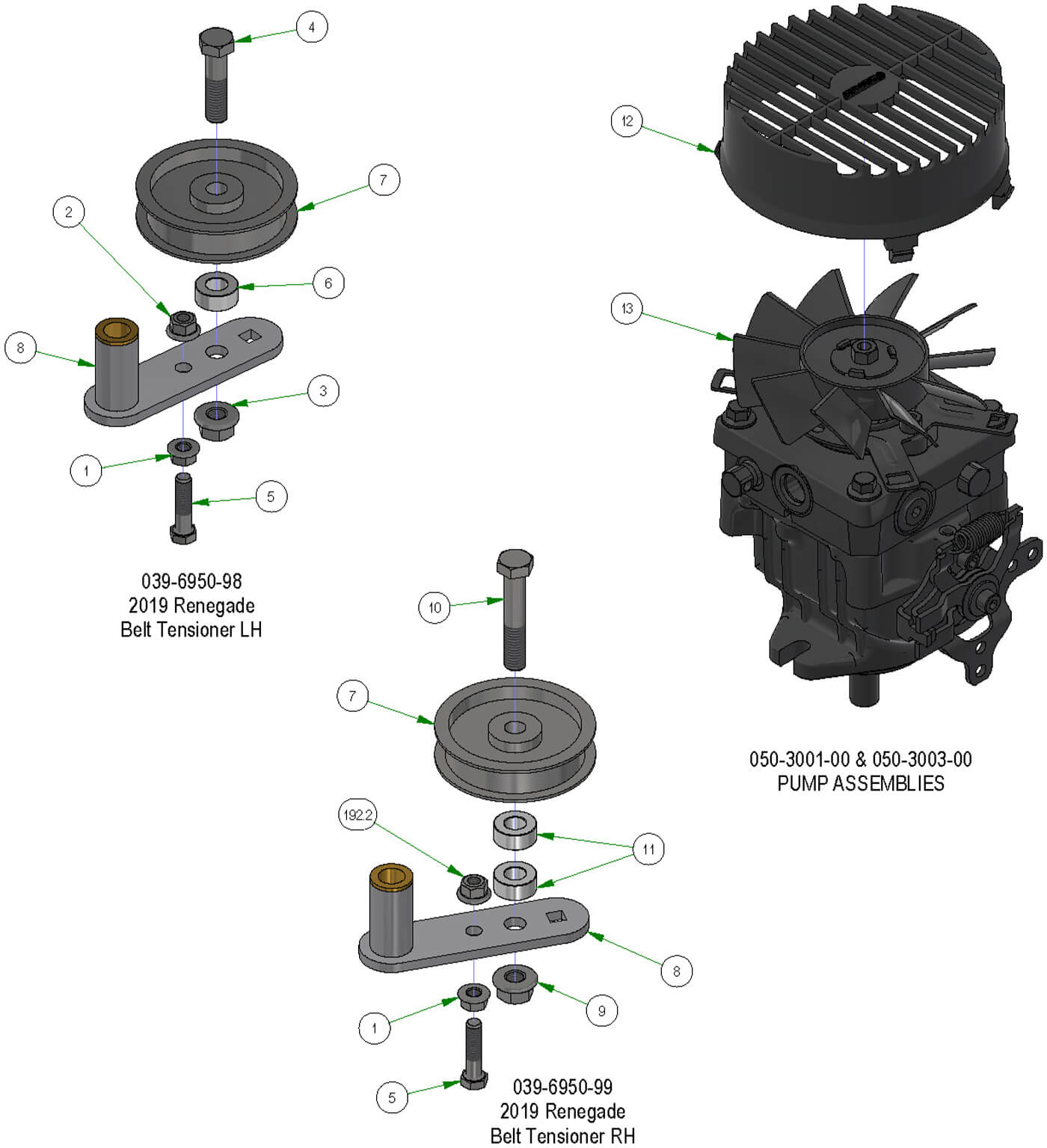

Pump & Idler Subassemblies
Parts Index
- 1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 2 3/8 Nylock Flange Nut (Qty 1)
- 3 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 4 1/2-13 x 2 Grade 8 Hex Bolt (Qty 1)
- 5 3/8 x 1 1/2 Bolt (Qty 1)
- 6 1/2 Set Collar w/set collar (Qty 1)
- 7 2019 Renegade Horizontal Pump Pulley (Qty 1)
- 8 Horizontal Idler Arm With Bushings--Plated (Qty 1)
- 9 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 10 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 11 1/2 Set Collar w/set collar (Qty 2)
- 12 Fan Guard 6" - Fits Wheel (Qty 1)
- 13 Hydro Fan - Light/Pup/Outlaw XP (Qty 1)
-
1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
39#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
4#018-0022-00
1/2-13 x 2 Grade 8 Hex Bolt
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
5#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
611#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 2Regular price $4.18 USDRegular priceUnit price per
-
7#033-1876-00
2019 Renegade Horizontal Pump Pulley
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
8#039-6950-01
Horizontal Idler Arm With Bushings--Plated
Qty Used: 1Regular price $27.85 USDRegular priceUnit price per
-
10#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
12#014-5600-00
Fan Guard 6" - Fits Wheel
Qty Used: 1Regular price $37.21 USDRegular priceUnit price per
-
13#015-9999-00
Hydro Fan - Light/Pup/Outlaw XP
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
