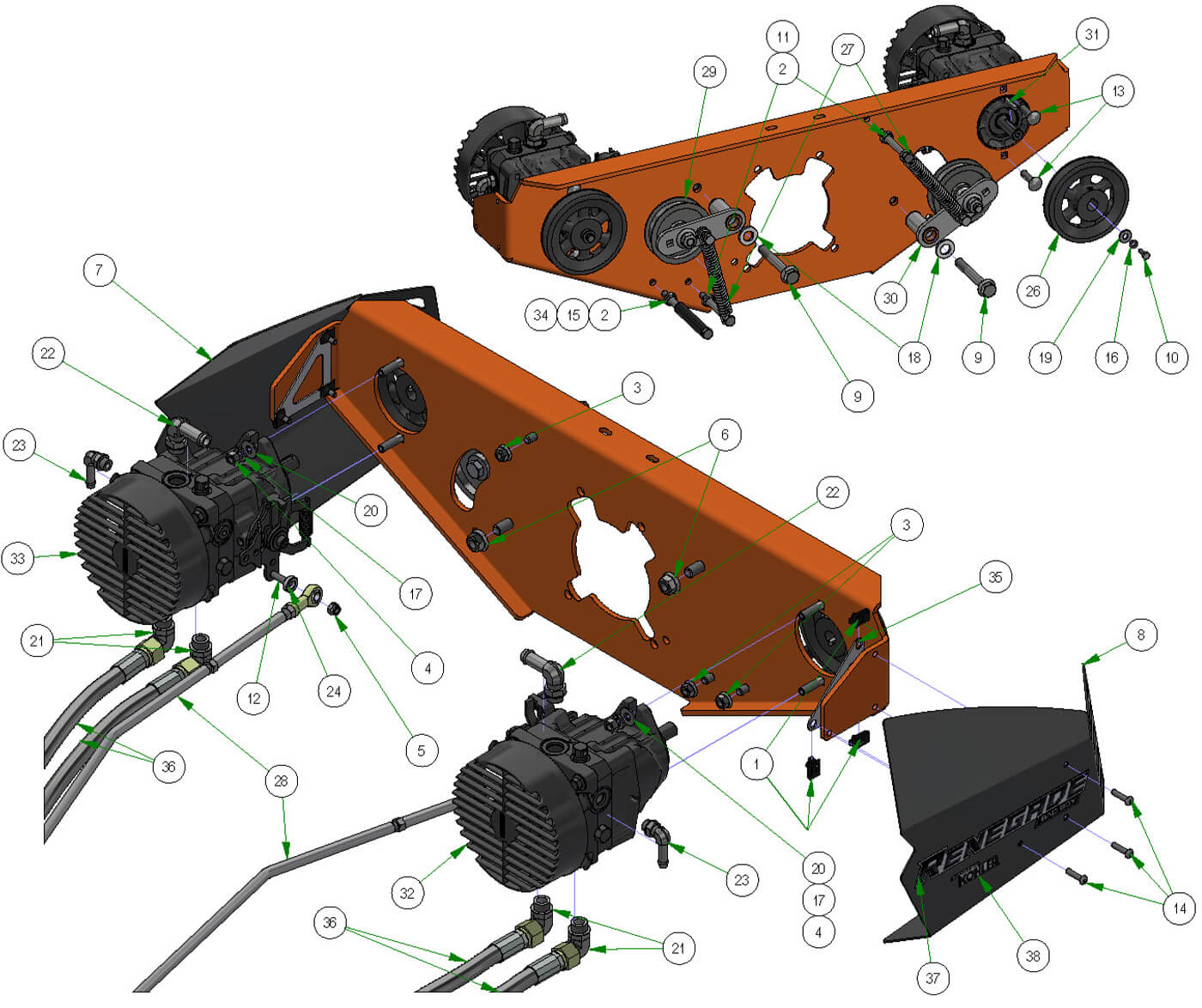

Pump & Idler Assembly
Parts Index
- 1 1/4-20 Cage Nut (Qty 6)
- 2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 3)
- 3 3/8 Nylock Flange Nut (Qty 3)
- 4 3/8-16 Hex Nuts Zinc (Qty 4)
- 5 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 6 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 7 Pump Cover--RH-Black (Qty 1)
- 8 Pump Cover--LH-Black (Qty 1)
- 9 Deck Wheel Bolt (Qty 2)
- 10 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 11 3/8-16x3-1/2 Grade 5 Hex Bolt (Qty 2)
- 12 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 13 3/8 x 1 1/2 Carriage Bolt (Qty 4)
- 14 1/4-20 x 1" BS C/S 18-8 SS (Qty 6)
- 15 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 1)
- 16 1/4 Lockwasher Zinc (Qty 2)
- 17 3/8 Lockwasher Zinc (Qty 4)
- 18 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 19 1/4 USS Flat Washer Zinc (Qty 2)
- 20 5/16 USS Flat Washer Zinc (Qty 4)
- 21 Renegade Pump Fitting 90 Degree (Qty 4)
- 22 90 Degree Fitting, 1/2 x 3/4, (Qty 2)
- 23 90 Degree Fitting, 3/8 x 9/16, (Qty 2)
- 24 ACS Spacer 3/4x3/8x1/4 (Qty 2)
- 25 Pump Plate--Orange (Qty 1)
- 26 Cast Pump Pulley - 17mm Assembly (Qty 2)
- 27 ZT and ACS Handle Spring (Qty 2)
- 28 2019 Renegade Push Rod Assembly (Qty 2)
- 29 2019 Renegade Belt Tensioner LH (Qty 1)
- 30 2019 Renegade Pump Belt Tensioner RH (Qty 1)
- 31 M5 X 36MM SQUARE MACHINERY KEY C1018 ROUNDED ENDS (Qty 2)
- 32 2019 Rogue/Renegade Left Pump 16cc (Qty 1)
- 33 Renegade Right Pump 16cc (Qty 1)
- 34 3/8 Fuel Line-Priced per Foot (Qty 1)
- 35 Pump Plate Clip Nut Holder--Plated (Qty 2)
- 36 2019 Renegade Hydro Hose (Qty 4)
- 38 2022 Powered By Kohler Decal (Qty 2)
-
1#013-0054-00
1/4-20 Cage Nut
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
2#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
3#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
4#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
5#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
6#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
7#014-5060-22
Pump Cover--RH-Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
8#014-5061-22
Pump Cover--LH-Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
9#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 2Regular price $5.89 USDRegular priceUnit price per
-
10#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
11#018-1010-00
3/8-16x3-1/2 Grade 5 Hex Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
12#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
13#018-4706-00
3/8 x 1 1/2 Carriage Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
14#018-6014-00
1/4-20 x 1" BS C/S 18-8 SS
Qty Used: 6Regular price $5.29 USDRegular priceUnit price per
-
15#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
16#019-4008-00
1/4 Lockwasher Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
17#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
18#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
19#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
20#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
21#024-2052-00
2019 Outlaw Renegade Pump Fitting 90 Degree
Qty Used: 4Regular price $11.66 USDRegular priceUnit price per
-
22#024-5002-00
90 Degree Fitting, 1/2 x 3/4,
Qty Used: 2Regular price $16.48 USDRegular priceUnit price per
-
23#024-5206-00
90 Degree Fitting, 3/8 x 9/16,
Qty Used: 2Regular price $11.61 USDRegular priceUnit price per
-
24#025-2001-00
ACS Spacer 3/4x3/8x1/4
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
25#026-8010-00
Pump Plate--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
26#033-5011-00
Cast Pump Pulley - 17mm Assembly
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
27#034-9000-00
ZT and ACS Handle Spring
Qty Used: 2Regular price $14.53 USDRegular priceUnit price per
-
28#035-0005-00
2019 Renegade Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
29#039-6950-98
2019 Renegade Belt Tensioner LH
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
30#039-6950-99
2019 Renegade Pump Belt Tensioner RH
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
31#042-5013-00
M5 X 36MM SQUARE MACHINERY KEY C1018 ROUNDED ENDS
Qty Used: 2Regular price $2.92 USDRegular priceUnit price per
-
32#050-3001-00
2019 Rogue/Renegade Left Pump 16cc
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
33#050-3003-00
2019 Outlaw Renegade Right Pump 16cc
Qty Used: 1Regular price $729.79 USDRegular priceUnit price per
-
34#051-8076-00
3/8 Fuel Line-Priced per Foot
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
35#057-5915-00
Pump Plate Clip Nut Holder--Plated
Qty Used: 2Regular price $15.99 USDRegular priceUnit price per
-
36#051-6007-00
2019 Renegade Hydro Hose
Qty Used: 4Regular price $51.07 USDRegular priceUnit price per
-
38#091-4004-22
2022 Powered By Kohler Decal
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
