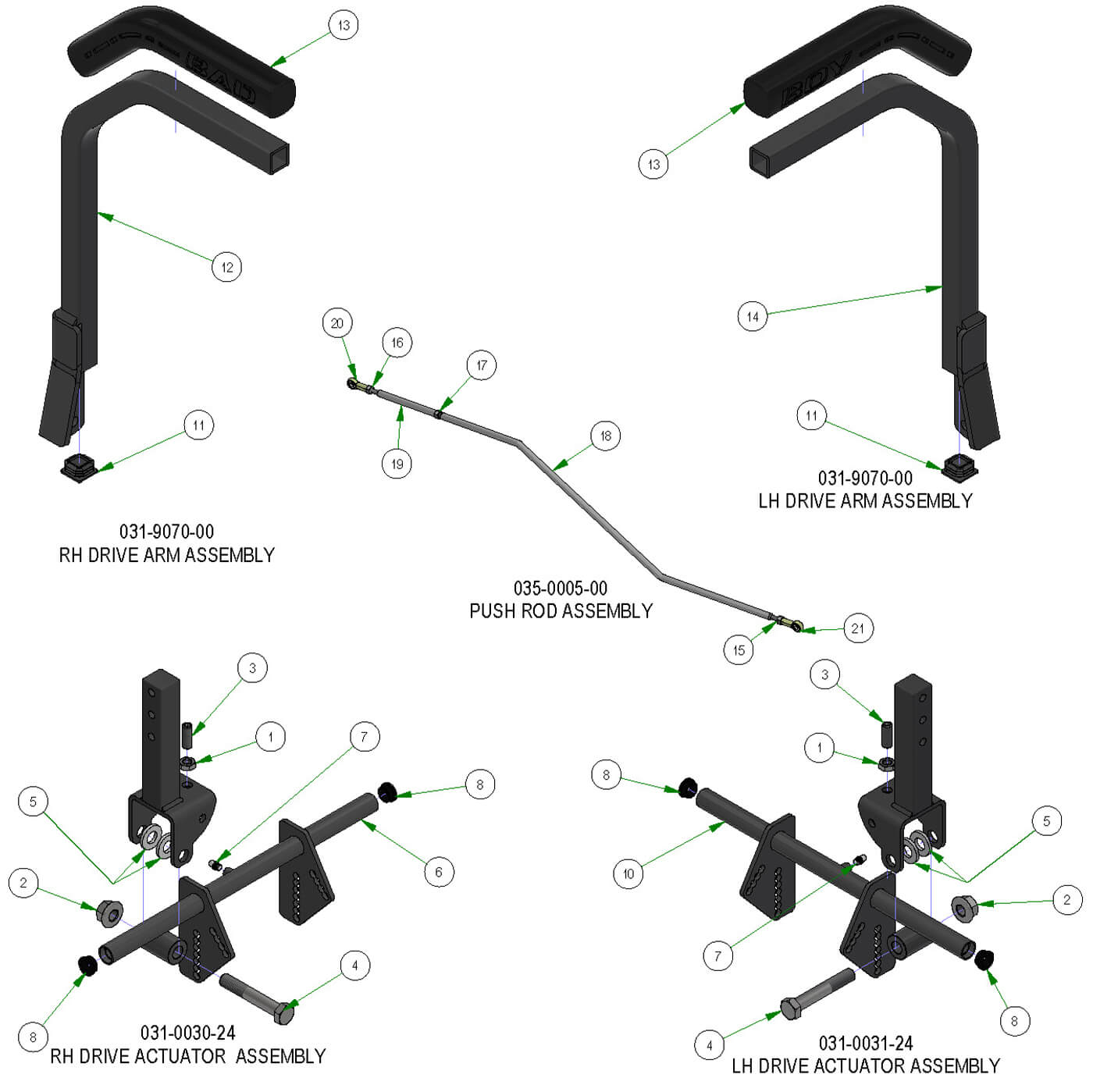

Drive Arm Sub Assemblies
Parts Index
- 1 3/8-16 Half Jam Nut (Qty 1)
- 2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 3 3/8-16 X 1 SOCKET SET SCREW CUP POINT (Qty 1)
- 4 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 1)
- 5 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 7 1/4 Drive-in Grease Fitting (Qty 1)
- 8 Drive Arm Actuator Bushing (Qty 2)
- 9 R-Series Square Drive Arm Pivot (Qty 1)
- 13 R-Series Square Drive Grip (Qty 1)
- 15 5/16 RH Nut (Qty 2)
- 16 5/16 LH Nut (Qty 2)
- 17 3/8-24 Hex Nut Zinc (Qty 2)
- 18 2019 Outlaw Gen2 Horizontal Push Rod (Qty 2)
- 19 2019 Outlaw Gen2 Horizontal Push Rod Adjuster (Qty 2)
- 20 Spherical Rod End - LH Thead - Rebel,Rogue,Renegad (Qty 2)
- 21 Spherical Rod End - RH Thread - Rogue and Renegade (Qty 2)
-
1#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
3#018-0063-00
3/8-16 X 1 SOCKET SET SCREW CUP POINT
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
4#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
5#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
7#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-
8#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
9#031-0070-00
R-Series Square Drive Arm Pivot
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
13#069-4014-00
R-Series Square Drive Grip
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
15#013-6049-00
5/16 RH Nut
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
16#013-6050-00
5/16 LH Nut
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
17#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
18#035-0005-01
2019 Outlaw Gen2 Horizontal Push Rod
Qty Used: 2Regular price $32.99 USDRegular priceUnit price per
-
19#035-0006-00
2019 Outlaw Gen2 Horizontal Push Rod Adjuster
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
20#048-3002-00
Spherical Rod End - LH Thead - Rebel,Rogue,Renegad
Qty Used: 2Regular price $29.99 USDRegular priceUnit price per
-
21#048-3003-00
Spherical Rod End - RH Thread - Rogue and Renegade
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
