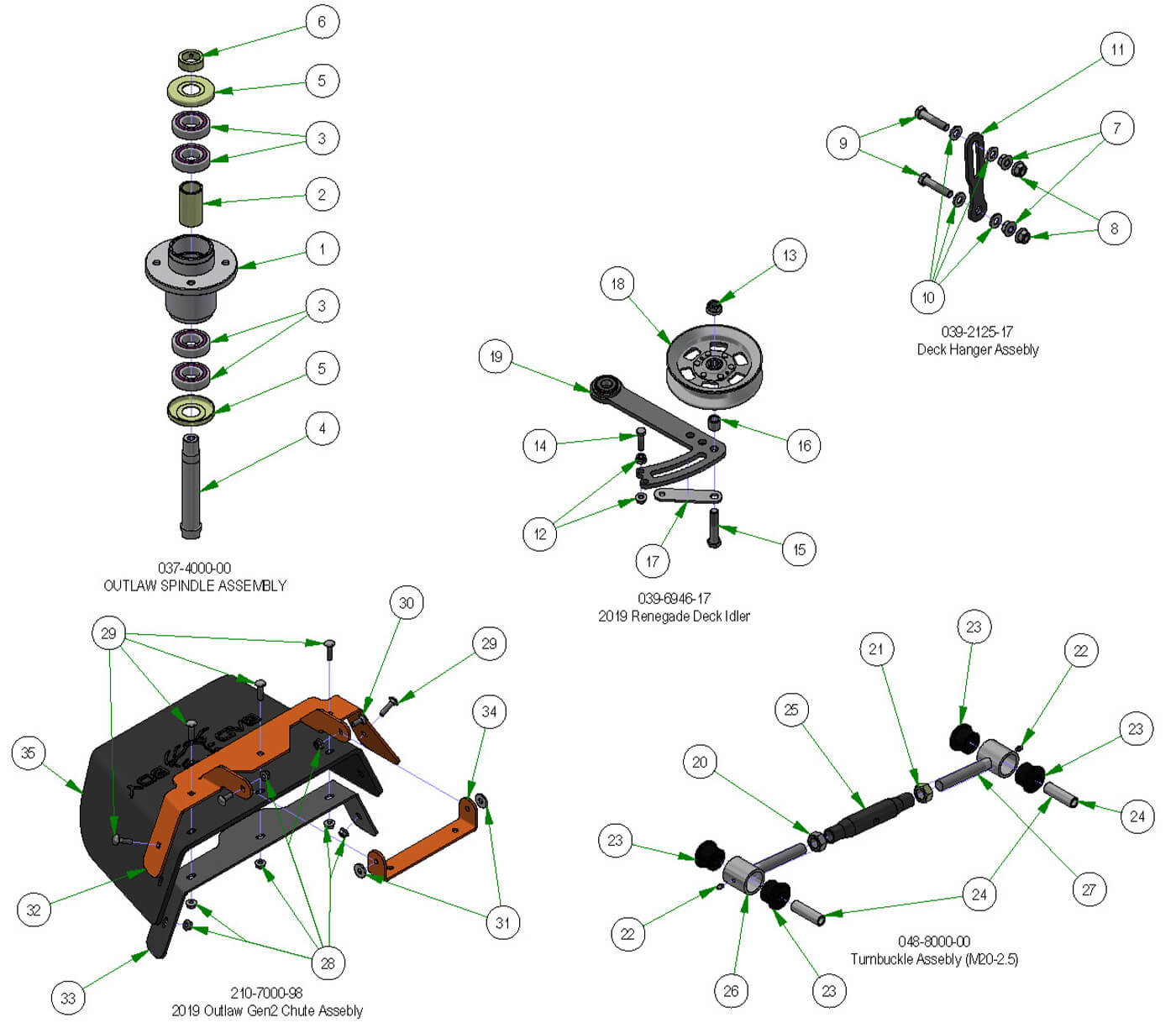

Deck Subassemblies
Parts Index
- 1 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing (Qty 6)
- 2 2015 Spindle Spacer (Qty 6)
- 3 OBSOLETE USE 037-6029-00 (Qty 24)
- 4 Short Spindle Shaft for Locking Collar- No Grooved (Qty 6)
- 5 Dust Cover for 037-8000-00 - (Qty 12)
- 6 Collar Spacer - Top of Spindle (Qty 6)
- 7 1/2-13 Hex Fange Nuts Zinc w/ (Qty 8)
- 8 1/2-13 Nylon Insert Flange Nut (Qty 8)
- 9 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 8)
- 10 .505 ID X 1 OD X .128 THK Washer (Qty 16)
- 11 OBSOLETE USE 039-2125-17 (Qty 4)
- 12 3/8-16 Hex Flange Nuts Zinc w/ (Qty 4)
- 13 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 14 3/8 x 1 1/2 Bolt (Qty 2)
- 15 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 2)
- 16 Spacer 3/4ODx1/2IDx0.75 (Qty 2)
- 17 Belt Tensioner Retainer Plate--Plated (Qty 2)
- 18 2017 5" Split Idler Pulley-Tensioner Only (Qty 2)
- 19 Idler Bracket--Plated (Qty 2)
- 22 1/4-28 Threaded Grease Fitting (Qty 4)
- 23 Bushing-2015 Outlaw Toplink (Qty 8)
- 24 Sleeve-2015 Outlaw Toplink (Qty 4)
- 26 Turnbuckle End Right-Handed Thread (Qty 2)
- 27 Turnbuckle End Left-Handed Thread (Qty 2)
- 28 5/16-18 Nylon Flange Nut (Qty 14)
- 29 5/16-18 X 1-1/4 Carriage Bolt (Qty 10)
- 30 5/16 x 7/8 Carriage Bolt (Qty 4)
- 31 .360 ID Plastic Washer (Qty 4)
- 32 Chute Bracket (upper) (Qty 2)
- 33 Chute Bracket (lower) (Qty 2)
- 34 Chute Hanger (Qty 2)
- 35 Discharge Chute (Rubber Component) (Qty 2)
-
1#037-4000-01
2017 Outlaw/XP/Diesel Cast Iron Spindle Housing
Qty Used: 6Regular price $119.36 USDRegular priceUnit price per
-
2#037-4002-00
2015 Spindle Spacer
Qty Used: 6Regular price $6.62 USDRegular priceUnit price per
-
3#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 24Regular price $39.79 USDRegular priceUnit price per
-
4#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 6Regular price $78.29 USDRegular priceUnit price per
-
5#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 12Regular price $10.99 USDRegular priceUnit price per
-
6#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 6Regular price $6.62 USDRegular priceUnit price per
-
7#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
813#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
9#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 8Regular price $1.39 USDRegular priceUnit price per
-
10#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 16Regular price $0.69 USDRegular priceUnit price per
-
11#039-2125-00
OBSOLETE USE 039-2125-17
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
12#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
14#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
15#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
16#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
17#026-0167-00
Belt Tensioner Retainer Plate--Plated
Qty Used: 2Regular price $24.99 USDRegular priceUnit price per
-
18#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
19#039-6946-00
Idler Bracket--Plated
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
22#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 4Regular price $0.50 USDRegular priceUnit price per
-
23#032-2000-00
Bushing-2015 Outlaw Toplink
Qty Used: 8Regular price $3.97 USDRegular priceUnit price per
-
24#032-2001-00
Sleeve-2015 Outlaw Toplink
Qty Used: 4Regular price $3.97 USDRegular priceUnit price per
-
26#048-8021-00
Turnbuckle End Right-Handed Thread
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
27#048-8022-00
Turnbuckle End Left-Handed Thread
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
28#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 14Regular price $0.79 USDRegular priceUnit price per
-
29#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 10Regular price $0.69 USDRegular priceUnit price per
-
30#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
31#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
32#039-4893-00
Chute Bracket (upper)
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
33#039-4894-00
Chute Bracket (lower)
Qty Used: 2Regular price $40.86 USDRegular priceUnit price per
-
34#206-6018-00
Chute Hanger
Qty Used: 2Regular price $8.79 USDRegular priceUnit price per
-
35#210-6025-00
Discharge Chute (Rubber Component)
Qty Used: 2Regular price $58.32 USDRegular priceUnit price per
