Actuator Bars

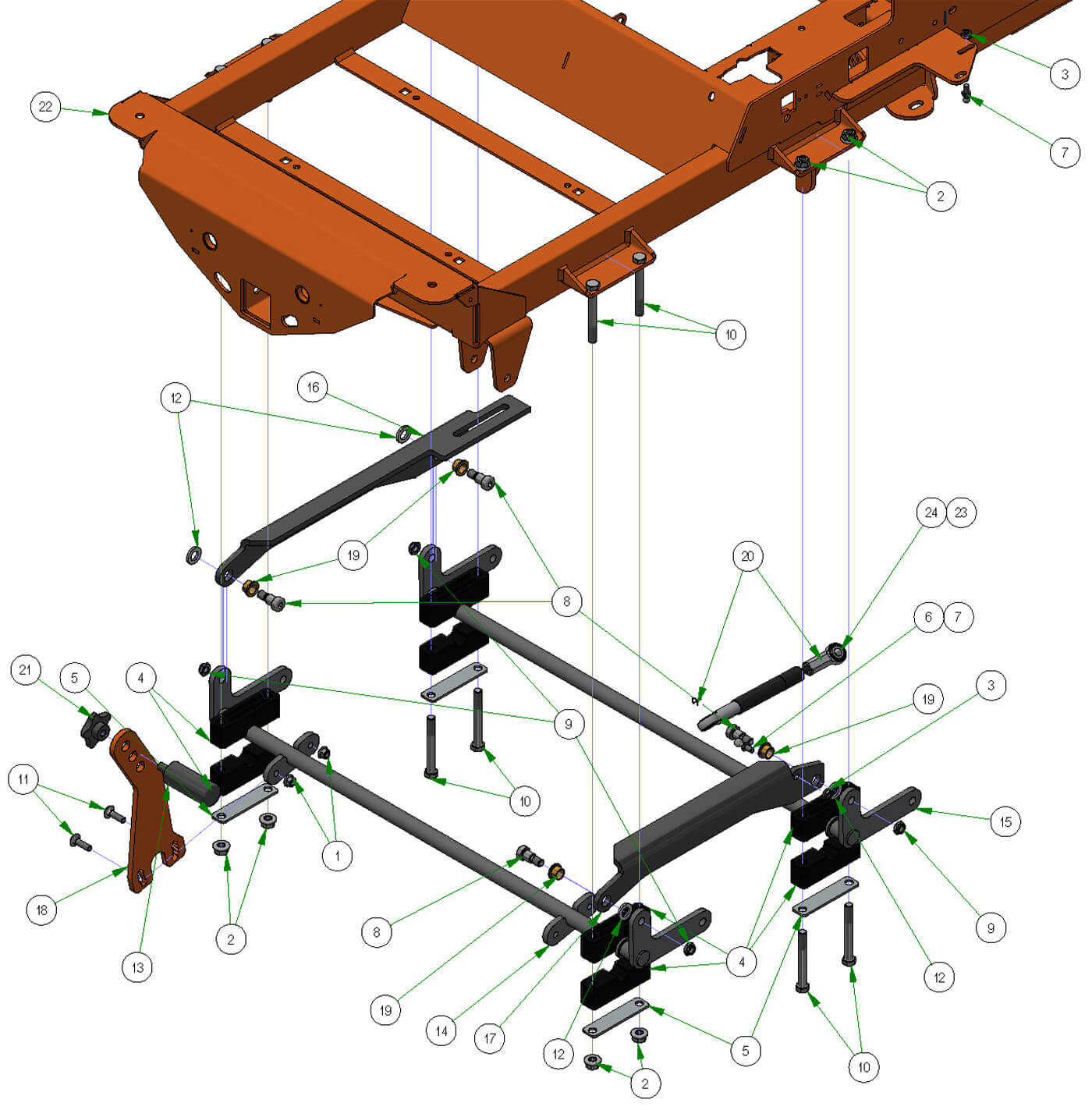

Parts Index
- 1 3/8 Nylock Flange Nut (Qty 2)
- 2 1/2-13 Nylon Insert Flange Nut (Qty 9)
- 3 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 4 Two Piece Pillow Block-Male (Qty 2)
- 5 Two Piece Pillow Block-Plate (Qty 1)
- 6 13mm Ball Stud (Qty 2)
- 7 10mm Ball Stud (Long Thread) (Qty 2)
- 8 5/8 x 5/8 Shoulder Bolt (Qty 4)
- 9 1/2-13 Nylon Insert Jam Locknut (Qty 4)
- 10 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 8)
- 11 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 12 .630 ID X 1.122 OD X .142 THK (Qty 5)
- 13 Knurled Foot Pedal (Qty 1)
- 14 Actuator Bar (Front) (Qty 1)
- 15 Actuator Bar (Rear) (Qty 1)
- 16 2019 Actuator Linkage-Right-Black (Qty 1)
- 18 Foot Lift Upright Lever--Orange (Qty 1)
- 19 Bronze Bushing - SF-2024-8 (Qty 4)
- 20 Security Ring - PC744 For 72" Deck Dampener (Qty 2)
- 21 Star Knob 1/2-13 (Qty 1)
- 22 2019 Horizontal Gas Frame--Orange (Qty 1)
- 23 Dampener (250lbs) (Qty 1)
- 24 Dampener (300lbs) (Qty 1)
-
1#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 9Regular price $1.39 USDRegular priceUnit price per
-
3#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
4#017-9000-00
Two Piece Pillow Block-Male
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
5#017-9025-00
Two Piece Pillow Block-Plate
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
6#018-2049-00
13mm Ball Stud
Qty Used: 2Regular price $4.39 USDRegular priceUnit price per
-
7#018-2055-00
10mm Ball Stud (Long Thread)
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
8#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 4Regular price $14.59 USDRegular priceUnit price per
-
9#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 4Regular price $1.59 USDRegular priceUnit price per
-
10#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
11#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
12#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
13#026-0026-00
Knurled Foot Pedal
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
14#028-0026-00
Actuator Bar (Front)
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
15#028-0027-00
Actuator Bar (Rear)
Qty Used: 1Regular price $76.99 USDRegular priceUnit price per
-
16#028-6075-22
2019 Actuator Linkage-Right-Black
Qty Used: 1Regular price $40.99 USDRegular priceUnit price per
-
18#031-0003-00
Foot Lift Upright Lever--Orange
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
19#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
20#044-6050-00
Security Ring - PC744
Qty Used: 2Regular price $2.64 USDRegular priceUnit price per
-
21#045-6044-00
Star Knob 1/2-13
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
22#070-5373-19
2019 Horizontal Gas Frame--Orange
Qty Used: 1Regular price $1,061.53 USDRegular priceUnit price per
-
23#087-6100-00
Dampener (250lbs)
Qty Used: 1Regular price $72.91 USDRegular priceUnit price per
-

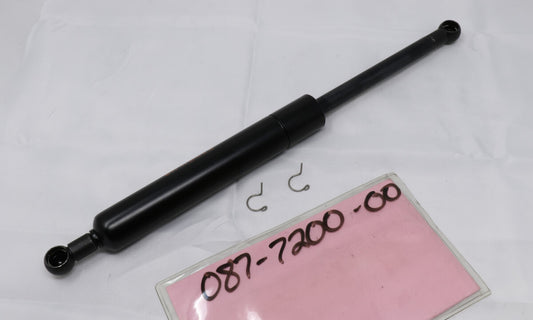

24#087-7200-00
Damper (300lbs)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
