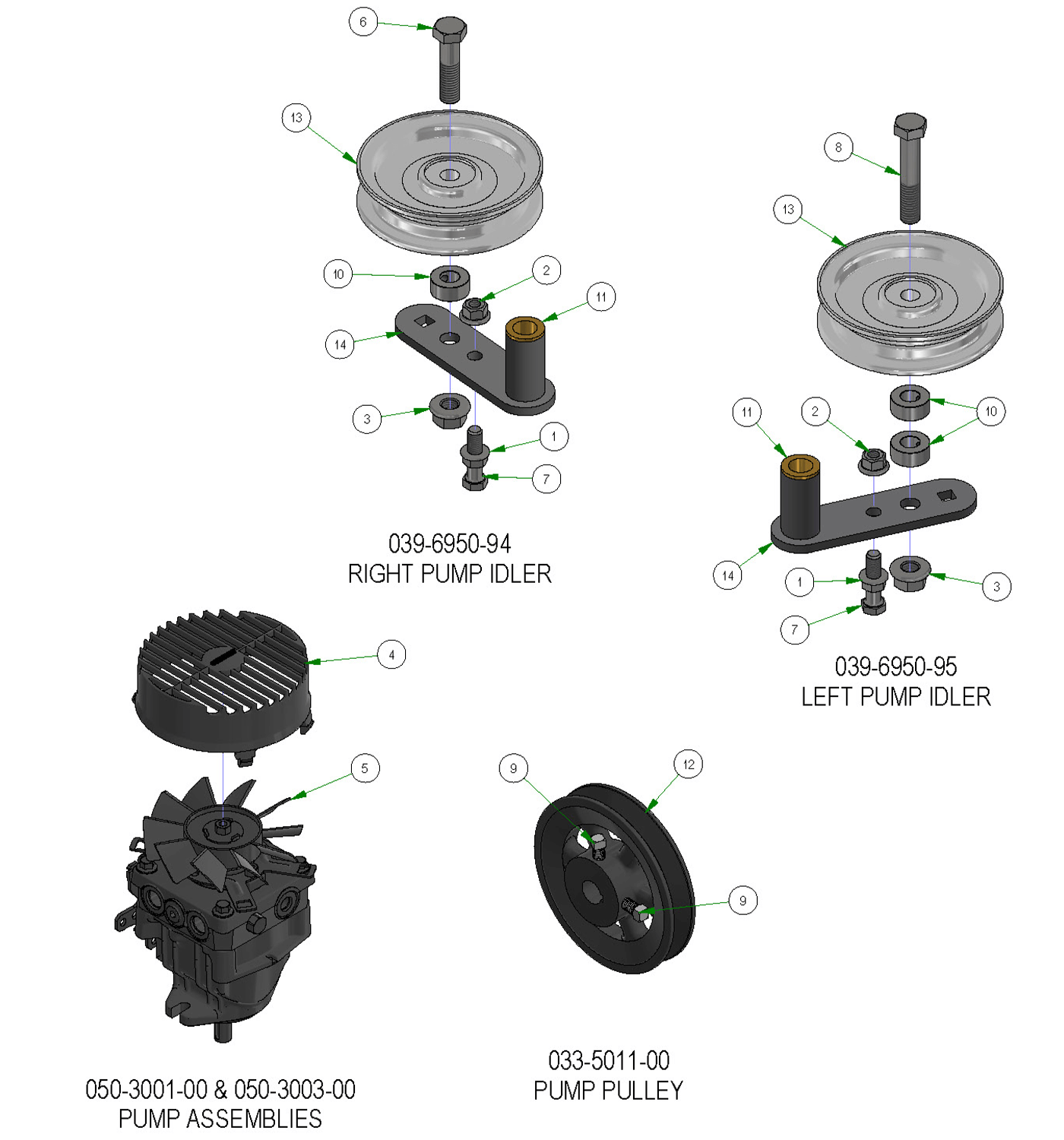

Pump Plate Subs
Parts Index
- 1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 2 3/8 Nylock Flange Nut (Qty 2)
- 3 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 4 Fan Guard 6" - Fits Wheel (Qty 1)
- 5 Hydro Fan - Light/Pup/Outlaw XP (Qty 1)
- 6 1/2-13 x 2 Grade 8 Hex Bolt (Qty 1)
- 7 3/8 x 1 1/2 Bolt (Qty 2)
- 8 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 9 5/16-18 X 1 Steel Square-Head Cup-Point Set Screw (Qty 2)
- 10 1/2 Set Collar w/set collar (Qty 3)
- 11 Bronze Bushing - SF-2024-8 (Qty 4)
- 12 Cast Pump Pulley - 17mm Assembly (Qty 1)
- 13 4 3/4 Idler Pulley - ABFI-76 (Qty 2)
- 14 OBSOLETE USE 039-6950-01 (Qty 2)
-
1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
3#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
4#014-5600-00
Fan Guard 6" - Fits Wheel
Qty Used: 1Regular price $37.21 USDRegular priceUnit price per
-
5#015-9999-00
Hydro Fan - Light/Pup/Outlaw XP
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
6#018-0022-00

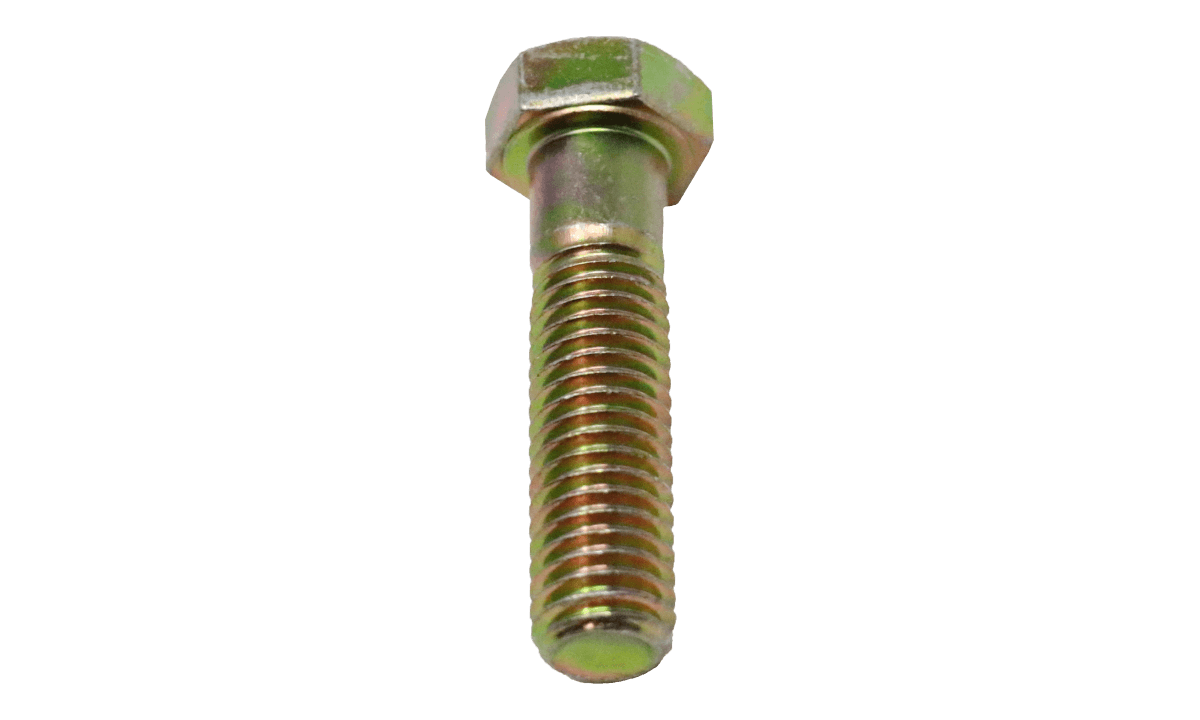

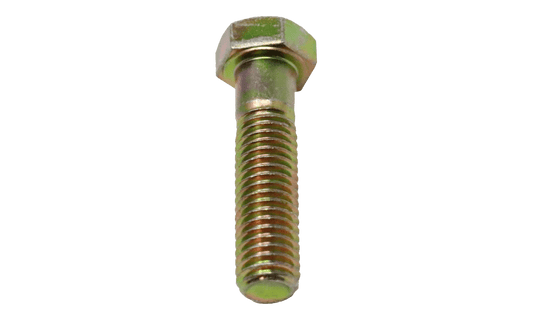

1/2-13 x 2 Grade 8 Hex Bolt
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
7#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
8#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
9#018-8072-00
5/16-18 X 1 Steel Square-Head Cup-Point Set Screw
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
10#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 3Regular price $4.18 USDRegular priceUnit price per
-
11#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
12#033-5011-00
Cast Pump Pulley - 17mm Assembly
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
13#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
14#039-6950-00
OBSOLETE USE 039-6950-01
Qty Used: 2Regular price $27.85 USDRegular priceUnit price per
