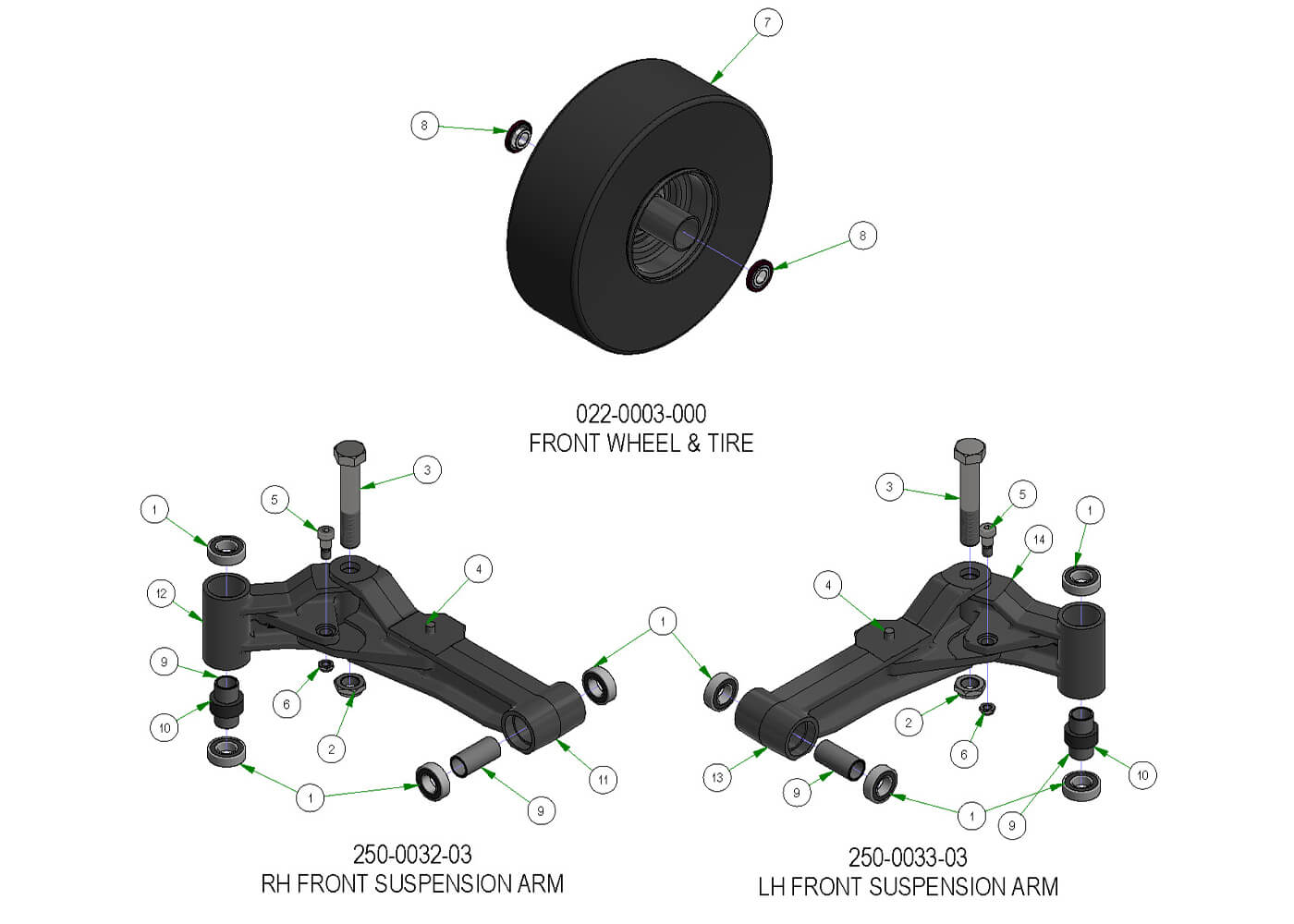

Front End Subassemblies
Parts Index
- 1 Caster Bearing (Qty 8)
- 2 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 3 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 2)
- 4 1/2-13 x 1" Stud (Qty 2)
- 5 5/8 x 5/8 Shoulder Bolt (Qty 2)
- 6 1/2-13 Nylon Insert Jam Locknut (Qty 2)
- 7 15x6-6 Tire Only (Qty 1)
- 8 1 3/4" Bearing-Large Bore (Qty 2)
- 9 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 4)
- 10 Rubber Stabilizer (Front Fork) (Qty 2)
-
1#010-1050-00
Caster Bearing
Qty Used: 8Regular price $17.19 USDRegular priceUnit price per
-
2#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
3#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
4#018-2009-00
1/2-13 x 1" Stud
Qty Used: 2Regular price $5.29 USDRegular priceUnit price per
-
5#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 2Regular price $14.59 USDRegular priceUnit price per
-
6#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
7#022-0004-00
15x6-6 Tire Only
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-
8#022-7010-00
1 3/4" Bearing-Large Bore
Qty Used: 2Regular price $18.99 USDRegular priceUnit price per
-
9#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 4Regular price $13.12 USDRegular priceUnit price per
-
10#029-7050-00
Rubber Stabilizer (Front Fork)
Qty Used: 2Regular price $7.95 USDRegular priceUnit price per
