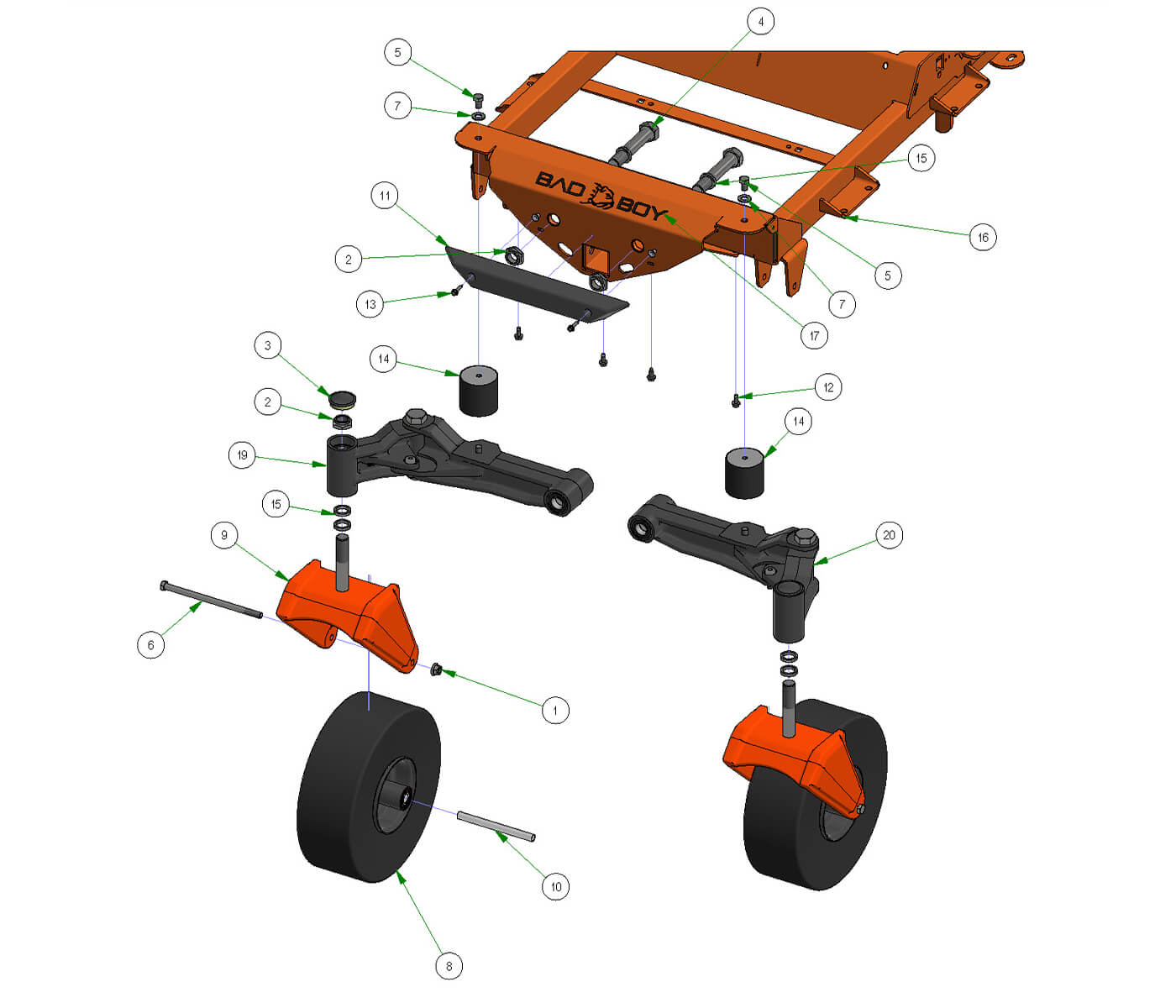

Front End
Parts Index
- 1 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 2 1" Nylock Nut 1/2 Nut - Fine (Qty 4)
- 3 Bearing Retainer Cap (Qty 2)
- 4 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 4)
- 5 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 2)
- 6 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 2)
- 7 1/2 SAE Flat Washer GR 8 (Qty 2)
- 8 2019 15x6.00-6 No Flat Black Front Tire (Qty 2)
- 9 2020 R Series Cast Front Fork (Qty 2)
- 10 Front Wheel Spanner-All Models (Qty 2)
- 11 Bumper (Qty 1)
- 12 5/16 x 3/4 Hex Washer Type F (Qty 4)
- 13 1/4-14 x 1 1/4 HWA Unslot Tek Screw (Qty 2)
- 14 Isolator (Blue Dot) (Qty 2)
- 15 Spacer ( Front Fork and Suspension ) (Qty 6)
- 17 Flying Bulldog Front Bumper Decal (Qty 1)
- 18 Independently Articulating Front Suspension Arms (Qty 1)
- 19 2022 61/72 Rogue/Renegade Front Suspension Asy RH (Qty 1)
- 20 2022 61/72 Rogue/Renegade Front Suspension Asy LH (Qty 1)
-
1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
2#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 4Regular price $3.29 USDRegular priceUnit price per
-
3#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
4#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 4Regular price $12.99 USDRegular priceUnit price per
-
5#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
6#018-7010-00
1/2-13 X 9 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $5.29 USDRegular priceUnit price per
-
7#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
8#022-0003-00
2019 15x6.00-6 No Flat Black Front Tire
Qty Used: 2Regular price $159.99 USDRegular priceUnit price per
-
9#023-0004-20
2020 R Series Cast Front Fork
Qty Used: 2Regular price $169.99 USDRegular priceUnit price per
-
10#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 2Regular price $9.49 USDRegular priceUnit price per
-
-
12#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
13#030-7047-00
1/4-14 x 1 1/4 HWA Unslot Tek Screw
Qty Used: 2Regular price $0.05 USDRegular priceUnit price per
-
14#032-8999-00
Isolator (Blue Dot)
Qty Used: 2Regular price $60.02 USDRegular priceUnit price per
-
15#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 6Regular price $5.83 USDRegular priceUnit price per
-
17#091-4063-00
Flying Bulldog Front Bumper Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
18#091-8002-00
Independently Articulating Front Suspension Arms
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
19#250-0032-03
2022 61/ 72 Rogue/Renagade Front Suspension Asy RH
Qty Used: 1Regular price $249.99 USDRegular priceUnit price per
-
20#250-0033-03
2022 61/72 Rogue/Renegade Front Suspension Asy LH
Qty Used: 1Regular price $249.99 USDRegular priceUnit price per
