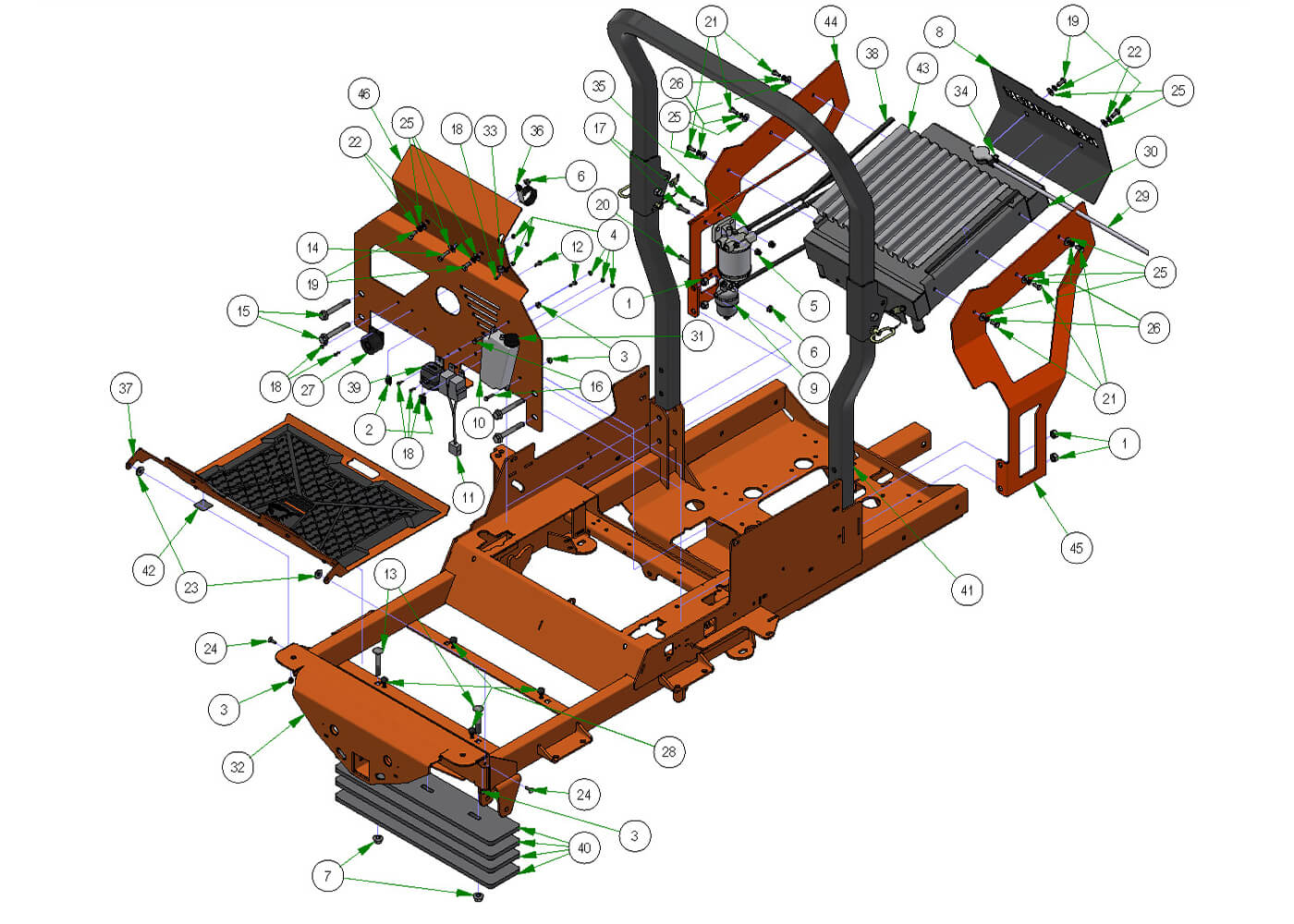

Floorboard, Rops, & Radiator
Parts Index
- 1 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 2 1/4-20 Cage Nut (Qty 2)
- 3 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 4 10-24 Nylon Insert Locknut Zin (Qty 6)
- 5 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 6 5/16-18 Nylon Flange Nut (Qty 2)
- 7 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 10 Overflow Reservoir-27 Kaw (Qty 1)
- 11 Diesel Relay Auto Shut Down Assembly (Qty 1)
- 12 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 13 1/2-13 x 3 Carriage Bolt Grade 5 (Qty 2)
- 14 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 15 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 4)
- 16 1/4-20 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 17 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 18 10-24 X 5/8 BS C/S 18-8 SS (Qty 6)
- 19 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 4)
- 20 5/16 x 2 1/2 Bolt (Qty 1)
- 21 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 6)
- 22 3/8 Lockwasher Zinc (Qty 4)
- 23 .360 ID Plastic Washer (Qty 2)
- 24 1/4 x 3/4 Carriage Bolt (Qty 2)
- 25 5/16 USS Flat Washer Zinc (Qty 11)
- 26 5/16 Lock washer Zinc (Qty 6)
- 27 Heat Warning Piezo Buzzer (Qty 1)
- 28 2023 Floor Board Rubber Bumpers (Qty 4)
- 30 2019 Diesel Radiator Kit (Qty 1)
- 31 Reservoir Tank Cap-Overflow Ta (Qty 1)
- 34 5/8 Hose Clamp SS (Qty 1)
- 35 12.5mm/15mm OETIKER 2 Ear Clamp (Qty 3)
- 36 Diesel Clamp - 1 3/4 Vinyl (Qty 1)
- 38 Rubber Trim (Qty 2)
- 39 2020 Renegade 24.7 Manual Fuel Harness (Qty 1)
- 40 Renegade Diesel Counter Weight--Orange (Qty 4)
- 41 2019 2x2 R SERIES Folding Rops (Qty 1)
- 42 Anti-Wobble Patent Decal (Qty 1)
- 43 Radiator Screen Diesel (Qty 1)
- 44 2019 Diesel Radiator Mount-Right--Orange (Qty 1)
- 45 2019 Diesel Radiator Mount-Left--Orange (Qty 1)
-
1#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
2#013-0054-00
1/4-20 Cage Nut
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
4#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
5#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
6#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
7#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
10#015-0111-00
Overflow Reservoir-27 Kaw
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
11#015-0129-00
Diesel Relay Auto Shut Down Assembly
Qty Used: 1Regular price $299.99 USDRegular priceUnit price per
-
12#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
13#018-0067-00
1/2-13 x 3 Carriage Bolt Grade 5
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
14#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
15#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 4Regular price $3.29 USDRegular priceUnit price per
-
16#018-4007-00
1/4-20 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
17#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
18#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
19#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
20#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
21#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
22#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
23#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
24#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
25#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 11Regular price $0.79 USDRegular priceUnit price per
-
26#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
27#021-8059-00
Heat Warning Piezo Buzzer
Qty Used: 1Regular price $33.99 USDRegular priceUnit price per
-
28#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 4Regular price $1.09 USDRegular priceUnit price per
-
30#061-5001-98
2019 Diesel Radiator Kit
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
31#066-8075-00
Reservoir Tank Cap-Overflow Ta
Qty Used: 1Regular price $5.89 USDRegular priceUnit price per
-
34#072-8067-00
5/8 Hose Clamp SS
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
35#072-8076-00
12.5mm/15mm OETIKER 2 Ear Clamp
Qty Used: 3Regular price $1.99 USDRegular priceUnit price per
-
36#072-8090-00
Diesel Clamp - 1 3/4 Vinyl
Qty Used: 1Regular price $3.30 USDRegular priceUnit price per
-
38#084-4015-00
Rubber Trim
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
39#086-0247-20
2020 Renegade 24.7 Manual Fuel Harness
Qty Used: 1Regular price $509.41 USDRegular priceUnit price per
-
40#088-1999-00
2019 Outlaw Counter Weight--Orange
Qty Used: 4Regular price $39.79 USDRegular priceUnit price per
-
41#089-0006-00
2019 2x2 R SERIES Outlaw Folding Rops
Qty Used: 1Regular price $436.43 USDRegular priceUnit price per
-
42#091-0020-22
Anti-Wobble Patent Decal
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
43#094-5088-00
Radiator Screen Diesel
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
44#201-8026-00
2019 Diesel Radiator Mount-Right--Orange
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
45#201-8027-00
2019 Diesel Radiator Mount-Left--Orange
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
