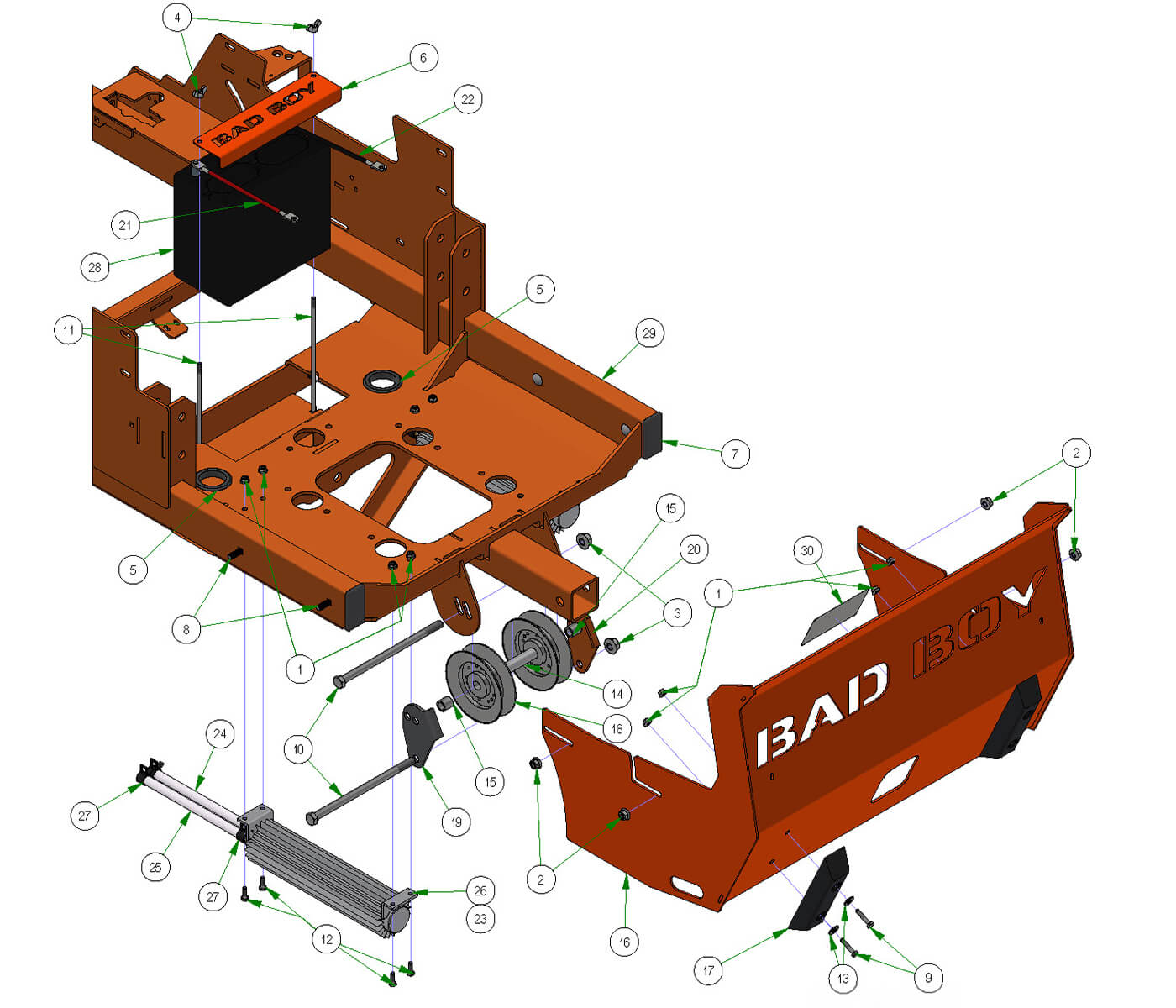

Battery & Rear Cover
Parts Index
- 1 1/4-20 Nylon Insert Flange Nut (Qty 12)
- 2 3/8 Nylock Flange Nut (Qty 4)
- 3 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 4 1/4-20 Wing Nuts Zinc (Qty 2)
- 5 2019 2" x .25 Rubber Grommet (Qty 2)
- 6 Battery Hold Down Cover--Orange (Qty 1)
- 7 1 1/2x 3 Frame Plug (Qty 2)
- 8 3/8 x 2 1/2 Carriage Bolt (Qty 4)
- 9 1/4-20 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 10 1/2-13 X 9 GR 5 Hex Bolts Zinc (Qty 2)
- 11 1/4-20 X 9 Carriage Bolts Zinc (Qty 2)
- 12 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 8)
- 13 1/4 USS Flat Washer Zinc (Qty 4)
- 14 2019 Pulley Spacer .75 x 4.375 x .5 ID (Qty 1)
- 15 Spacer 3/4ODx1/2IDx0.75 (Qty 2)
- 16 2019 Horizontal Suspension Rear Cover--Orange (Qty 1)
- 17 8 Bumper (Qty 2)
- 18 2019 Outlaw Horizontal Rear V Pulley (Qty 2)
- 19 Rear Deck Belt Keep-LH-Plated (Qty 1)
- 20 Rear Deck Belt Keep-RH--Plated (Qty 1)
- 21 Red Battery Cable - Diesel (Qty 1)
- 22 Black Battery Cable - Diesel (Qty 1)
- 23 Renegade Oil Cooler-Assy (Qty 2)
- 24 14" 3/8 Clear Hose No Clamp (Qty 1)
- 25 24" 3/8 Clear Hose No Clamps (Qty 1)
- 26 Oil Cooler( with fittings ) (Qty 1)
- 27 3/8 Hose Clamp - CTB-16-STFS (Qty 4)
- 28 Battery - Renegade (Qty 1)
- 30 2019 Renegade Pump Belt Route Decal (Qty 1)
-
1#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-
2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
3#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
4#013-8051-00
1/4-20 Wing Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-

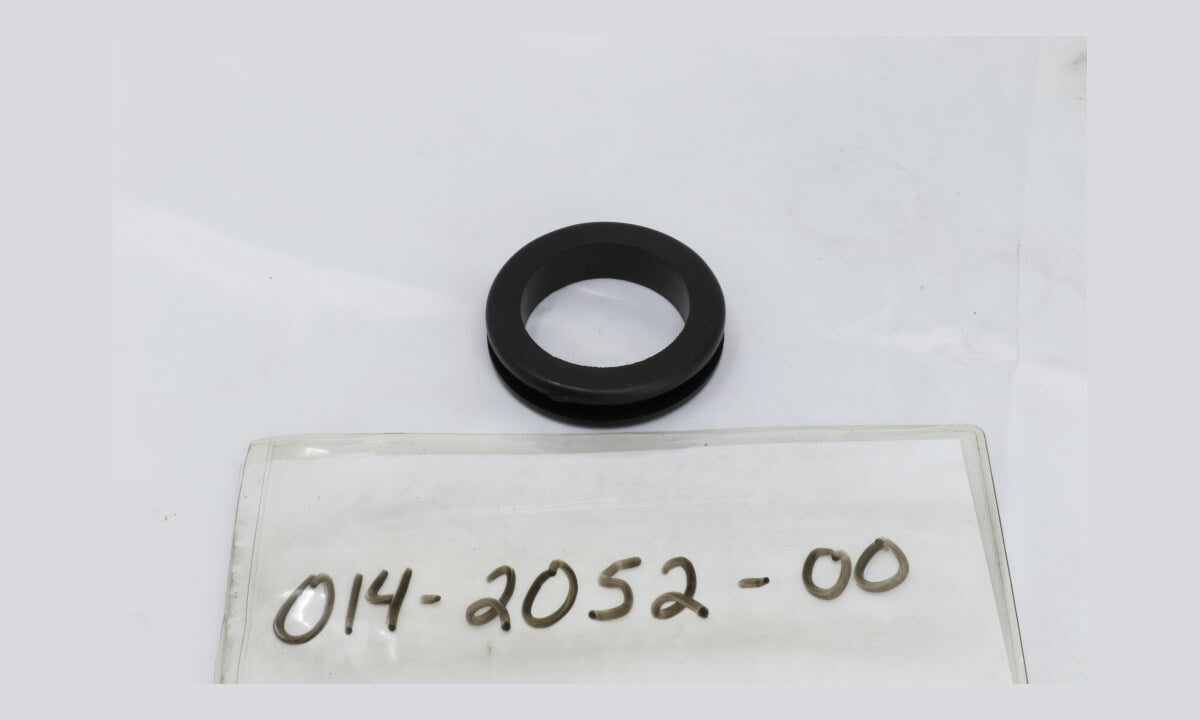

5#014-2052-00
2019 2" x .25 Rubber Grommet
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
6#014-5063-00
Battery Hold Down Cover--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
7#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
8#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
9#018-4702-00
1/4-20 X 1-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
10#018-7010-00
1/2-13 X 9 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $5.29 USDRegular priceUnit price per
-
11#018-8051-00
1/4-20 X 9 Carriage Bolts Zinc
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
12#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
13#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
14#025-0028-00
2019 Pulley Spacer .75 x 4.375 x .5 ID
Qty Used: 1Regular price $8.74 USDRegular priceUnit price per
-
15#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
16#026-2224-00
2019 Horizontal Suspension Rear Cover--Orange
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
-
18#033-7027-00
2019 Outlaw Horizontal Rear V Pulley
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
19#039-0196-00
Rear Deck Belt Keep-LH-Plated
Qty Used: 1Regular price $1.09 USDRegular priceUnit price per
-
20#039-0197-00
Rear Deck Belt Keep-RH--Plated
Qty Used: 1Regular price $1.09 USDRegular priceUnit price per
-
21#064-4000-00
Red Battery Cable - Diesel
Qty Used: 1Regular price $20.85 USDRegular priceUnit price per
-
22#064-4001-00
Black Battery Cable - Diesel
Qty Used: 1Regular price $20.85 USDRegular priceUnit price per
-
23#067-8052-19
Renegade Oil Cooler-Assy
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
24#051-8063-14
14" 3/8 Clear Hose No Clamp
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
25#051-8063-24
24" 3/8 Clear Hose No Clamps
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
26#067-8052-00
Oil Cooler( with fittings )
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
27#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 4Regular price $0.88 USDRegular priceUnit price per
-
28#068-8050-00
Battery - Diesel/Renegade Models M -51
Qty Used: 1Regular price $134.99 USDRegular priceUnit price per
-
30#091-4032-00
2019 Renegade Pump Belt Route Decal
Qty Used: 1Regular price $6.59 USDRegular priceUnit price per
