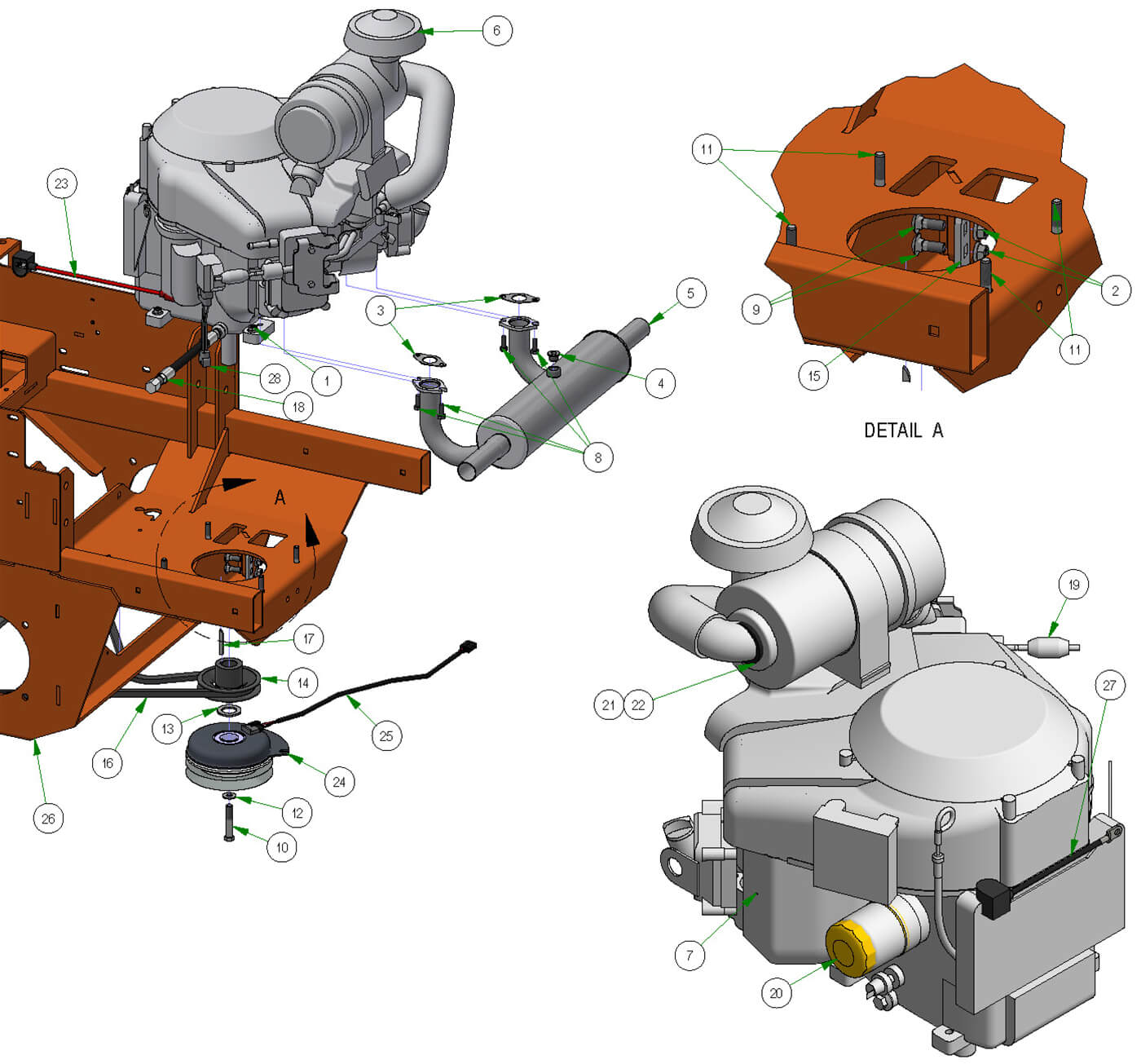

Vanguard EFI
Parts Index
- 1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 4)
- 2 3/8 Nylock Flange Nut (Qty 2)
- 3 Exhaust Gasket for 23 (Qty 2)
- 4 O2 Bung Plug 12mm x 1.25 CS (Qty 1)
- 5 2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI (Qty 1)
- 6 2019 Vanguard EFI 37HP 993cc Vertical Shaft (Qty 1)
- 7 Spark Plug-Kohler/Briggs (Qty 2)
- 8 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 9 3/8 x 1 Carriage Bolt (Qty 2)
- 10 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 11 3/8 x 1 1/2 Bolt (Qty 4)
- 12 3/8 USS Flat Washer Zinc (Qty 1)
- 13 1.140x1.750x .132 Flat Washer (Qty 1)
- 14 4 3/4 Motor Pulley (Qty 1)
- 15 Rebel Clutch Stop Tab (Qty 1)
- 16 2019 & up Rebel Pump Belt (Qty 1)
- 18 14mm Drain Hose-36hp Vanguard (Qty 1)
- 19 Universal Inline Fuel Filter (Qty 1)
- 20 Briggs Oil Filter (Qty 1)
- 21 Canister Air Fil Outer2010&Old (Qty 1)
- 22 Canister Air Filter - Inner (Qty 1)
- 23 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 24 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 25 Clutch Pigtail (Qty 1)
- 26 2023 Rebel Frame--Orange (Qty 1)
- 27 Rebel, Rogue Ground Wire (Qty 1)
- 28 2021 Harness Adapter - Vanguard 37 EFI (Qty 1)
-
1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
3#015-0025-00
Exhaust Gasket for 23
Qty Used: 2Regular price $8.74 USDRegular priceUnit price per
-

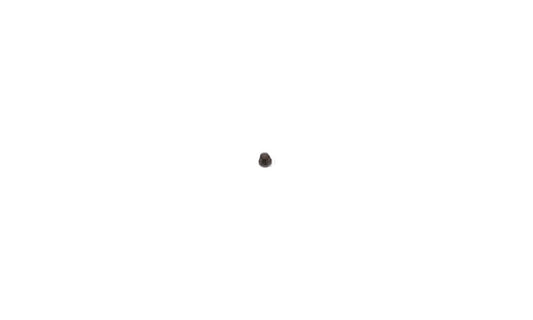

4#015-0050-01
O2 Bung Plug 12mm x 1.25 CS
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
5#015-1014-00
2019 Rebel/Rogue Vanguard 993 Exhaust& 999cc EFI
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
6#015-3001-00
2019 Vanguard EFI 37HP 993cc Vertical Shaft
Qty Used: 1Regular price $2,999.99 USDRegular priceUnit price per
-
7#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-

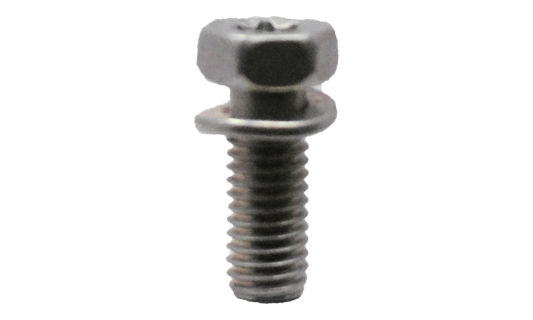

8#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
9#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
10#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
11#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
12#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
13#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
14#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
15#039-0178-00
Rebel Clutch Stop Tab
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
16#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
18#051-5402-00
14mm Drain Hose-36hp Vanguard
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
19#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
20#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
21#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
22#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
23#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
-
25#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
26#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
27#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
28#086-9013-21
2021 Harness Adapter - Vanguard 37 EFI
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
