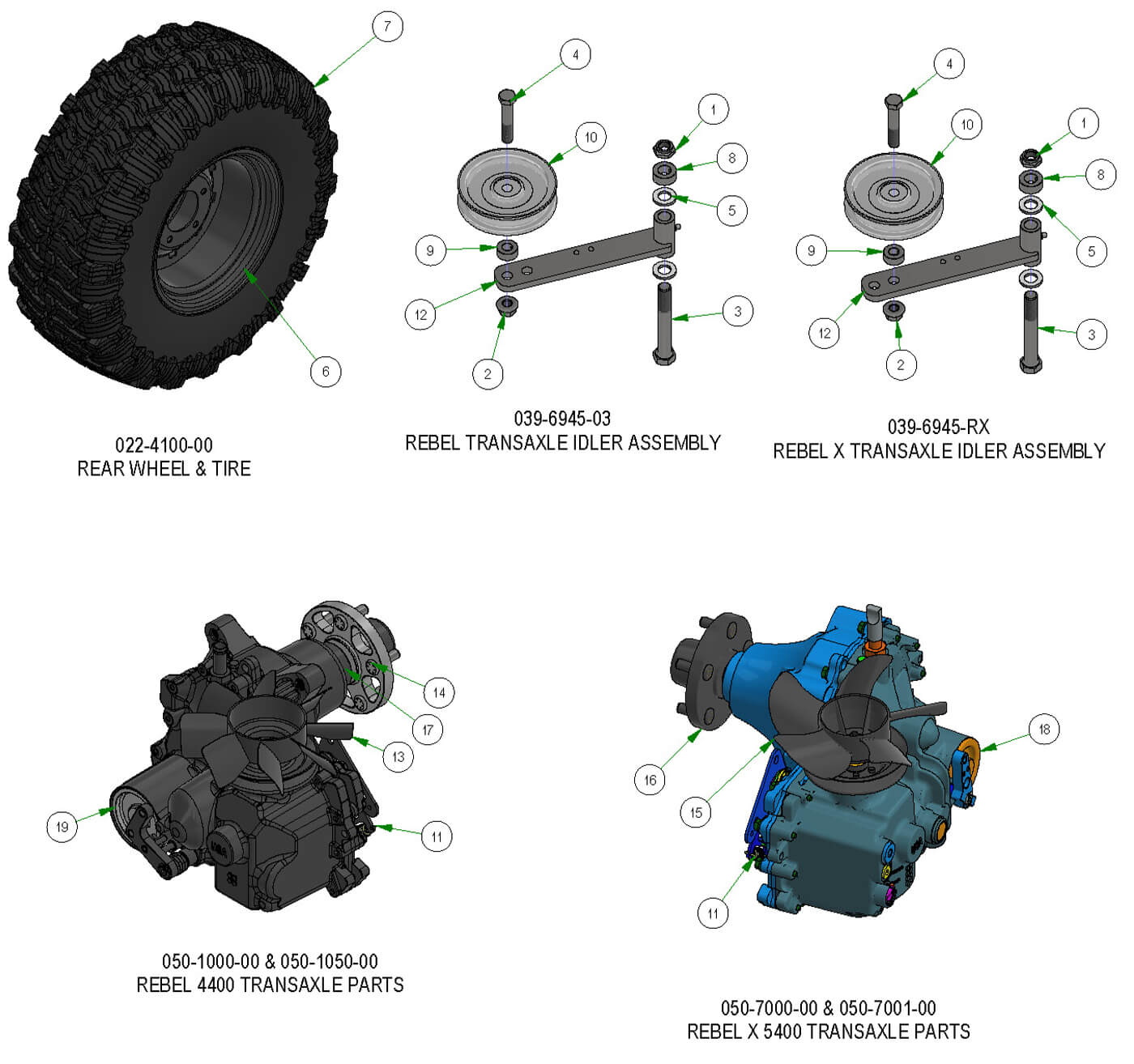

Transaxle Subassemblies
Parts Index
- 1 5/8-11 Nylon Insert Jam Locknu (Qty 2)
- 2 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 3 5/8-11 x 4-1/2 GR 5 Hex Bolt (Qty 2)
- 4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 2)
- 5 .630 ID X 1.122 OD X .142 THK (Qty 4)
- 6 2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00 (Qty 1)
- 7 2018 24x12-12 Reaper Turf Tire-Fits 022-4100-00 (Qty 1)
- 8 5/8 Set Collar W/One Set Screw (Qty 2)
- 9 1/2 Set Collar w/set collar (Qty 2)
- 10 4 3/4 Idler Pulley - ABFI-76 (Qty 2)
- 11 Gold Transaxle Spring (Qty 2)
- 12 Idler Bracket (Qty 2)
- 13 Fan/Pulley Kit for 4400 Outlaw (Qty 1)
- 14 Transaxle Wheel Studs/ Drum Brake Studs (Qty 5)
- 15 Fan/Pulley Kit for 5400 Outlaw (Qty 1)
- 16 Outlaw 5 Bolt Hub for Transaxl (Qty 1)
- 17 Seal Kit for 4400 Series Outlaw Transaxle (Qty 1)
- 18 Hydro Filter for 5400 Transaxle (Qty 1)
- 19 Hydro Filter for 4400 Transaxl (Qty 1)
-
1#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
3#018-5309-00
5/8-11 x 4-1/2 GR 5 Hex Bolt
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
5#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
6#022-4070-00
2015 Outlaw Black Wheel12x8.5"/2019 022-4091-00
Qty Used: 1Regular price $131.99 USDRegular priceUnit price per
-
7#022-4095-00
2018 24x12-12 Reaper Turf Tire-Fits 022-4100-00
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
8#025-7020-00
5/8 Set Collar W/One Set Screw
Qty Used: 2Regular price $3.97 USDRegular priceUnit price per
-
9#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 2Regular price $4.18 USDRegular priceUnit price per
-
10#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
11#034-9080-00
Gold Transaxle Spring
Qty Used: 2Regular price $13.92 USDRegular priceUnit price per
-
12#039-6945-00
Idler Bracket
Qty Used: 2Regular price $37.88 USDRegular priceUnit price per
-
13#050-1025-00
Fan/Pulley Kit for 4400 Outlaw
Qty Used: 1Regular price $109.46 USDRegular priceUnit price per
-
14#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 5Regular price $5.10 USDRegular priceUnit price per
-
15#050-2073-00
Fan/Pulley Kit for 5400 Outlaw
Qty Used: 1Regular price $119.62 USDRegular priceUnit price per
-
16#050-2079-00
Outlaw 5 Bolt Hub for Transaxl
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
17#050-8003-00
Seal Kit for 4400 Series Outlaw Transaxle
Qty Used: 1Regular price $99.51 USDRegular priceUnit price per
-

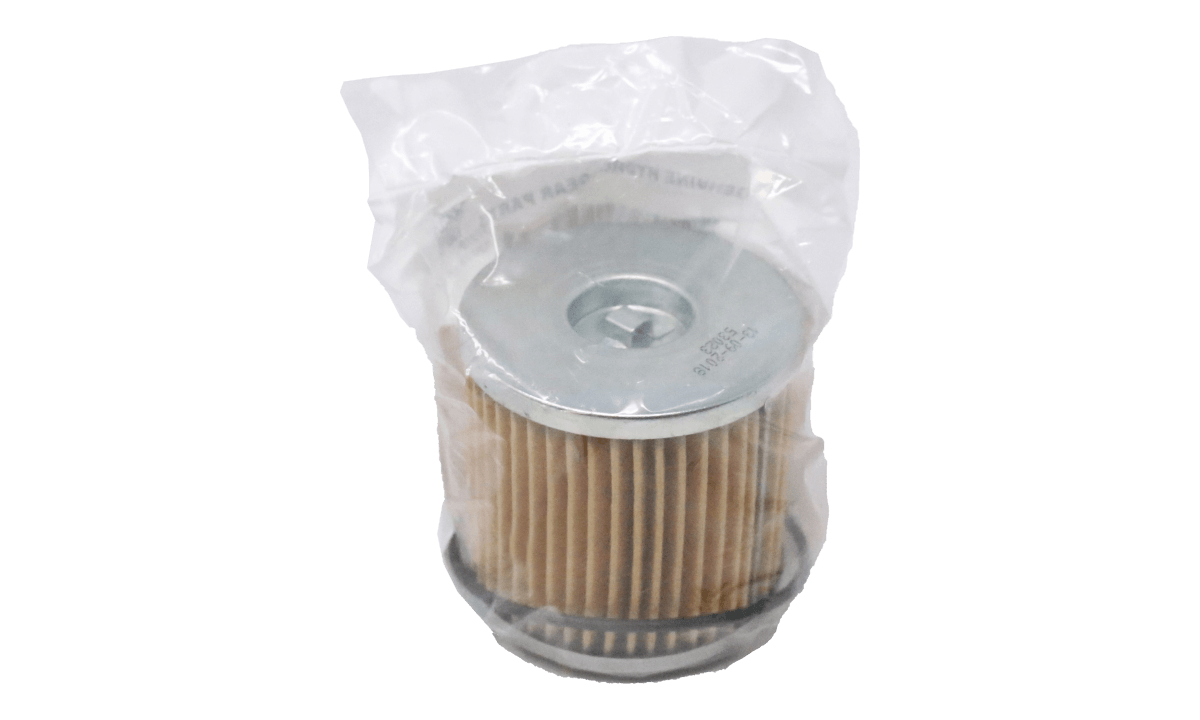

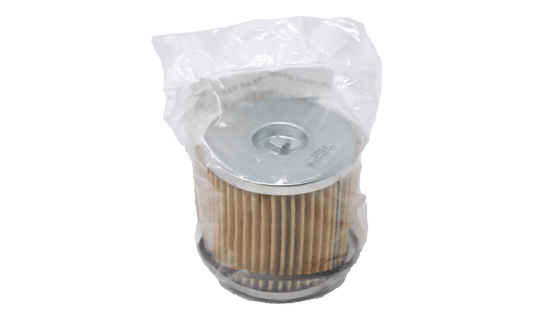

18#063-1060-00
Hydro Filter for 5400 Transaxle
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
19#063-1070-00
Hydro Filter for 4400 Transaxl
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
