Transaxle

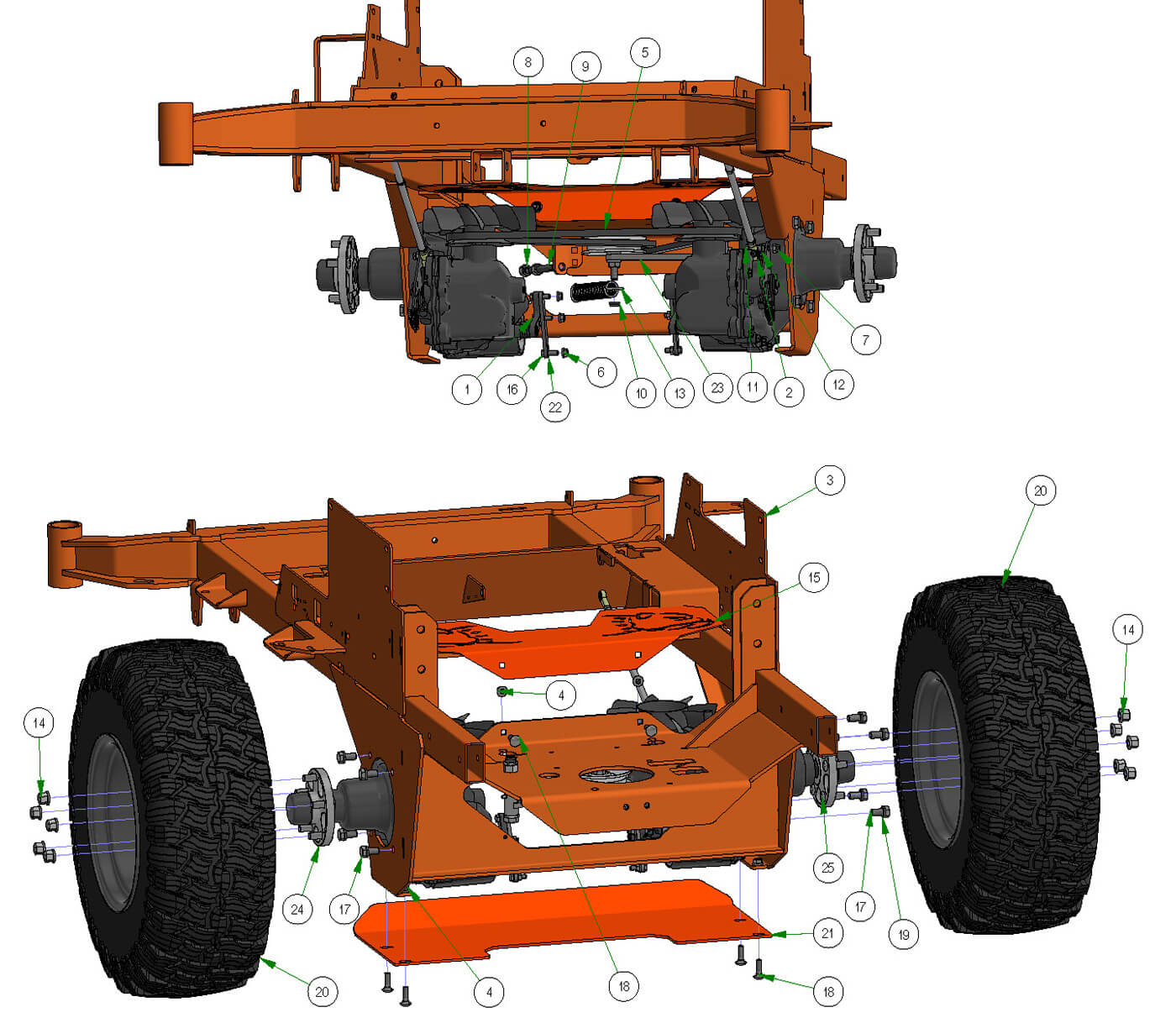

Parts Index
- 1 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 4)
- 2 2024 Rebel Push Rod ASSY (Qty 2)
- 3 2023 Rebel Frame--Orange (Qty 1)
- 4 3/8 Nylock Flange Nut (Qty 6)
- 5 2019 & up Rebel Pump Belt (Qty 1)
- 6 5/16-18 Nylon Flange Nut (Qty 6)
- 7 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 8 1/2-13 Hex Nuts Zinc (Qty 2)
- 9 All Thread (Qty 1)
- 10 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 11 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 12 Drive Arm Transaxle Spacer (Qty 2)
- 13 2019 Deck Spring - Big Diameter (Qty 1)
- 14 Acorn Lug Nut (Qty 10)
- 15 2019 Rigid Fan Guard--Orange (Qty 1)
- 16 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 17 1/2 x 1 Bolt (Qty 8)
- 18 3/8-16 X 1-1/4 Carriage Bolt (Qty 6)
- 19 1/2 Lockwasher Zinc (Qty 8)
- 20 Rear Wheel Assy-24x12-12 Reaper Turf (Qty 2)
- 21 Rigid Skid Plate--Orange (Qty 1)
- 22 2015 Outlaw Brake Adapter Brkt--Plated (Qty 2)
- 23 2019 Rebel Pump Idler (Qty 1)
- 24 4400 Transaxle-Left- Rebel (Qty 1)
- 25 4400 TransaxleRight- Rebel (Qty 1)
-
1#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
2#035-0009-01
2024 Rebel Push Rod ASSY
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
3#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
4#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 6Regular price $1.49 USDRegular priceUnit price per
-
5#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
6#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
7#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
8#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
9#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
10#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
11#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
12#025-0036-00
Drive Arm Transaxle Spacer
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
13#034-9050-00
2019 Deck Spring - Big Diameter
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
14#013-3000-00
Acorn Lug Nut
Qty Used: 10Regular price $2.99 USDRegular priceUnit price per
-
15#014-5070-00
2019 Rigid Fan Guard--Orange
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
16#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
17#018-2030-00
1/2 x 1 Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
18#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 6Regular price $0.99 USDRegular priceUnit price per
-
19#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 8Regular price $0.00 USDRegular priceUnit price per
-
20#022-4100-00
2018 Outlaw Assy-24x12-12 Reaper Turf
Qty Used: 2Regular price $299.99 USDRegular priceUnit price per
-
21#026-2240-00
Rigid Skid Plate--Orange
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
22#039-2135-00
2015 Outlaw Brake Adapter Brkt--Plated
Qty Used: 2Regular price $6.99 USDRegular priceUnit price per
-
23#039-6945-03
2019 Rebel Pump Idler
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
24#050-1000-00
4400 Transaxle-Left-Base Outlaw/2019 Rebel
Qty Used: 1Regular price $909.99 USDRegular priceUnit price per
-
25#050-1050-00
4400 TransaxleRight-Base Outlaw/2019 Rebel
Qty Used: 1Regular price $909.99 USDRegular priceUnit price per
