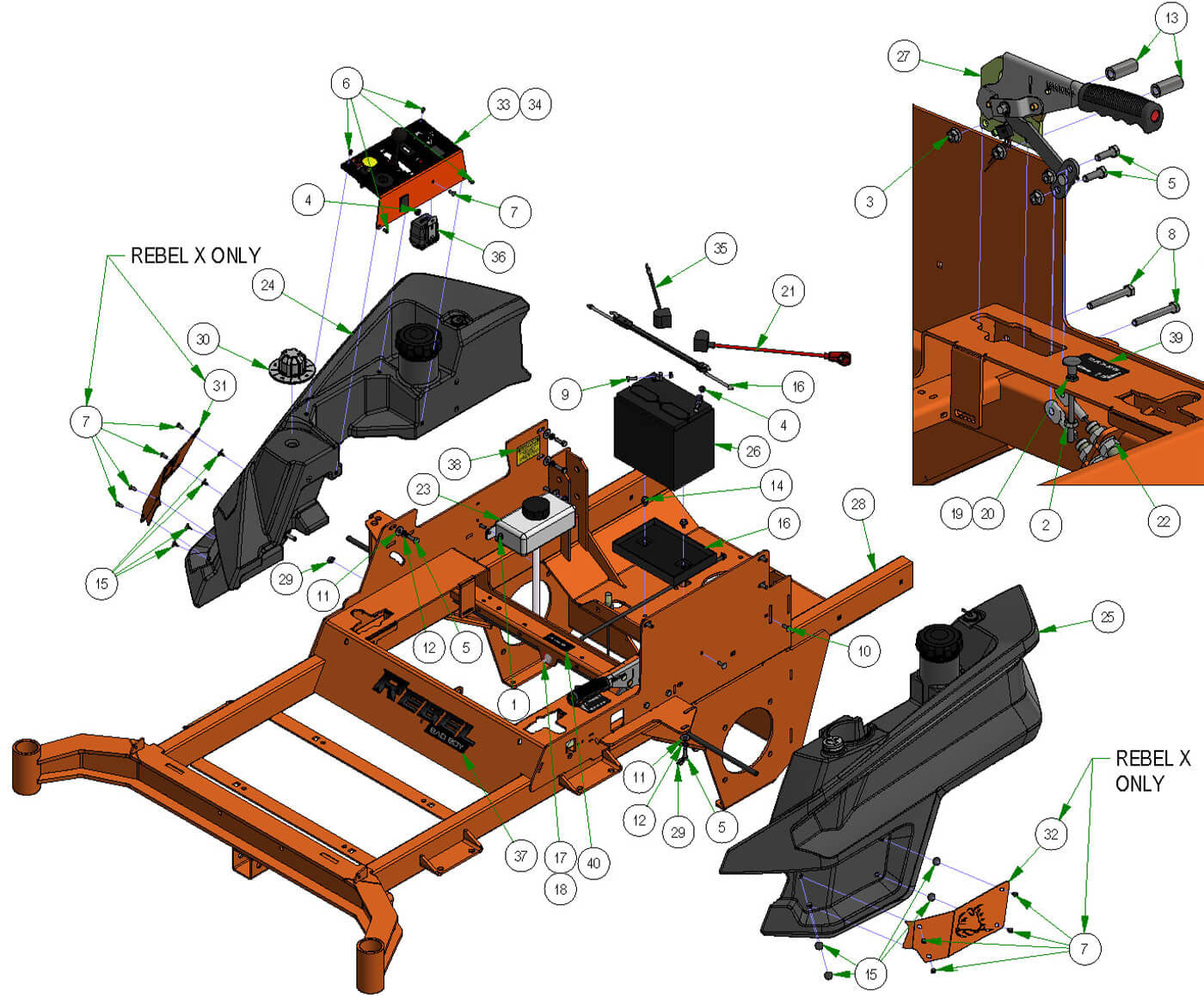

Tanks & Battery
Parts Index
- 1 1/4-20 Nylon Insert Flange Nut (Qty 4)
- 2 3/8-24 Hex Nut Zinc (Qty 1)
- 3 5/16-18 Nylon Flange Nut (Qty 4)
- 4 1/4-20 Hex Flange Nuts Zinc w/ (Qty 3)
- 5 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 10)
- 6 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 7 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 9)
- 8 5/16 x 2 1/2 Bolt (Qty 2)
- 9 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 10 1/4 x 3/4 Carriage Bolt (Qty 4)
- 11 5/16 USS Flat Washer Zinc (Qty 8)
- 12 5/16 Lock washer Zinc (Qty 8)
- 13 2019 Brake Handle Spacer .625 x 1.5 (Qty 2)
- 14 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 2)
- 15 3/16 x .48 Christmas Tree Nylon Black (Qty 8)
- 16 2023 Battery Hold Down Assembly (Qty 1)
- 19 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 20 2019 36HP Vanguard FX1000 Rebel Choke Cable (Qty 1)
- 21 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 22 Long Brake Cable (Qty 2)
- 23 2019 Rebel Hydro Tank Assembly (Qty 2)
- 24 2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS) (Qty 1)
- 25 2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS) (Qty 1)
- 26 Battery - All models except Renegade and Revolt (Qty 1)
- 27 2019 Rebel, Rogue, Renegade Brake Handle Assy (Qty 1)
- 28 2023 Rebel Frame--Orange (Qty 1)
- 29 12.5mm/15mm OETIKER 2 Ear Clamp (Qty 2)
- 30 Deck Height Dial (1.5 - 5.5) (Qty 1)
- 31 Fuel Tank Insert--RH--Orange (Qty 1)
- 32 Fuel Tank Insert--LH--Orange (Qty 1)
- 33 Rebel/Rogue Control Panel Assy (Qty 1)
- 34 2023 Rebel/Rogue FX1000EFI,EVO CONTROL PANEL ASY. (Qty 1)
- 35 Rebel, Rogue Ground Wire (Qty 1)
- 36 2019 Harness-Rebel/Rogue harness-No Display (Qty 1)
- 37 MY24 Rebel Back Plate & Front Decal (Qty 1)
- 38 Yellow Hydraulic Decal (Qty 2)
- 39 R-Series Brake Decal (Qty 1)
- 40 R-Series Shut Off Valve Decal (Qty 1)
-
1#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
2#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
4#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
5#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 10Regular price $0.00 USDRegular priceUnit price per
-
6#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
7#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 9Regular price $0.69 USDRegular priceUnit price per
-
8#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
9#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
10#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
11#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
12#019-8051-00
5/16 Lock washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
13#025-0027-00
2019 Brake Handle Spacer .625 x 1.5
Qty Used: 2Regular price $6.59 USDRegular priceUnit price per
-
14#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
15#040-6081-00
3/16 x .48 Christmas Tree Nylon Black
Qty Used: 8Regular price $2.64 USDRegular priceUnit price per
-
16#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
19#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
20#054-8019-00
2019 36HP Vanguard FX1000 Rebel Choke Cable
Qty Used: 1Regular price $24.80 USDRegular priceUnit price per
-
21#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
22#064-8056-00
Long Brake Cable
Qty Used: 2Regular price $49.99 USDRegular priceUnit price per
-
23#067-8085-19
2019 Rebel Hydro Tank Assembly
Qty Used: 2Regular price $46.65 USDRegular priceUnit price per
-
24#067-9950-50
2019 Right Rebel, Rogue, Renagade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
25#067-9960-50
2019 Left Rebel, Rogue, Renegade Fuel Tank (GAS)
Qty Used: 1Regular price $331.72 USDRegular priceUnit price per
-
26#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
27#069-0001-00
2019 Rebel, Rogue, Renegade Brake Handle Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
28#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
29#072-8076-00
12.5mm/15mm OETIKER 2 Ear Clamp
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
30#077-9002-00
Deck Height Dial (1.5 - 5.5)
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
31#079-3290-00
Fuel Tank Insert--RH--Orange
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
32#079-3291-00
Fuel Tank Insert--LH--Orange
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
33#079-3481-19
Rebel/Rogue Control Panel Assy
Qty Used: 1Regular price $109.00 USDRegular priceUnit price per
-
34#079-3581-23
2023 Rebel/Rogue FX1000EFI,EVO CONTROL PANEL ASY.
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
35#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
36#086-2050-19
2019 Harness-Rebel/Rogue harness-No Display
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
37#091-0514-00
MY24 Rebel Back Plate & Front Decal
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
38#091-1020-00
Yellow Hydraulic Decal
Qty Used: 2Regular price $1.46 USDRegular priceUnit price per
-
39#091-1101-18
2018 Out/XP/Diesel Brake Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
No sequence found for SKU:
R-Series Shut Off Valve Decal
Regular price $0.00 USDRegular priceUnit price per
