Kawasaki FX850

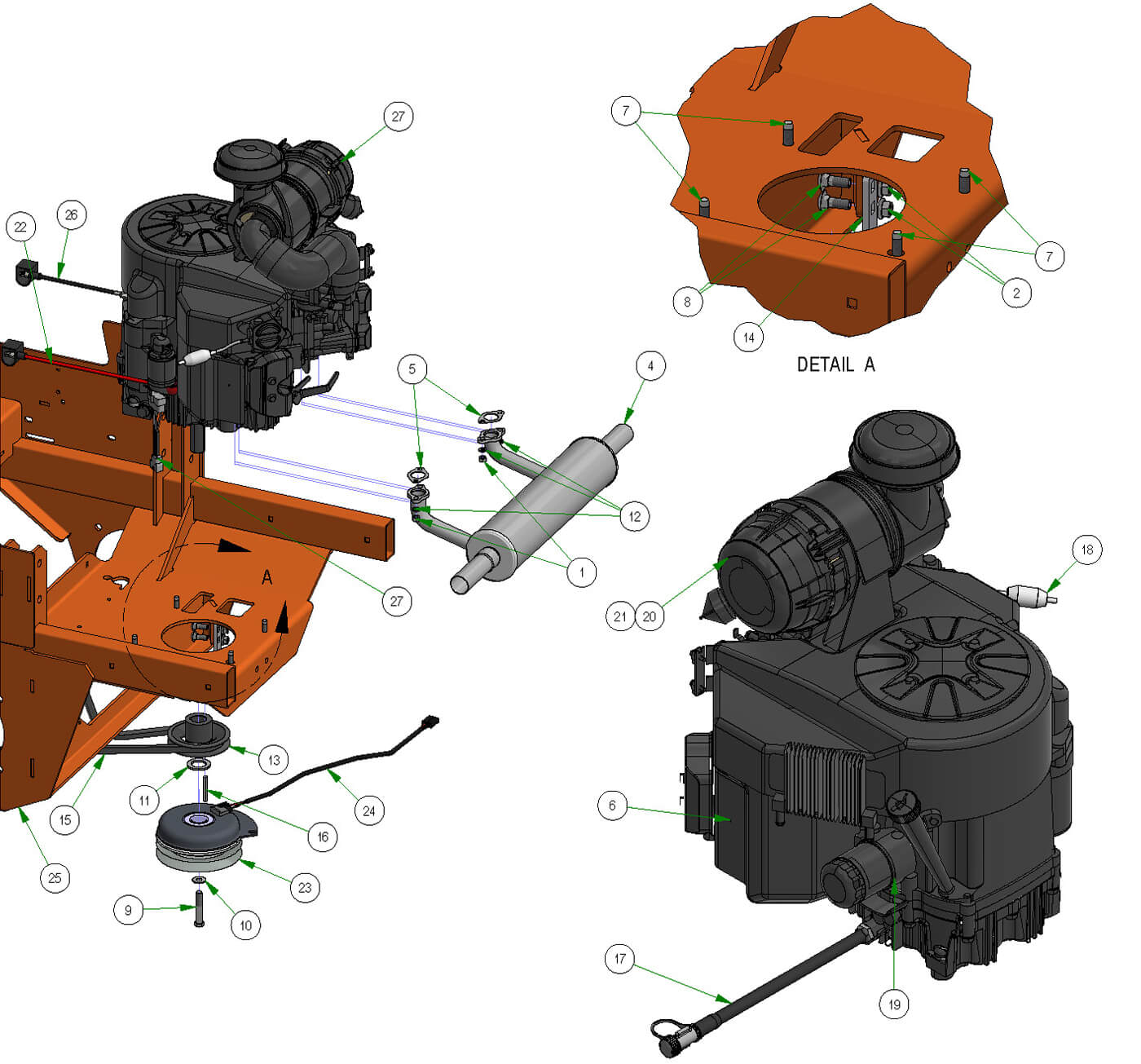

Parts Index
- 1 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 2 3/8 Nylock Flange Nut (Qty 2)
- 4 2019 Rebel/Rogue Kawasaki 850 Muffler (Qty 1)
- 5 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 6 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 7 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 8 3/8 x 1 Carriage Bolt (Qty 2)
- 9 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 10 3/8 USS Flat Washer Zinc (Qty 1)
- 11 1.140x1.750x .132 Flat Washer (Qty 1)
- 12 5/16 Lock washer Zinc (Qty 4)
- 13 4 3/4 Motor Pulley (Qty 1)
- 14 Rebel Clutch Stop Tab (Qty 1)
- 15 2019 & up Rebel Pump Belt (Qty 1)
- 16 1/4 X 2 Square Key Stock (Qty 1)
- 17 Kawasaki Oil Drain (Qty 1)
- 18 Universal Inline Fuel Filter (Qty 1)
- 19 Kawasaki Oil Filter (Qty 1)
- 20 Canister Air Fil Outer2010&Old (Qty 1)
- 21 Canister Air Filter - Inner (Qty 1)
- 22 14" Red Battery Cable- Rebel, Raider (Qty 1)
- 23 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 24 Clutch Pigtail (Qty 1)
- 25 2023 Rebel Frame--Orange (Qty 1)
- 26 Rebel, Rogue Ground Wire (Qty 1)
- 27 2019 Harness Adaptor-R-Series FX/35KA (Qty 1)
- 27.1 31hp Kawa Engine FX-850V-AS15R (Qty 1)
-
1#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
4#015-1011-00
2019 Rebel/Rogue Kawasaki 850 Muffler
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
5#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
6#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
7#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
8#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
9#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
10#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
11#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
12#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
13#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
14#039-0178-00
Rebel Clutch Stop Tab
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
15#041-8050-00
2019 & up Rebel Pump Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
16#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
17#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
18#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
19#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
20#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
21#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
22#064-5301-01
14" Red Battery Cable-Base Outlaw
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
-
24#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
25#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
26#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
27#086-9002-19
2019 Harness Adaptor-R-Series FX/35KA
Qty Used: 1Regular price $18.96 USDRegular priceUnit price per
-
27.1#015-0031-00
31hp Kawa Engine FX-850V-AS15R
Qty Used: 1Regular price $2,995.00 USDRegular priceUnit price per
