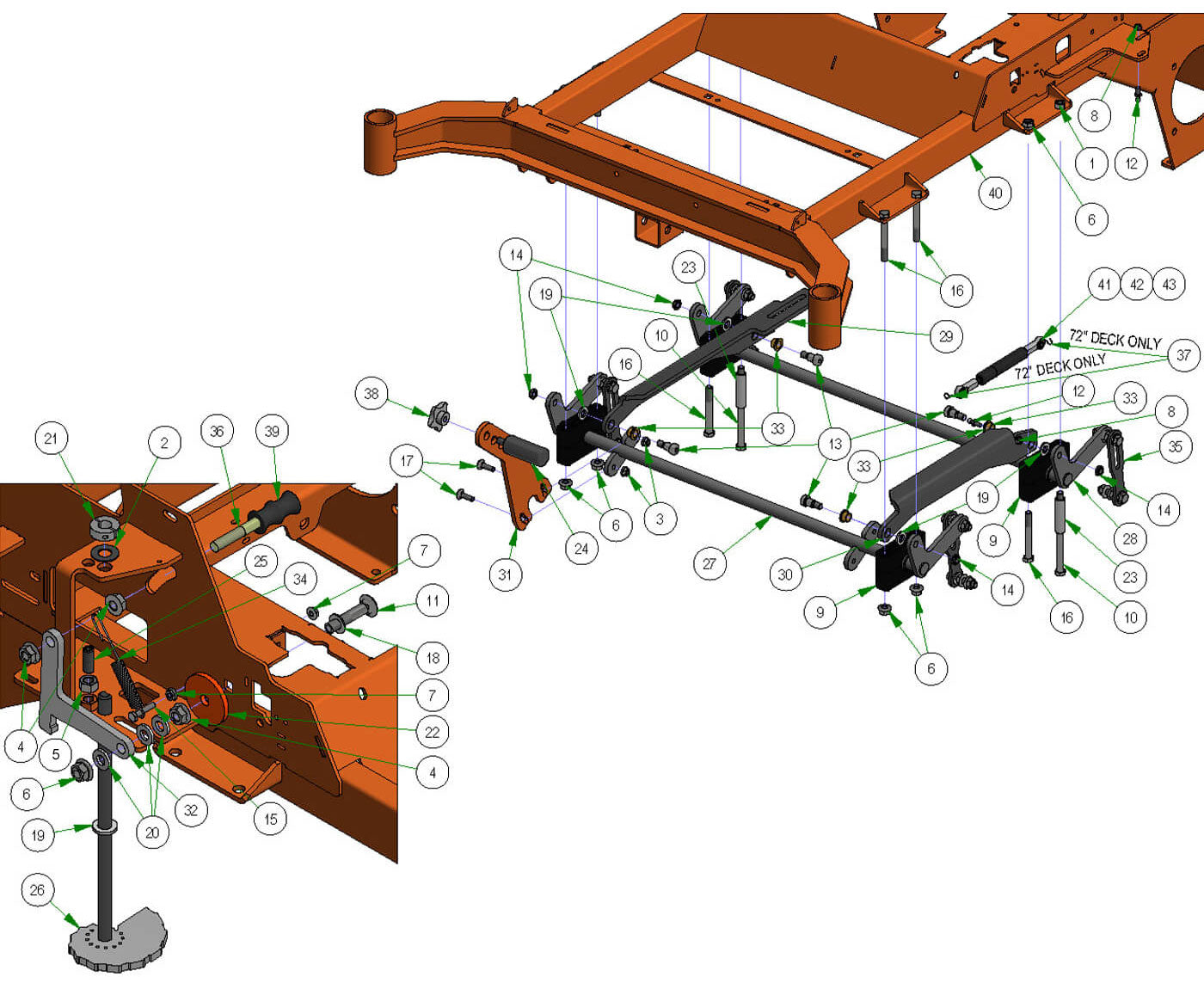

Deck Height

Parts Index
- 1 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 2)
- 2 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 3 3/8 Nylock Flange Nut (Qty 2)
- 4 1/2-13 Hex Fange Nuts Zinc w/ (Qty 3)
- 5 1/2-13 Hex Nuts Zinc (Qty 1)
- 6 1/2-13 Nylon Insert Flange Nut (Qty 7)
- 7 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 8 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 9 2015 Outlaw Pillow Block (Qty 4)
- 10 1/2-13 X 7 Hex Bolt - Grade 5 (Qty 2)
- 11 2 1/2 X 1/2 Carriage Bolt (Qty 1)
- 12 10mm Ball Stud (Long Thread) (Qty 2)
- 13 5/8 x 5/8 Shoulder Bolt (Qty 4)
- 14 1/2-13 Nylon Insert Jam Locknut (Qty 4)
- 15 1/4-20 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 16 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 6)
- 17 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 18 .517 Square Hole Round Washer (Qty 1)
- 19 .630 ID X 1.122 OD X .142 THK (Qty 5)
- 20 .505 ID X 1 OD X .128 THK Washer (Qty 3)
- 21 Split Collar (Qty 1)
- 22 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 23 2019 Deck Stop Spacer (Qty 2)
- 24 Knurled Foot Pedal (Qty 1)
- 25 Deck Height Cam Plunger (Qty 1)
- 26 R-Series Deck Height Dial Rod Assy (Qty 1)
- 27 Actuator Bar (Front) (Qty 1)
- 28 Actuator Bar (Rear) (Qty 1)
- 29 2019 Actuator Linkage-Right-Black (Qty 1)
- 31 Foot Lift Upright Lever--Orange (Qty 1)
- 32 Deck Travel Lock Lever--Plated (Qty 1)
- 33 Bronze Bushing - SF-2024-8 (Qty 4)
- 34 Brake Spring (Qty 1)
- 35 Outlaw/Extreme/XP Deck Hanger Assy (Qty 1)
- 36 Seat Bracket Pin - 2008 Models (Qty 1)
- 37 Security Ring - PC744 For 72" Deck Dampener (Qty 2)
- 38 Star Knob 1/2-13 (Qty 1)
- 39 Grip (Travel Lock) (Qty 1)
- 40 2023 Rebel Frame--Orange (Qty 1)
- 41 Dampener (200lbs) (Qty 1)
- 42 Dampener (250lbs) (Qty 1)
- 43 Dampener (300lbs) (Qty 1)
