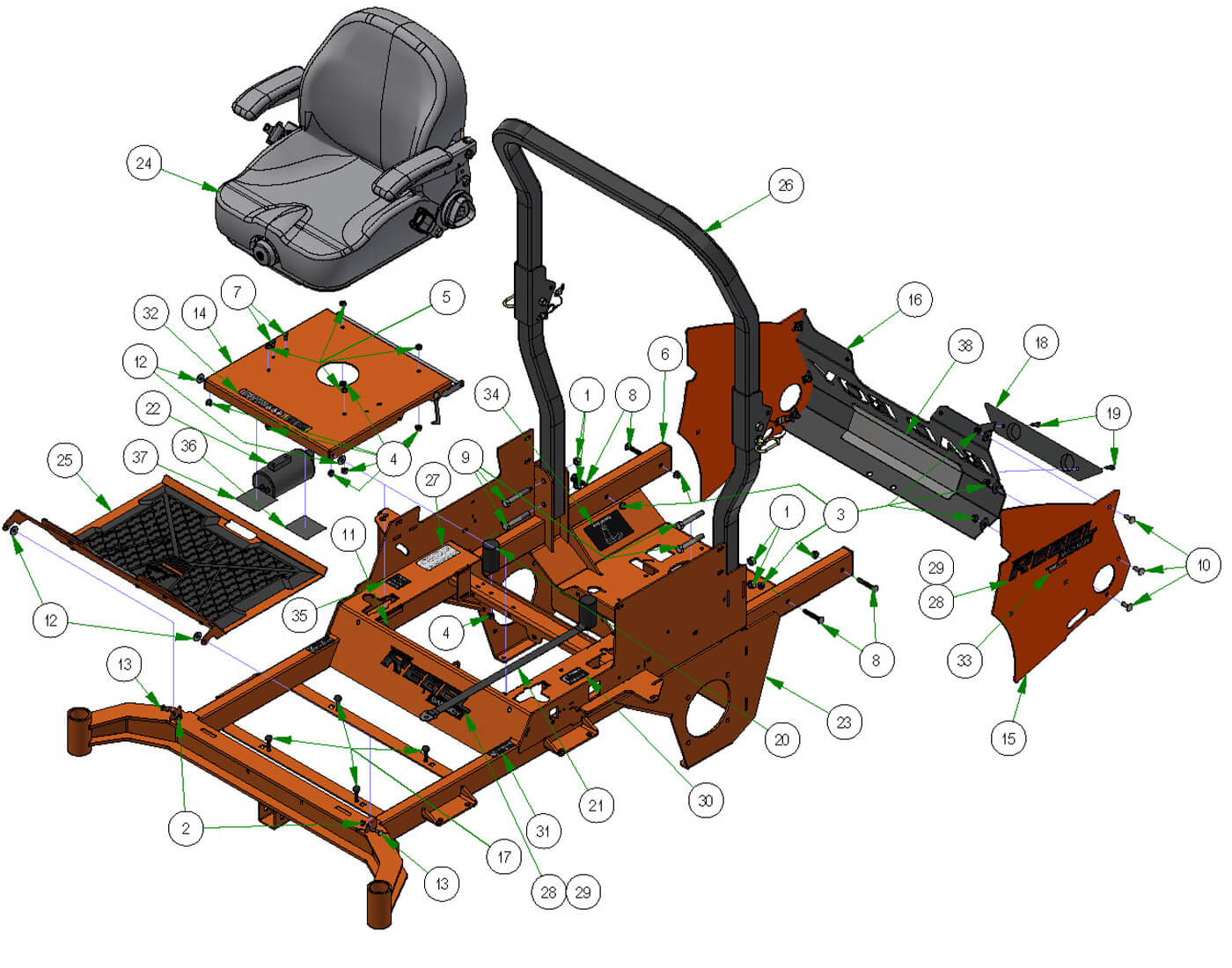

Covers & Seat
Parts Index
- 1 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 2 1/4-20 Nylon Insert Flange Nut (Qty 3)
- 3 3/8 Nylock Flange Nut (Qty 12)
- 4 5/16-18 Nylon Flange Nut (Qty 8)
- 5 5/16-18 Hex Flange Nuts Zinc w (Qty 4)
- 6 1 1/2x 3 Frame Plug (Qty 2)
- 7 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 8 3/8 x 2 1/2 Carriage Bolt (Qty 4)
- 9 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 4)
- 10 3/8 x 1 Carriage Bolt (Qty 6)
- 11 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 12 .360 ID Plastic Washer (Qty 4)
- 13 1/4 x 3/4 Carriage Bolt (Qty 2)
- 14 R-Series Seat Plate Assembly (Qty 1)
- 15 2019 Vertical Rigid Rear Cover Side--Orange (Qty 2)
- 16 2019 Vertical Rear Cover Tailgate-Black (Qty 1)
- 17 2023 Floor Board Rubber Bumpers (Qty 4)
- 18 Bumper (Qty 1)
- 19 1/4-14 x 1 1/4 HWA Unslot Tek Screw (Qty 2)
- 20 Bumper (Seat) (Qty 2)
- 21 Seat Strap with Buckles (Qty 1)
- 22 2019 R-Series EPA Cannister Assembly (Qty 1)
- 23 2023 Rebel Frame--Orange (Qty 1)
- 24 2022 Seats Inc Suspension Seat with seatbelt (Qty 1)
- 26 2019 2x2 R SERIES Folding Rops (Qty 1)
- 28 MY24 Rebel Back Plate & Front Decal (Qty 3)
- 29 MY24 Rebel X Back Plate & Front Decal (Qty 3)
- 30 R-Series Brake Decal (Qty 1)
- 31 R-Series LH/RH Steering Control Decal (Qty 1)
- 32 Long Seat Plate Warning Decal (Qty 1)
- 33 2022 Powered by Kawi Decal (Qty 2)
- 34 2019 Rebel Pump Belt Route Decal (Qty 1)
- 35 2019 Deck Release Decal (Qty 1)
- 36 Control Adj. Control Rod Decal (Qty 1)
- 37 Control Adj. Control Dampener Decal (Qty 1)
- 38 Heat Shield (Fiberglass Adhesive) (Qty 1)
-
1#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
2#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
3#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
4#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
5#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
6#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
7#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
8#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
9#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 4Regular price $1.19 USDRegular priceUnit price per
-
10#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
11#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
12#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
13#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
14#026-2019-21
R-Series Seat Plate Assembly
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
15#026-2219-00
2019 Vertical Rigid Rear Cover Side--Orange
Qty Used: 2Regular price $169.99 USDRegular priceUnit price per
-
16#026-2221-22
2019 Vertical Rear Cover Tailgate-Black
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
17#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 4Regular price $1.09 USDRegular priceUnit price per
-
-
19#030-7047-00
1/4-14 x 1 1/4 HWA Unslot Tek Screw
Qty Used: 2Regular price $0.05 USDRegular priceUnit price per
-
20#032-0001-00
Bumper (Seat)
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
21#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
22#067-0020-19
2019 Outlaw EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
23#070-2304-00
2023 Rebel Frame--Orange
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
24#071-6065-22
2022 Seats Inc Suspension Seat with seatbelt
Qty Used: 1Regular price $829.99 USDRegular priceUnit price per
-
26#089-0006-00
2019 2x2 R SERIES Outlaw Folding Rops
Qty Used: 1Regular price $436.43 USDRegular priceUnit price per
-
28#091-0514-00
MY24 Rebel Back Plate & Front Decal
Qty Used: 3Regular price $9.99 USDRegular priceUnit price per
-
29#091-0515-00
MY24 Rebel X Back Plate & Front Decal
Qty Used: 3Regular price $9.99 USDRegular priceUnit price per
-
30#091-1101-18
2018 Out/XP/Diesel Brake Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
31#091-1114-00
2018 LH/RH Steering Control Decal Roll
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
32#091-3150-00
Outlaw Warning Decal
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
33#091-4003-22
2022 Powered by Kawi Decal
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
34#091-4034-00
2019 Rebel Pump Belt Route Decal
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
35#091-4037-00
2019 Deck Release Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
36#091-4038-00
Control Adj. Control Rod Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
37#091-4039-00
Control Adj. Control Dampener Decal
Qty Used: 1Regular price $5.49 USDRegular priceUnit price per
-
38#091-4050-00
Heat Shield (Fiberglass Adhesive)
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
