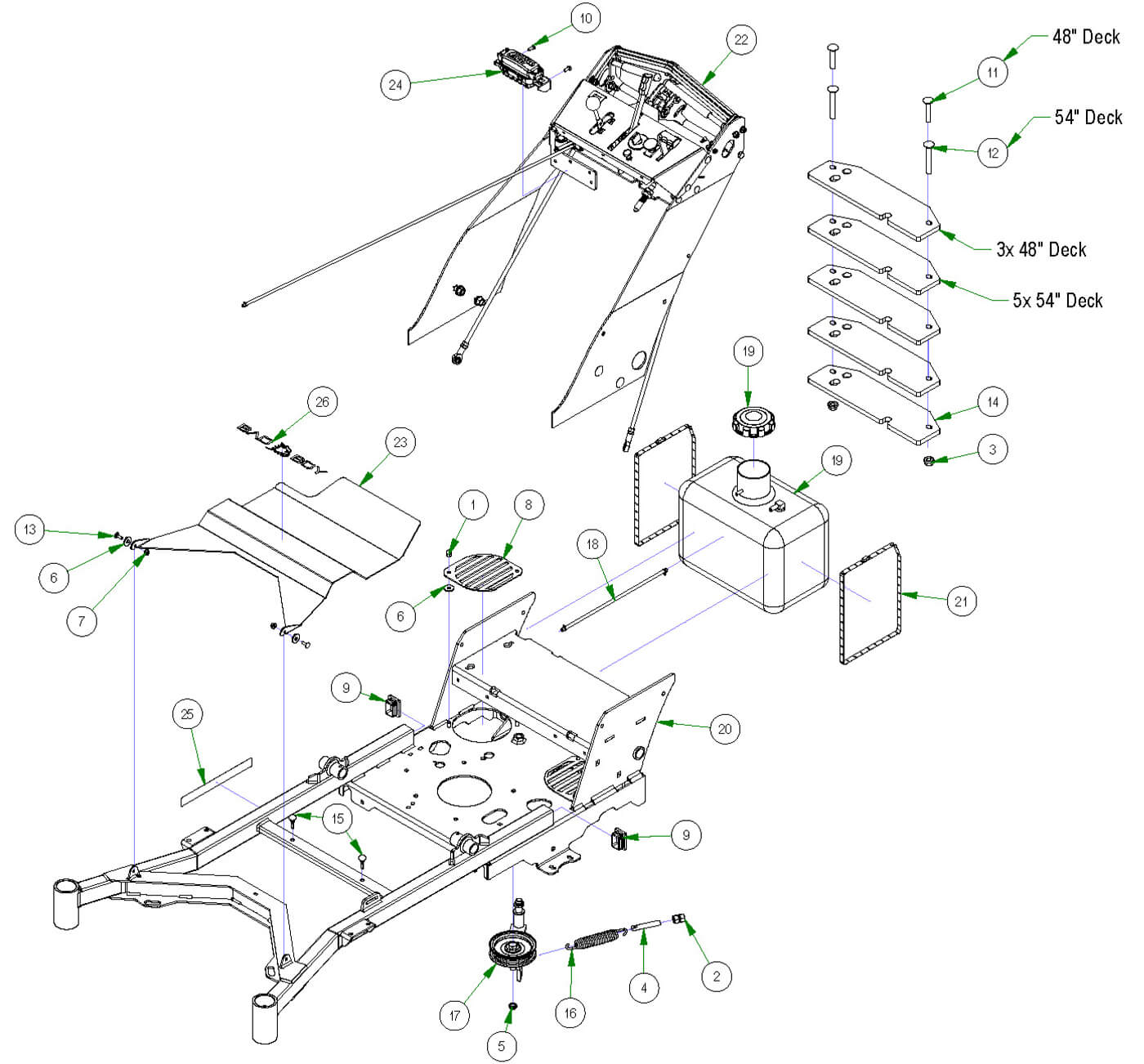

Upper Frame
Parts Index
- 1 Acorn Nut-Pulley Cover (Qty 2)
- 2 1/2-13 Hex Nuts Zinc (Qty 2)
- 3 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 4 All Thread (Qty 1)
- 5 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 6 .360 ID Black Plastic Washer (Qty 4)
- 7 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 8 Walk Behind Bolt On Fan Cover--Orange (Qty 2)
- 10 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 11 2 1/2 X 1/2 Carriage Bolt (Qty 2)
- 13 1/4 x 3/4 Carriage Bolt (Qty 2)
- 15 2023 Floor Board Rubber Bumpers (Qty 2)
- 16 2009 Deck/Pump Idler Spring (Qty 1)
- 17 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)
- 18 15" Revolt Fuel Line Assembly (Qty 1)
- 19 2017/18 Walk Behind Black Fuel Tank (Qty 1)
- 21 Band 13.5" (Qty 2)
- 22 2023 Walk Behind Podium Assembly (Qty 1)
- 23 V2 Floorboard--Black (Qty 1)
- 25 Long Seat Plate Warning Decal (Qty 1)
-
1#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
2#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
3#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
4#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-

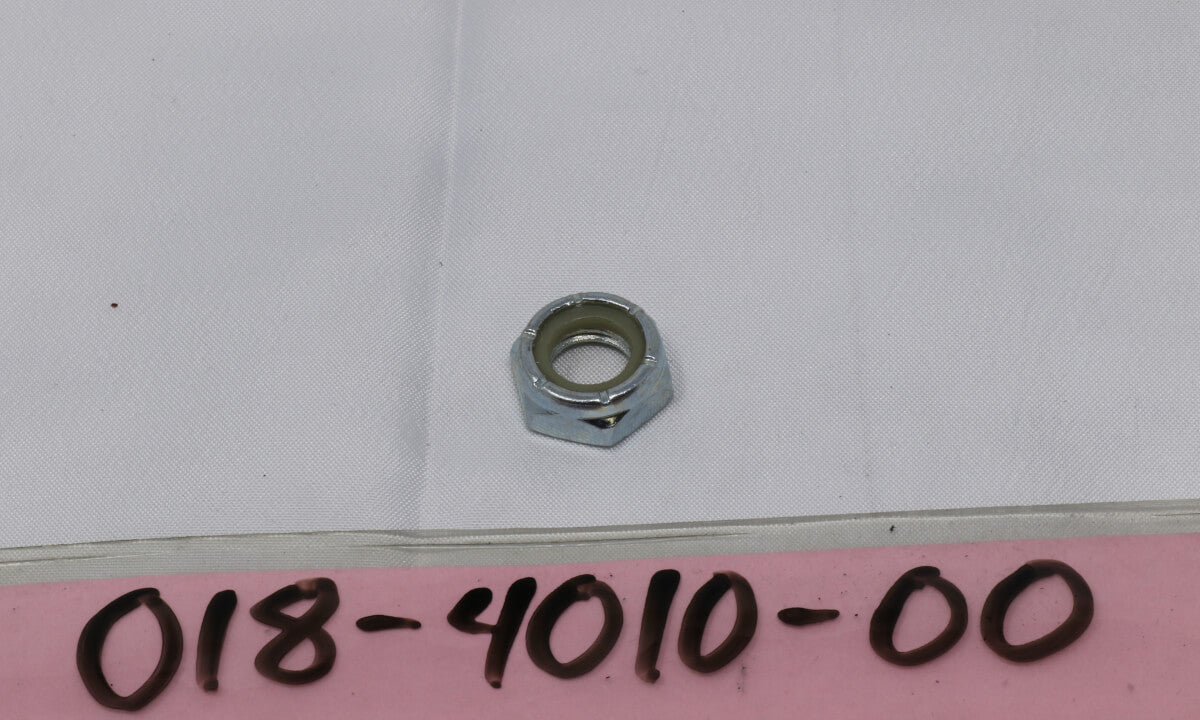

5#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
6#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-

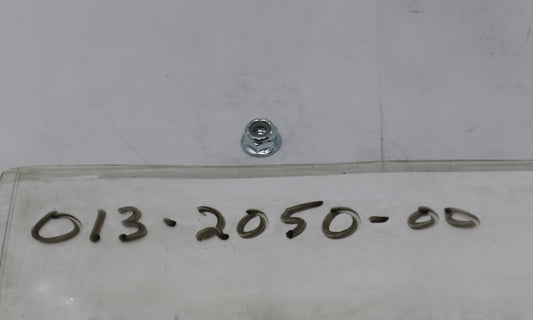

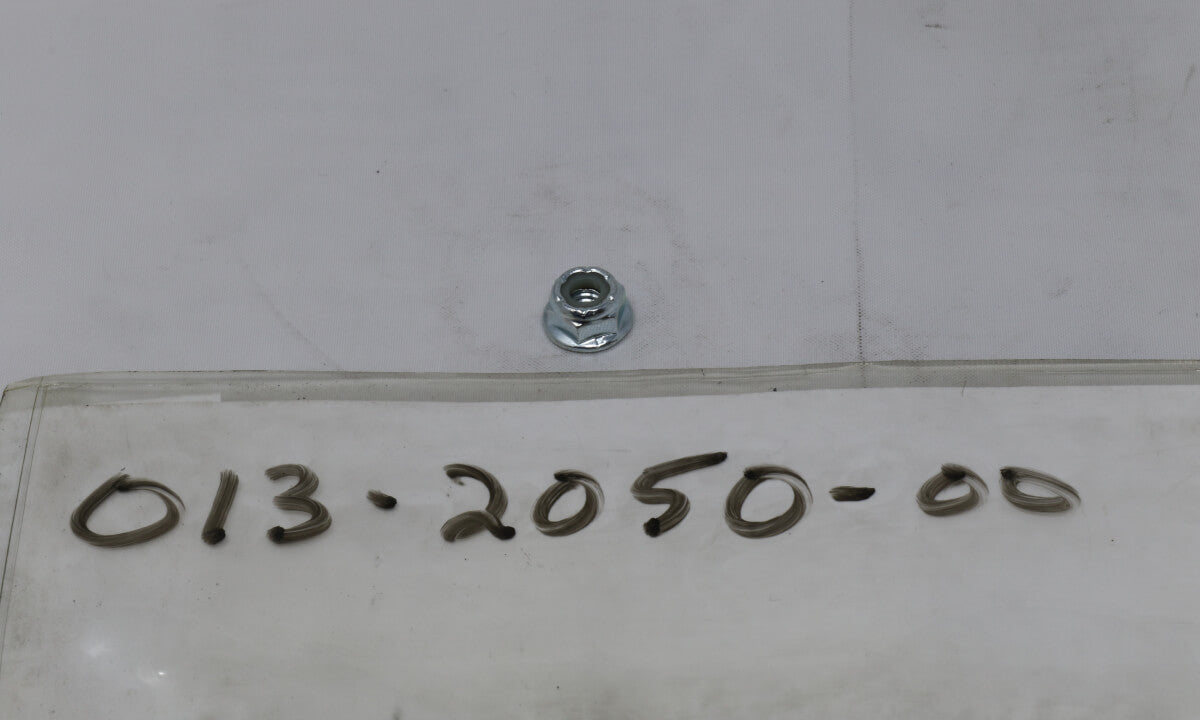

7#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-

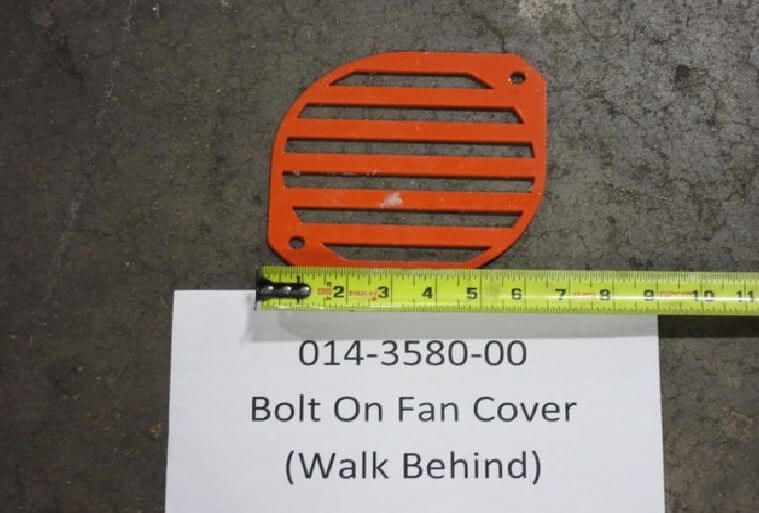

8#014-3580-00
Walk Behind Bolt On Fan Cover--Orange
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-

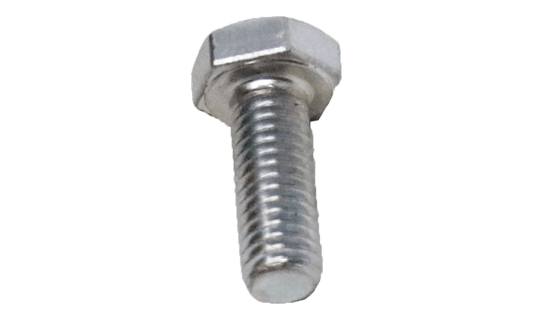

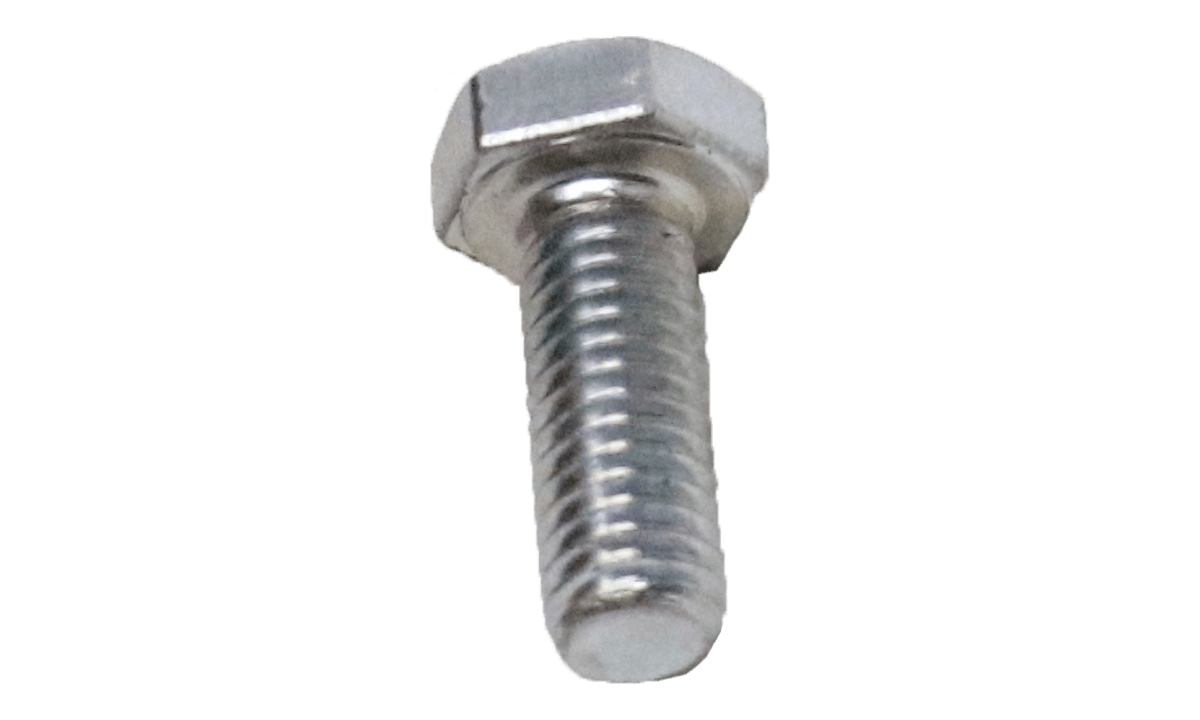

10#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-

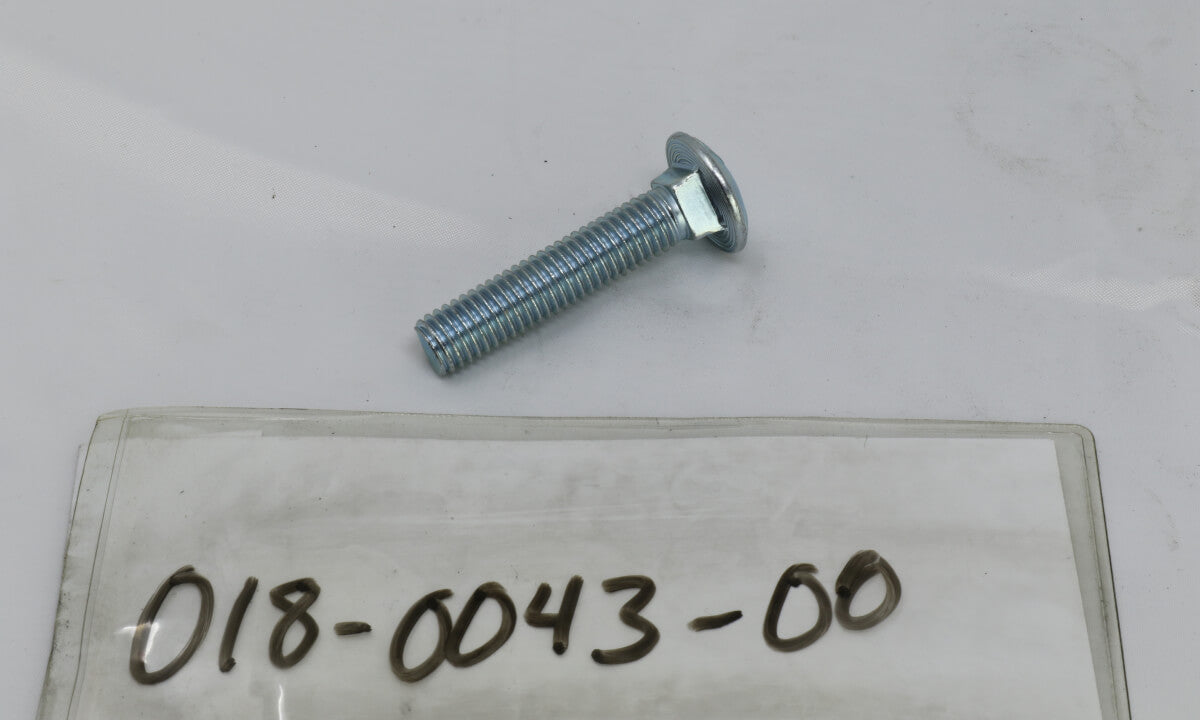

11#018-0043-00
2 1/2 X 1/2 Carriage Bolt
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
13#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
15#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 2Regular price $1.09 USDRegular priceUnit price per
-

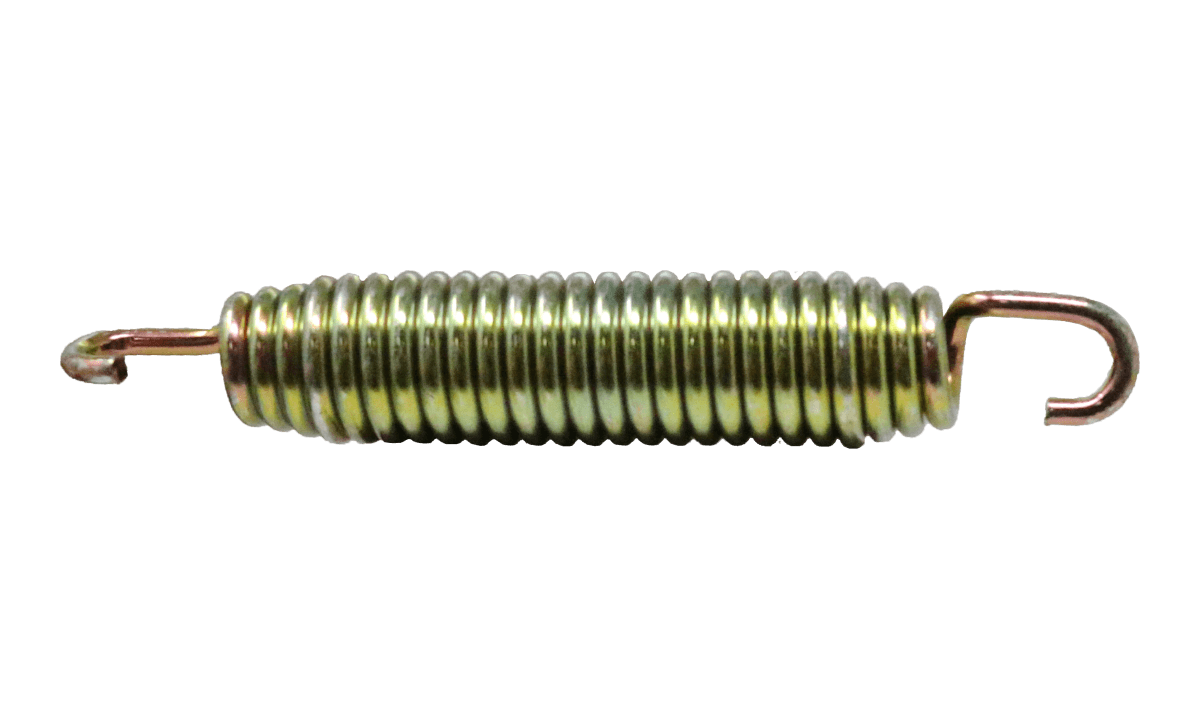

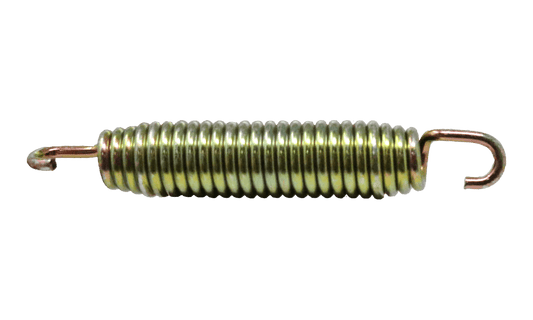

16#034-2009-00
2009 Deck/Pump Idler Spring
Qty Used: 1Regular price $16.99 USDRegular priceUnit price per
-
17#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
No sequence found for SKU:
15\" Revolt Fuel Line Assembly
Regular price $0.00 USDRegular priceUnit price per
-
19#067-0003-00
2017/18 Walk Behind Black Fuel Tank
Qty Used: 1Regular price $290.46 USDRegular priceUnit price per
-

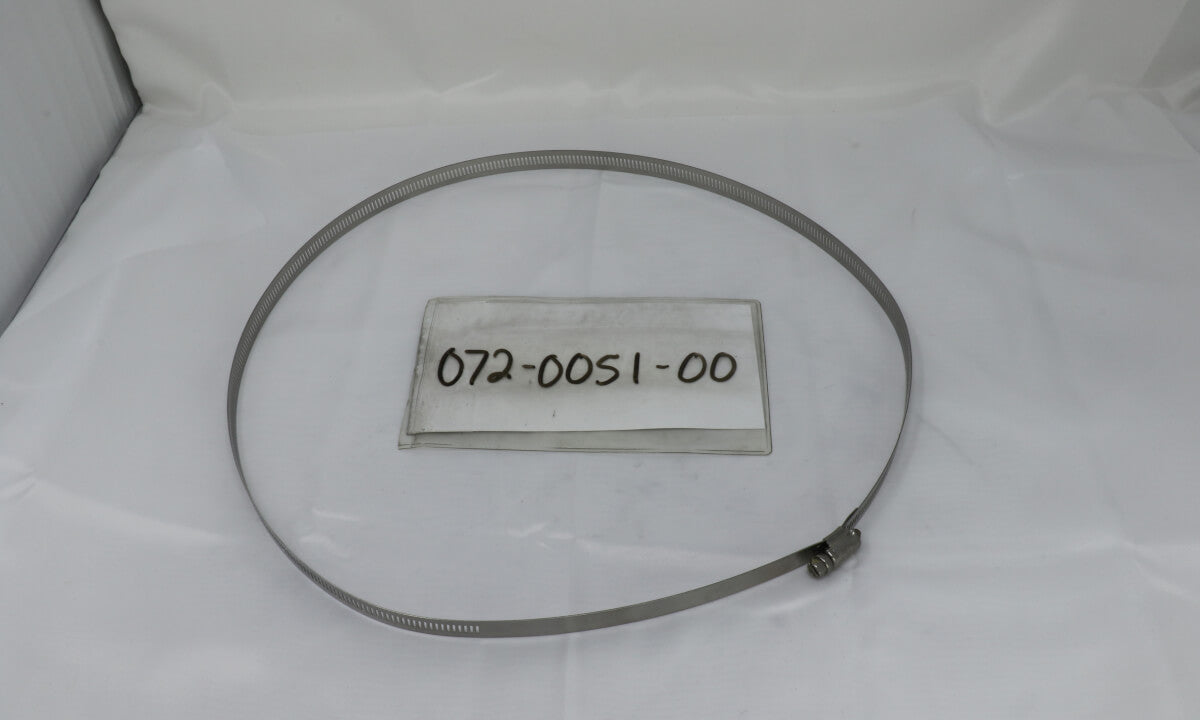

21#072-0051-00
Band 13.5"
Qty Used: 2Regular price $10.60 USDRegular priceUnit price per
-
22#079-0036-23
2023 Walk Behind Podium Assembly
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
23#079-0040-00
V2 Floorboard--Black
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-
25#091-3150-00
Outlaw Warning Decal
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
