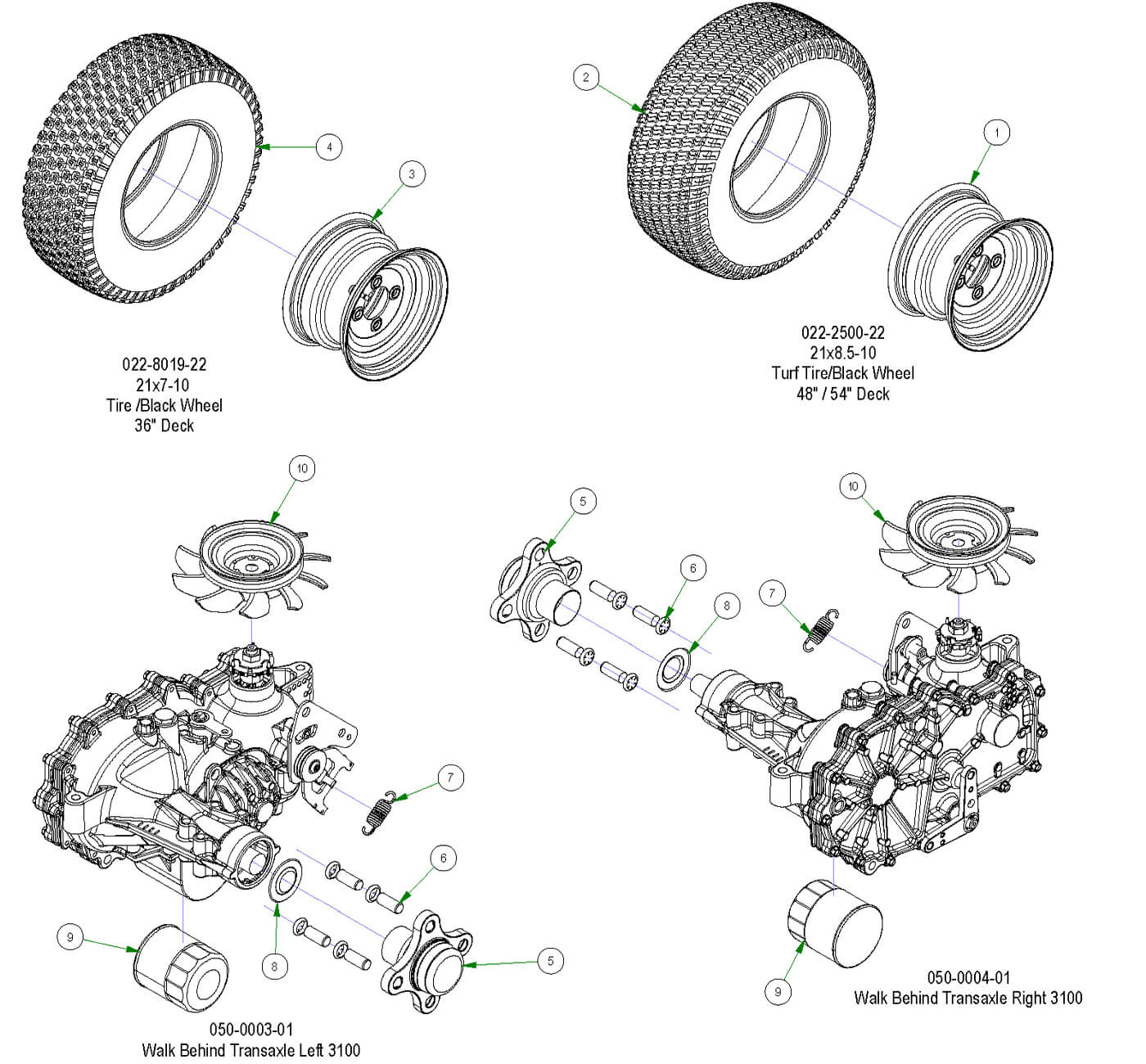

Transaxle Subassemblies
Parts Index
- 2 Tire for 022-2500-22 (Qty 1)
- 4 Walk Behind 36" Tire Only 21 X 7-10 (Qty 1)
- 5 ZT Transaxle Wheel Hub (Qty 1)
- 6 Transaxle Wheel Studs/ Drum Brake Studs (Qty 4)
- 7 Gold Transaxle Spring (Qty 1)
- 8 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 9 ZT Hydraulic Filter (Qty 1)
- 10 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 1)
-

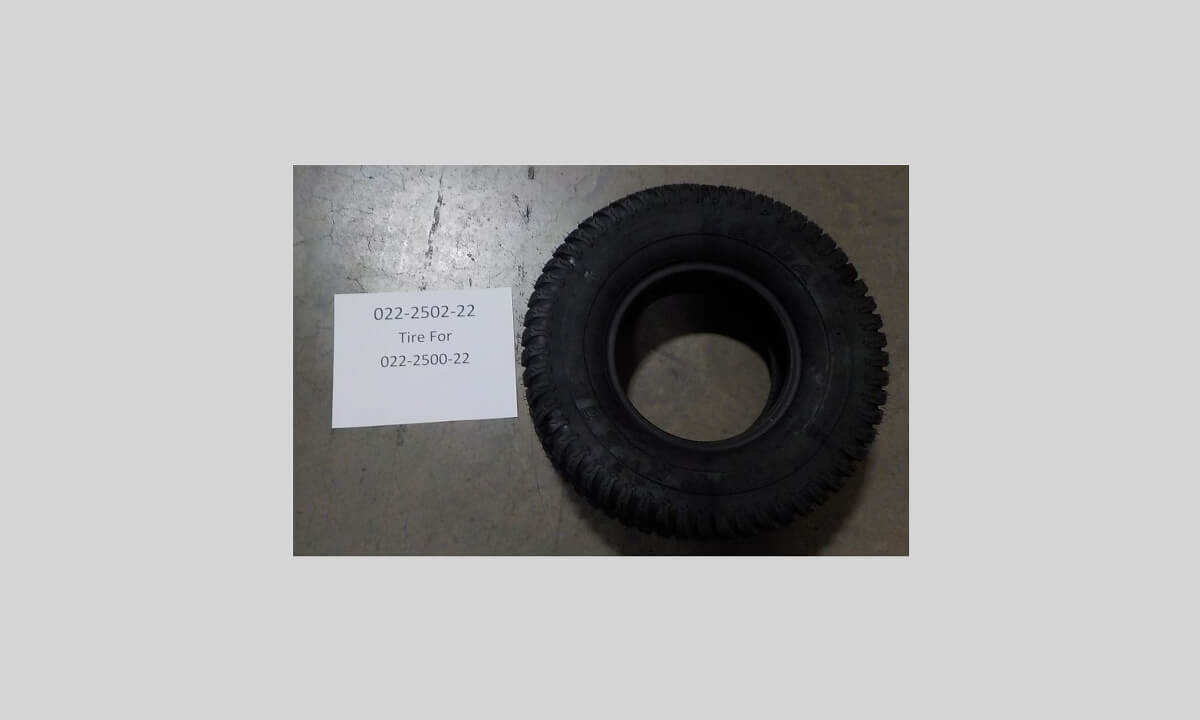

2#022-2502-22
Tire for 022-2500-22
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-
4#022-8023-00
Walk Behind 36" Tire Only 21 X 7-10
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
5#050-2076-00
ZT Transaxle Wheel Hub
Qty Used: 1Regular price $84.64 USDRegular priceUnit price per
-
6#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 4Regular price $5.10 USDRegular priceUnit price per
-
7#034-9080-00
Gold Transaxle Spring
Qty Used: 1Regular price $13.92 USDRegular priceUnit price per
-
8#050-8010-00
2021 ZT/Maverick Transaxle Seal Kit (ZT-2800)
Qty Used: 1Regular price $109.46 USDRegular priceUnit price per
-
9#063-1050-00
ZT Hydraulic Filter
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
10#050-2070-00
2021 ZT/Maverick Transaxle Fan/Pulley Kit
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
