Podium Controls

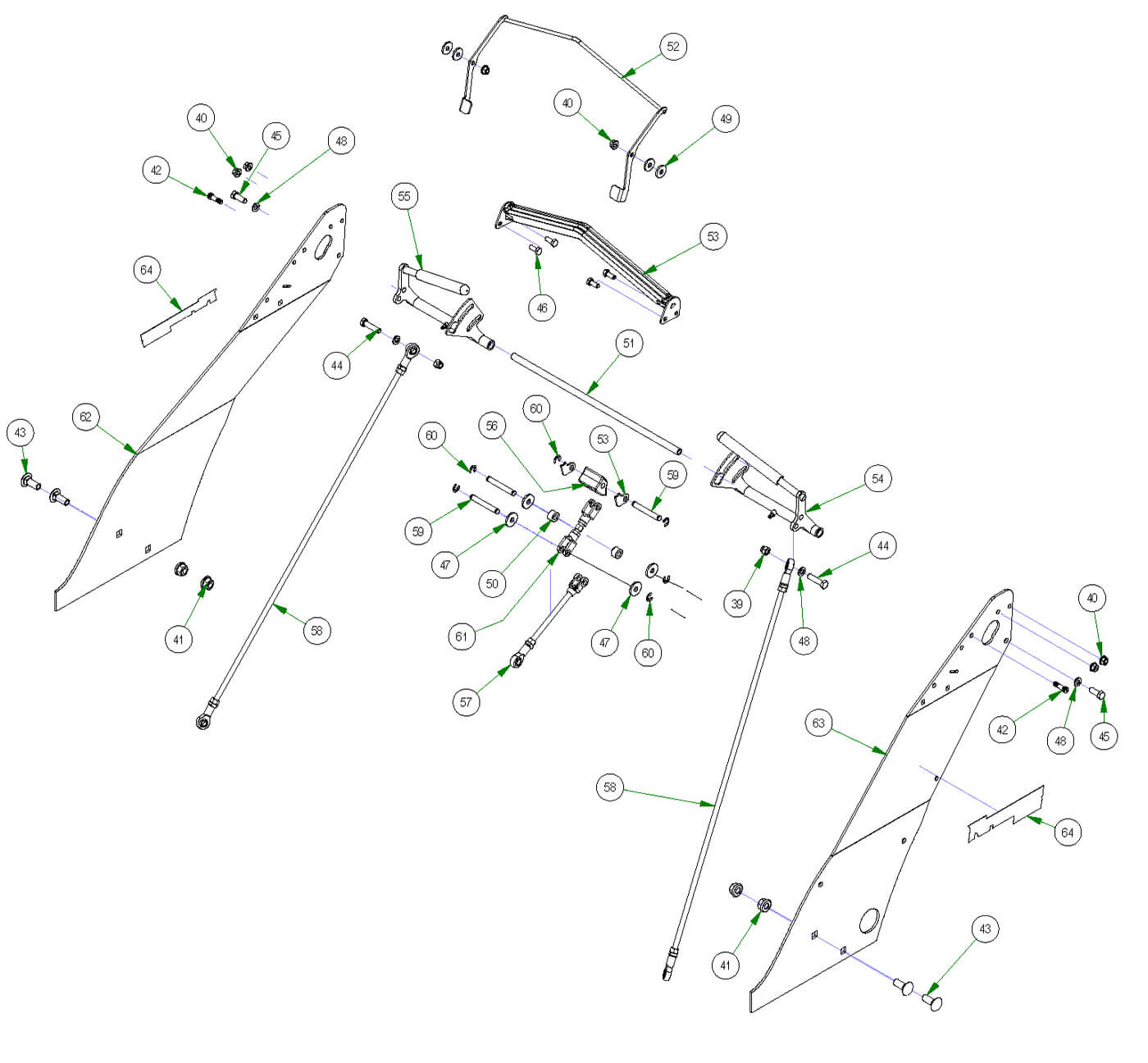

Parts Index
- 39 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 40 5/16-18 Nylon Flange Nut (Qty 6)
- 41 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 42 18-8 Stainless Steel Sholder Screw (Qty 2)
- 43 1/2 x 1 1/4 Carriage Bolt (Qty 4)
- 44 3/8 x 1 1/2 Bolt (Qty 2)
- 45 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 46 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 47 .390 ID Plastic Washer (Qty 4)
- 48 3/8 Lockwasher Zinc (Qty 4)
- 49 .360 ID Plastic Washer (Qty 4)
- 50 MZ Tank Spacer (Qty 2)
- 51 2017 Walk Behind Control Pivot Rod (Qty 1)
- 52 2020 Walk-Behind Presence-Weldment--Black (Qty 1)
- 53 2020 Walkbehind Overmolded Bolt on Handle (Qty 1)
- 54 2020 Walk-Behind Control Lever Assy-Left (Qty 1)
- 55 2020 Walk-Behind Control Lever Assy-Right (Qty 1)
- 56 2020 Walk-Behind Neutral Lever (Qty 1)
- 57 2017 Walk Behind Speed Control Rod Assembly (Qty 1)
- 58 2020 Walk-Behind Push Rod Assembly (Qty 2)
- 59 2020 Walk-Behind Control Pin (Qty 3)
- 60 3/8 E Clip (Qty 6)
- 61 Adjustable Yoke Male/Female (Qty 1)
- 64 Raider Side Plate Decals (Qty 2)
-
39#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
40#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
41#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
42#018-0076-00
18-8 Stainless Steel Sholder Screw
Qty Used: 2Regular price $21.99 USDRegular priceUnit price per
-
43#018-3003-00
1/2 x 1 1/4 Carriage Bolt
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
44#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
45#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
46#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
47#019-2073-00
.390 ID Plastic Washer
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
48#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
49#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
50#025-2025-00
MZ Tank Spacer
Qty Used: 2Regular price $1.33 USDRegular priceUnit price per
-
51#028-0009-00
2017 Walk Behind Control Pivot Rod
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
52#028-0043-00
2020 Walk-Behind Presence-Weldment--Black
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
53#031-0039-70
2020 Walkbehind Overmolded Bolt on Handle
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
54#031-0042-00
2020 Walk-Behind Control Lever Assy-Left
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
55#031-0043-00
2020 Walk-Behind Control Lever Assy-Right
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
56#031-0047-00
2020 Walk-Behind Neutral Lever
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
No sequence found for SKU:
2017 Walk Behind Speed Control Rod Assembly
Regular price $0.00 USDRegular priceUnit price per
-
58#035-0007-98
2020 Walk-Behind Push Rod Assembly
Qty Used: 2Regular price $39.99 USDRegular priceUnit price per
-
59#035-0008-00
2020 Walk-Behind Control Pin
Qty Used: 3Regular price $29.99 USDRegular priceUnit price per
-
60#044-2018-00
3/8 E Clip
Qty Used: 6Regular price $1.99 USDRegular priceUnit price per
-
61#047-9000-00
Adjustable Yoke Male/Female
Qty Used: 1Regular price $13.20 USDRegular priceUnit price per
-
64#091-0520-00
Raider Side Plate Decals
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
