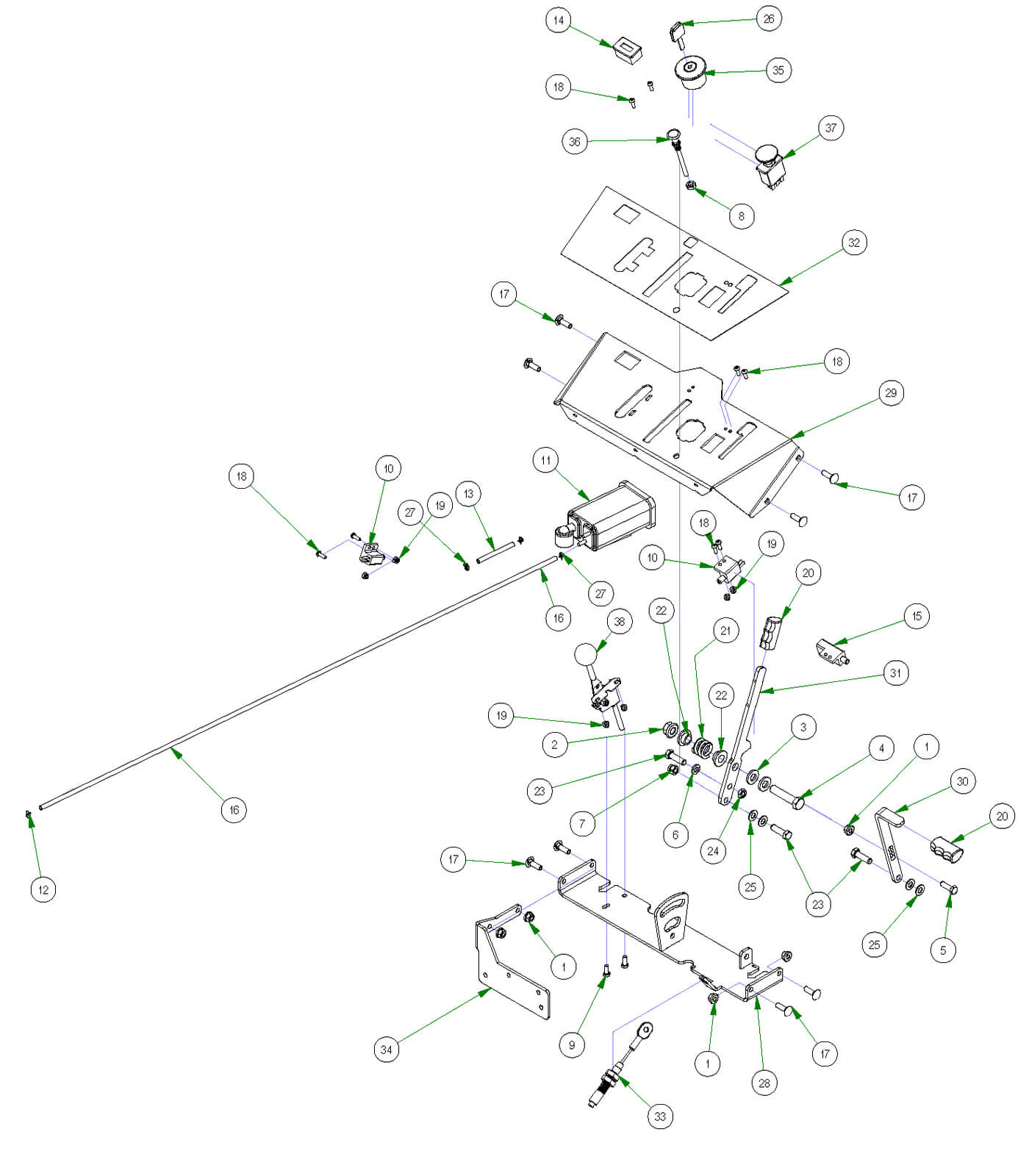

Podium Control Panel
Parts Index
- 1 5/16-18 Nylon Flange Nut (Qty 9)
- 2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 3 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 4 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 1)
- 5 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 6 3/8 Lockwasher Zinc (Qty 1)
- 7 3/8-16 Nylon Insert Locknut Zi (Qty 1)
- 8 3/8-24 Hex Nut Zinc (Qty 1)
- 9 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 10 2017? Walk Behind-Safety Switch (Qty 2)
- 11 Carbon Canister for Magnum/MZ (Qty 1)
- 12 3/16" Vinyl Hose Clamp (Qty 1)
- 13 Clear 3/16" Magnum Air Line (Qty 1)
- 14 Tachometer-N310-0100-1018 (Qty 1)
- 15 2017? Walk Behind-Safety Switch Brake (Qty 1)
- 16 44" x 3/16" black hose (Qty 1)
- 17 5/16-18 X 1 Carriage Bolt Zinc (Qty 8)
- 18 10-24 X 5/8 BS C/S 18-8 SS (Qty 8)
- 19 10-24 Nylon Insert Locknut Zin (Qty 8)
- 20 Rubber Brake Grip-cZT/ZT 2013 (Qty 2)
- 21 Drive Lever Housing Spring (Qty 1)
- 22 .515 ID Plastic Shoulder Washer (Qty 2)
- 23 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 3)
- 24 3/8-16 Centerlock Half Nut (Qty 1)
- 25 .390x.750x.062 Nylon Washer (Qty 4)
- 26 Ignition Key (Qty 1)
- 27 5.5 mm Vinyl Hose Clamp (Qty 3)
- 28 2020 Walk Behind Cross Support--Orange (Qty 1)
- 30 Walk Behind Brake Handle--Black (Qty 1)
- 31 Walk Behind Speed Control Lever--Black (Qty 1)
- 32 2020 Walkbehind Contol Panel Decal (Qty 1)
- 33 Brake Cable Walk Behind/Revolt (Qty 1)
- 35 Ignition Switch (Qty 1)
- 36 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 37 PTO Engager-Switch for Blades (Qty 1)
- 38 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
-
1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 9Regular price $0.79 USDRegular priceUnit price per
-
2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
3#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
4#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
5#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
6#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
7#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
8#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
9#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
10#077-0002-00
2017? Walk Behind-Safety Switch
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
11#067-0015-00
Carbon Canister for Magnum/MZ
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
12#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
13#051-2027-00
Clear 3/16" Magnum Air Line
Qty Used: 1Regular price $1.31 USDRegular priceUnit price per
-
14#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
15#077-0001-00
2017? Walk Behind-Safety Switch Brake
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
16#051-2023-02
44" x 3/16" black hose
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
17#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
18#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
19#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
20#069-7000-00
Rubber Brake Grip-cZT/ZT 2013
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
21#034-8025-00
Drive Lever Housing Spring
Qty Used: 1Regular price $3.70 USDRegular priceUnit price per
-
22#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
23#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
24#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
25#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
26#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
27#072-0002-00
5.5 mm Vinyl Hose Clamp
Qty Used: 3Regular price $2.19 USDRegular priceUnit price per
-
28#201-1171-00
2020 Walk Behind Cross Support--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
30#069-2020-00
Walk Behind Brake Handle--Black
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
31#031-0036-00
Walk Behind Speed Control Lever--Black
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
32#091-4055-00
2020 Walkbehind Contol Panel Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
33#064-3000-00
Brake Cable Walk Behind/Revolt
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
35#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
36#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
37#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
38#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
