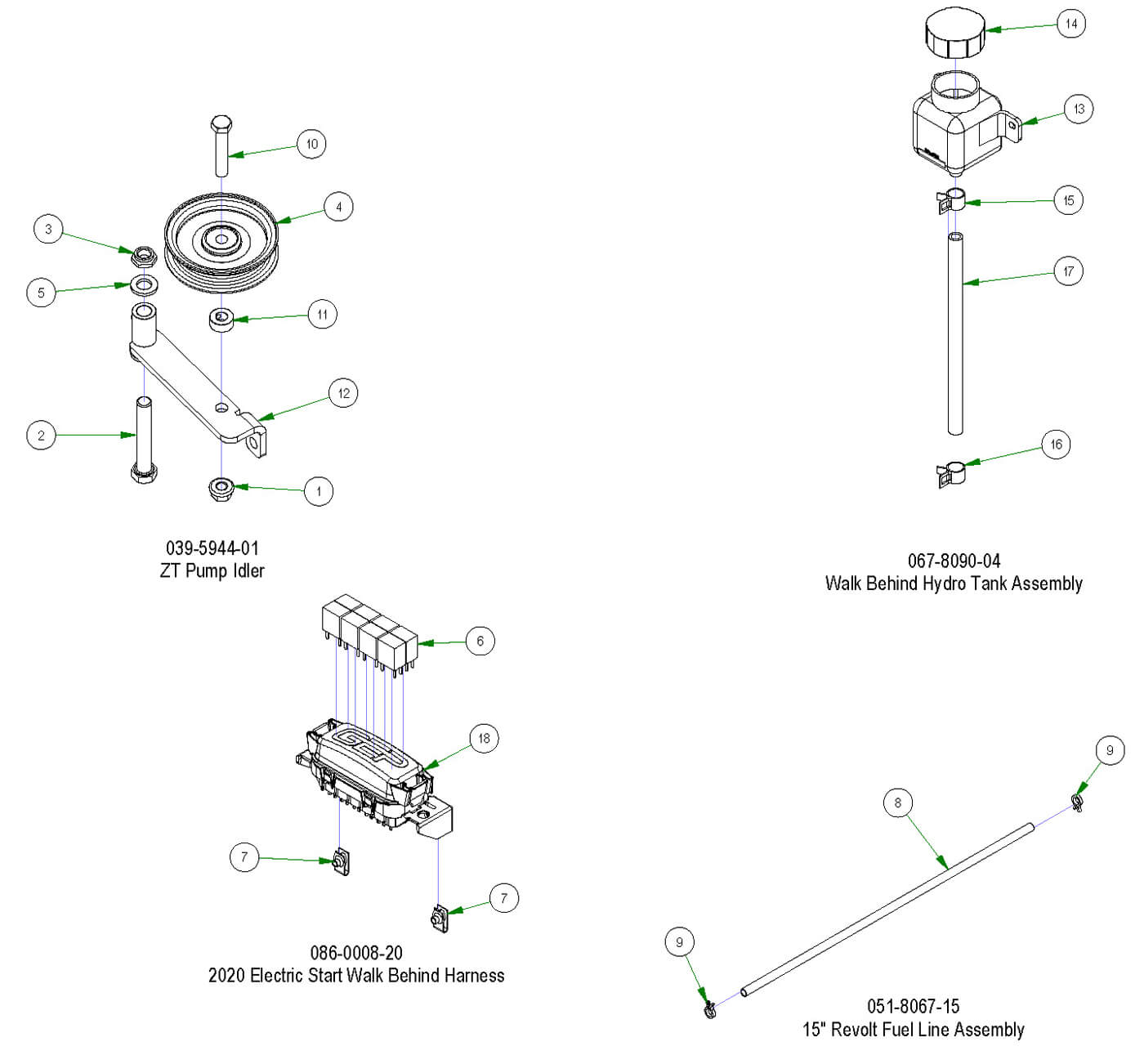

Frame Subassemblies
Parts Index
- 1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 2 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 3 M10x1.25x30MM 8.8 Hex Bolts (Qty 1)
- 4 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 5 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 6 2019 Relay Terminal (Qty 8)
- 7 1/4-20 Cage Nut (Qty 2)
- 8 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 9 1/4 Fuel Line Clamp (Qty 2)
- 10 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 11 1/2 Set Collar w/set collar (Qty 1)
- 12 Idler Bracket (Qty 1)
- 13 71328-Expansion Tank CZT/ZT (Qty 1)
- 14 ZT Hydraulic Tank Cap (Qty 1)
- 15 3/8 Hose Clamp - CTB-16-STFS (Qty 1)
- 16 1/2 Hose Clamp (Qty 1)
- 17 3/8 Clear Hose PRICED PER FOOT (Qty 1)
-
1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
2#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-

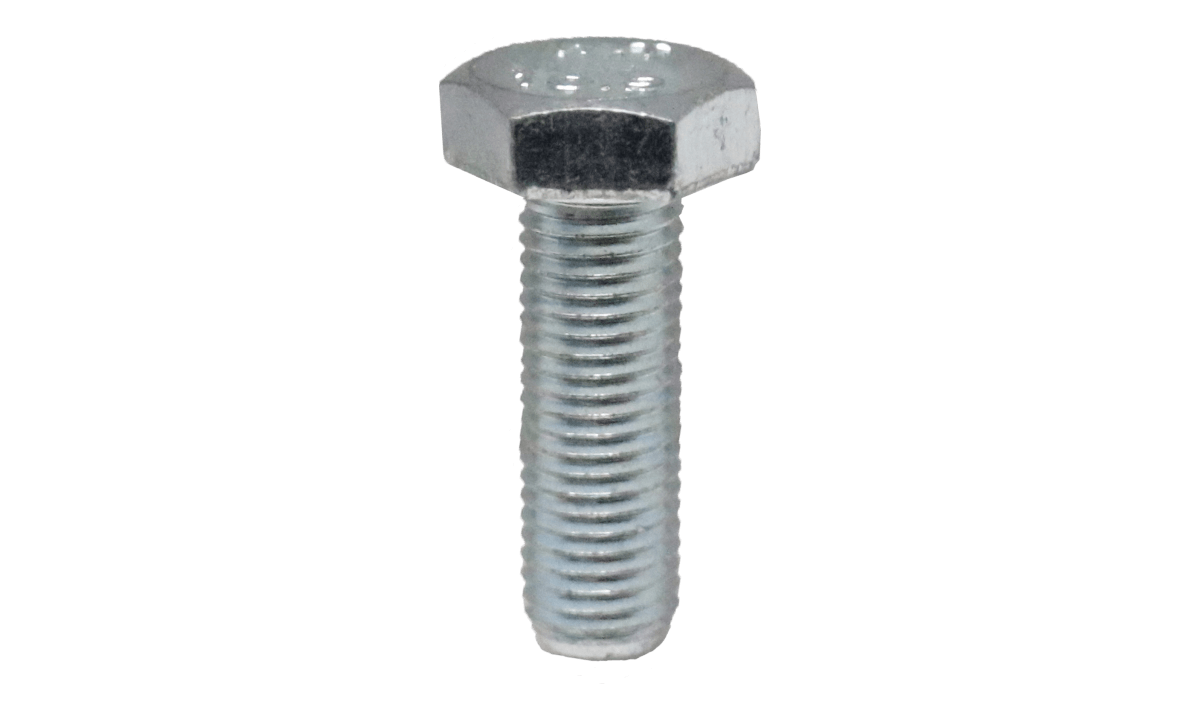

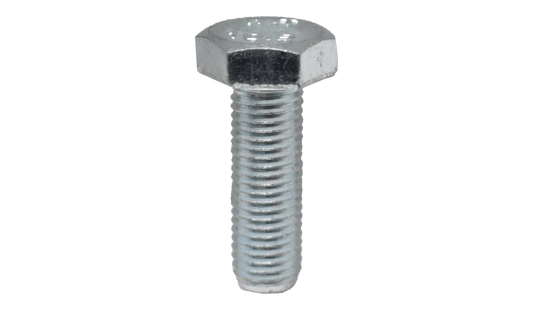

3#018-5301-00
M10x1.25x30MM 8.8 Hex Bolts
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
4#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
5#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
6#086-1202-19
2019 Relay Terminal
Qty Used: 8Regular price $23.34 USDRegular priceUnit price per
-
7#013-0054-00
1/4-20 Cage Nut
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
8#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
9#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
10#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
11#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
12#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
13#067-8090-00
71328-Expansion Tank CZT/ZT
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
14#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
15#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-
16#072-8066-00
1/2 Hose Clamp
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-
17#051-8063-00
3/8 Clear Hose PRICED PER FOOT
Qty Used: 1Regular price $2.64 USDRegular priceUnit price per
