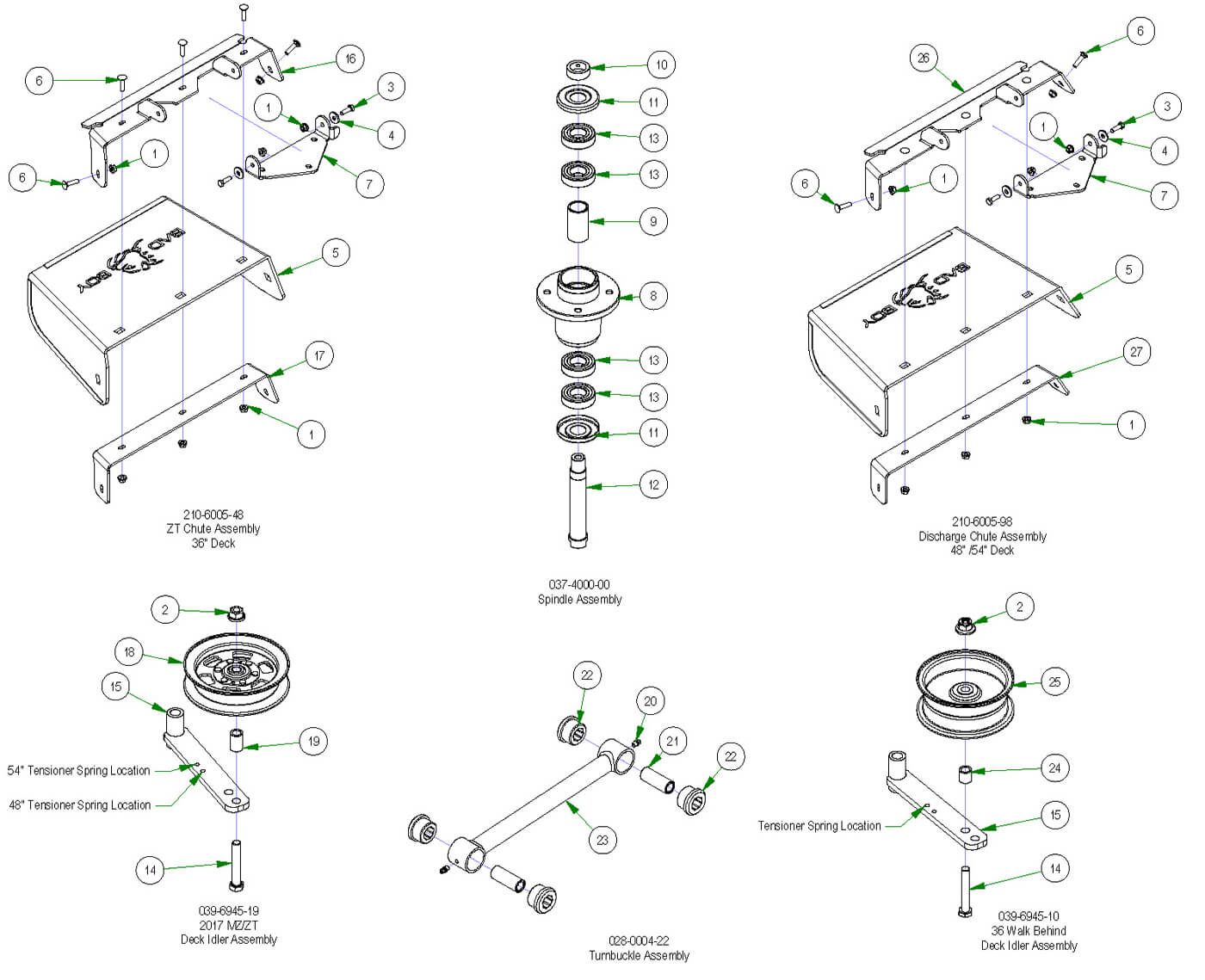

Deck Subassemblies
Parts Index
- 1 5/16-18 Nylon Flange Nut (Qty 14)
- 2 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 3 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 4)
- 4 .360 ID Plastic Washer (Qty 4)
- 5 Discharge Chute (Rubber Component) (Qty 2)
- 6 5/16-18 X 1-1/4 Carriage Bolt (Qty 10)
- 7 Discharge Chute Hanger-Deck (Qty 2)
- 8 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing (Qty 1)
- 9 2015 Spindle Spacer (Qty 1)
- 10 Collar Spacer - Top of Spindle (Qty 1)
- 11 Dust Cover for 037-8000-00 - (Qty 2)
- 12 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 13 OBSOLETE USE 037-6029-00 (Qty 4)
- 14 1/2-13 X 3 GR 5 Hex Bolts Zinc (Qty 2)
- 15 Idler Bracket (Qty 2)
- 16 48/52 Discharge Top Bracket (Qty 1)
- 17 48/52 Discharge Lower Bracket (Qty 1)
- 18 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 19 .502x.750x1.130 Length Spacer (Qty 1)
- 20 1/4-28 Threaded Grease Fitting (Qty 2)
- 21 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 22 2018 Maverick Topllink Bushing (Qty 4)
- 24 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 25 Double Bearing Flat Idler (Qty 1)
- 26 60 Discharge Chute Upper (Qty 1)
- 27 60 Discharge Chute Upper (Qty 1)
-
1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 14Regular price $0.79 USDRegular priceUnit price per
-
2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
3#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
4#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
5#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 2Regular price $55.99 USDRegular priceUnit price per
-
6#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 10Regular price $0.69 USDRegular priceUnit price per
-
7#206-6017-00
Discharge Chute Hanger-Deck
Qty Used: 2Regular price $36.48 USDRegular priceUnit price per
-

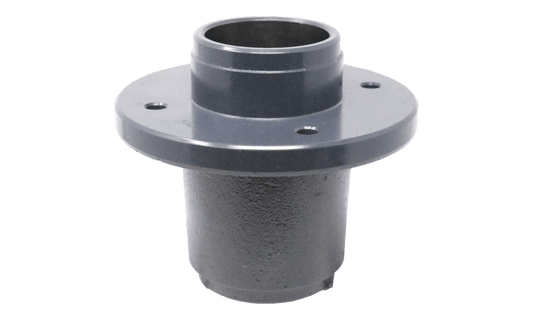

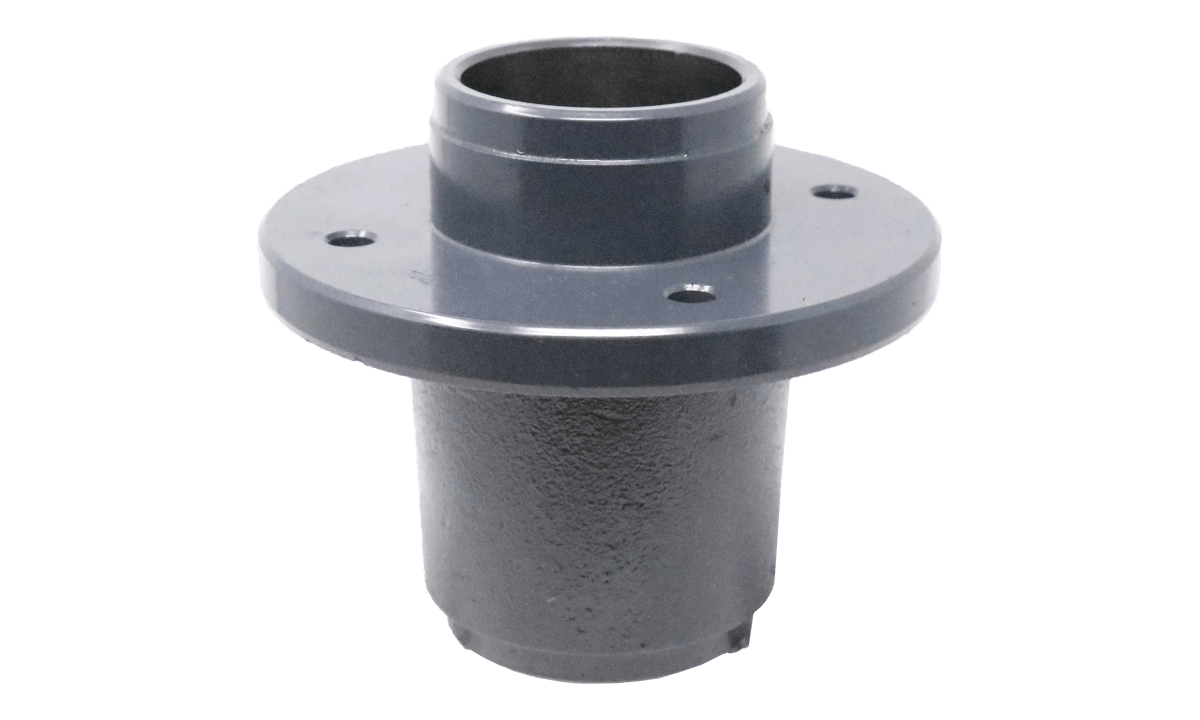

8#037-4000-01
2017 Outlaw/XP/Diesel Cast Iron Spindle Housing
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-

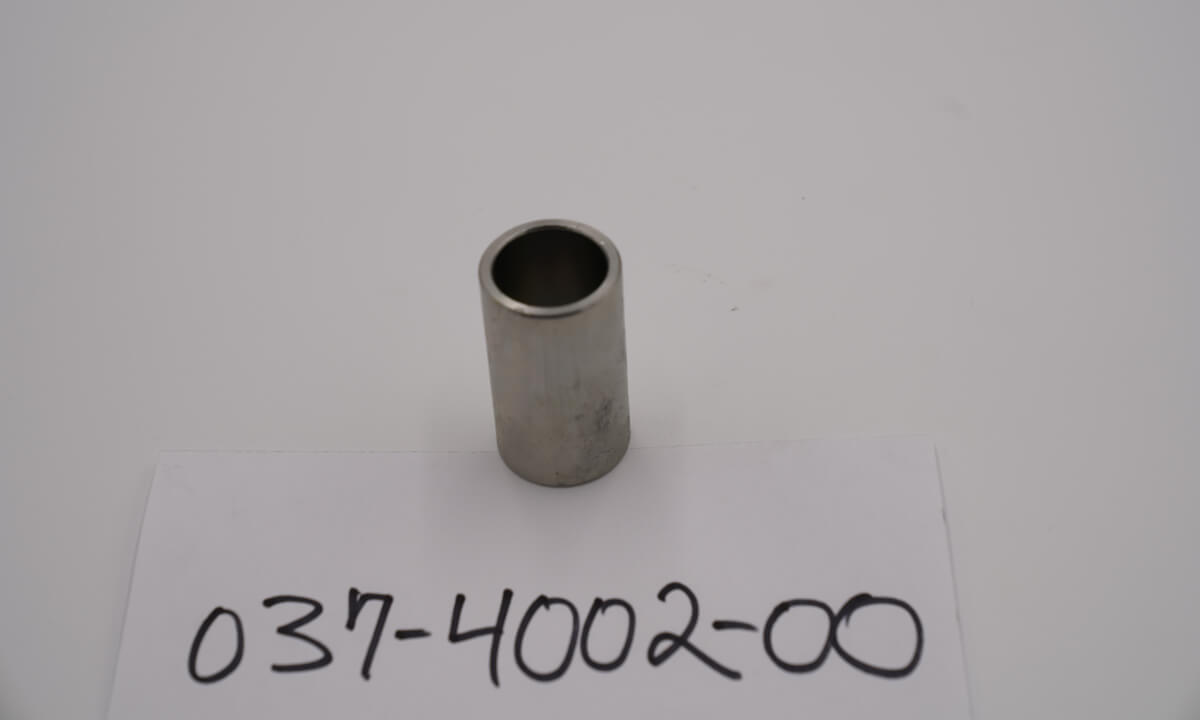

9#037-4002-00
2015 Spindle Spacer
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
10#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
11#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 2Regular price $10.99 USDRegular priceUnit price per
-
12#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
13#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 4Regular price $39.79 USDRegular priceUnit price per
-
14#018-7016-00
1/2-13 X 3 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
15#039-6945-00
Idler Bracket
Qty Used: 2Regular price $37.88 USDRegular priceUnit price per
-
16#039-4870-00
48/52 Discharge Top Bracket
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
17#039-4871-00
48/52 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
18#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
19#025-5337-00
.502x.750x1.130 Length Spacer
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
20#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 2Regular price $0.50 USDRegular priceUnit price per
-
21#048-6004-00
2018 Maverick Topllink Bushing Sleeve
Qty Used: 2Regular price $10.55 USDRegular priceUnit price per
-
22#048-6005-00
2018 Maverick Topllink Bushing
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
-
24#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
25#033-5000-00
Double Bearing Flat Idler
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
2627#039-4864-00
60 Discharge Chute Upper
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
